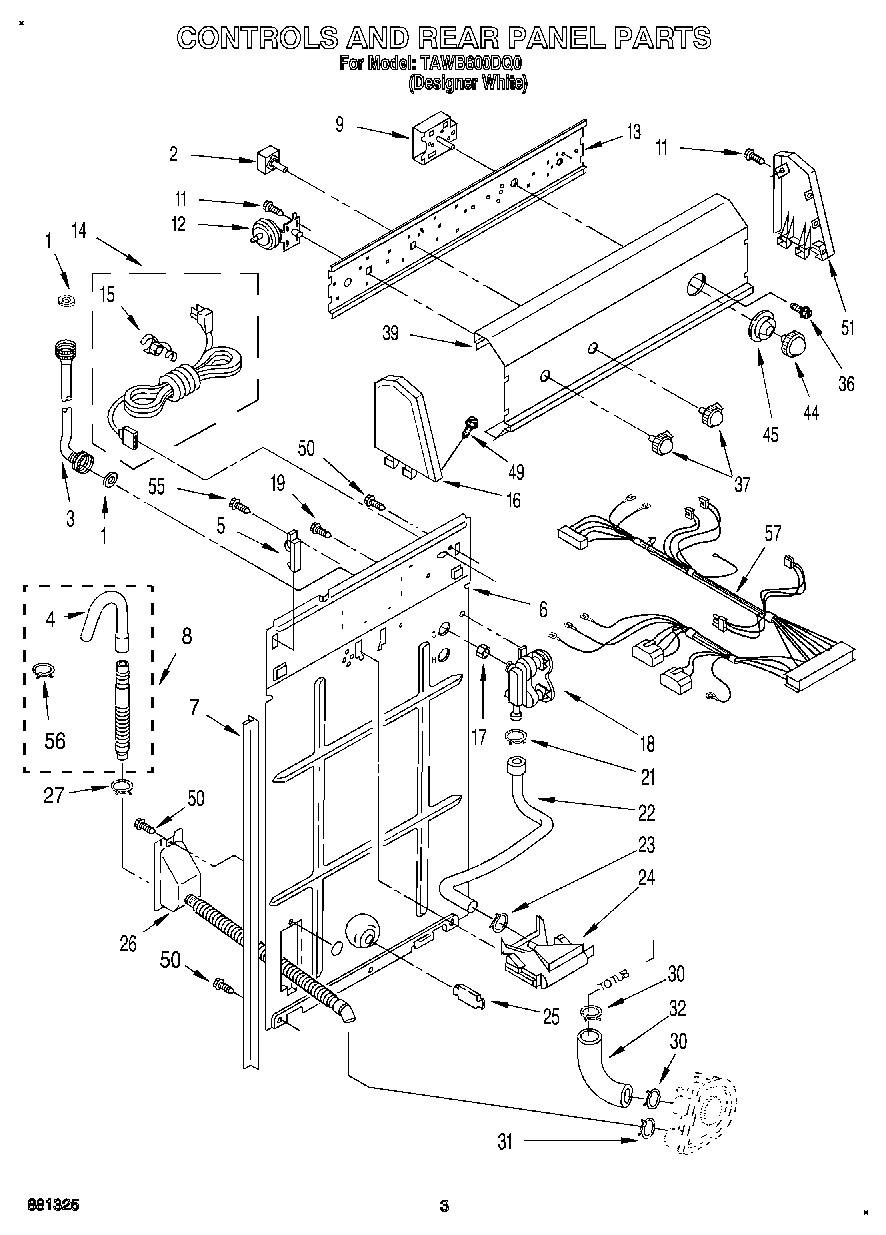

TAWB600DQ0 02 – CONTROLS AND REAR PANEL

TAWB600DQ0 02 – CONTROLS AND REAR PANEL

Written by

in

TAWB600DQ0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WPW10168256 Whirlpool Temperature Switch
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6Panel, Rear
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9285952 Whirlpool Timer Assembly
11WP90767 Whirlpool Screw
12WP3356467 Whirlpool Washer Water Level Switch
13Bracket, Control
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (White)
17WP96160 Whirlpool Washer Inlet Valve Screen
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
30WP371502 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
36WP356418 Whirlpool Screw
37Knob, Control (For Designer White Model)
39Panel, Console
44WPL 3392698
45WPL 3946339
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (R.H.) (White)
55WP308685 Whirlpool Microwave Screw
56WP3357331 Whirlpool Clamp
57Harness, Wiring (For Detail See Wiring Harness Parts Page.) Also See Clips.
