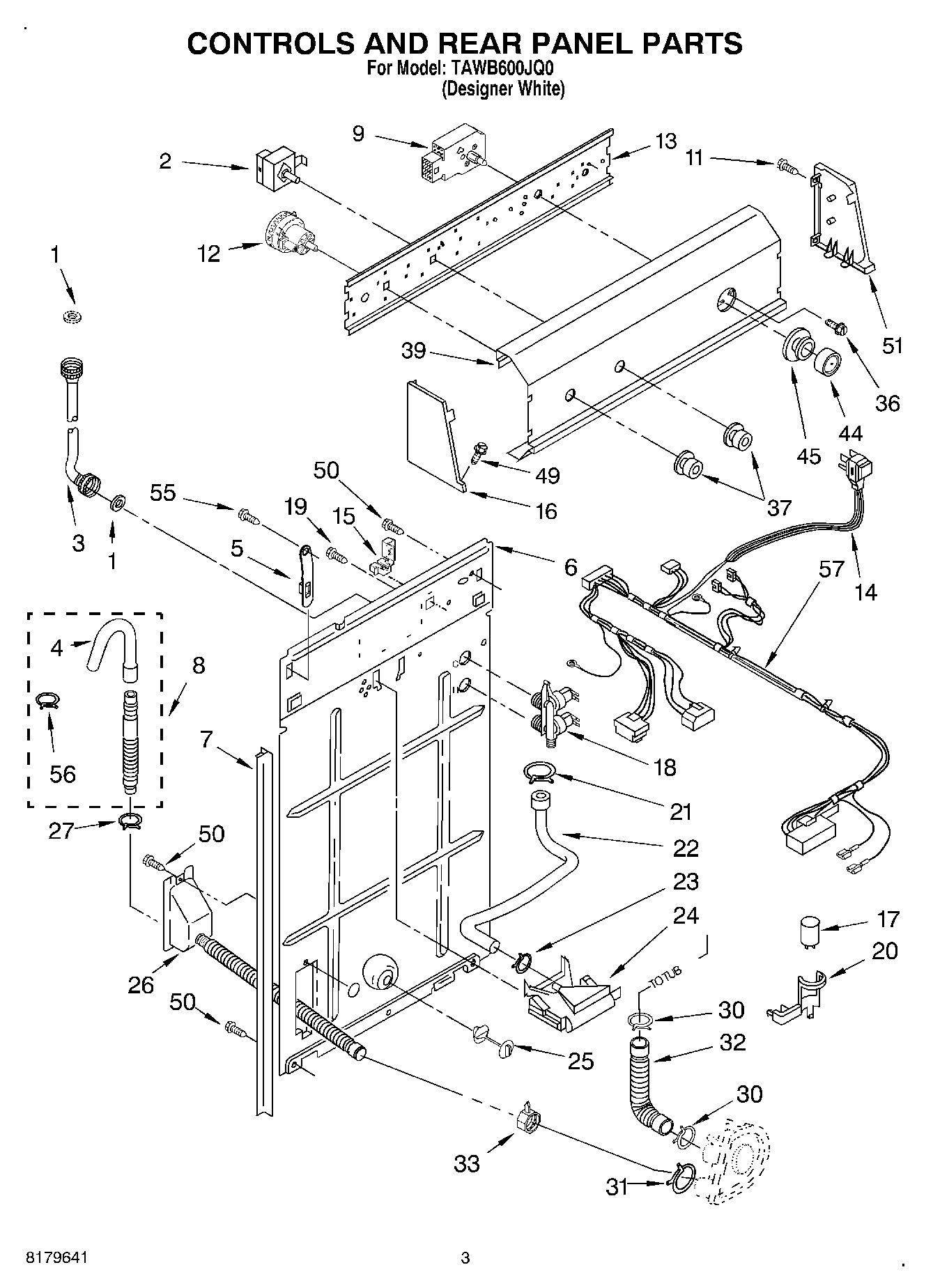

TAWB600JQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WPW10168256 Whirlpool Temperature Switch
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	CAPACITOR
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clamp, Hose
36	WP3400064 Whirlpool Screw
37	WP3957796 Whirlpool Knob
39	Panel, Console
44	WP3364293 Whirlpool Timer Knob
45	Dial, Timer
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	279960 Whirlpool Endcap Assembly
55	WP488729 Whirlpool Refrigerator Door Screw
56	WP3357331 Whirlpool Clamp
57	Harness, Wiring (Includes Power- Cord) (For Detail See Parts Page)
