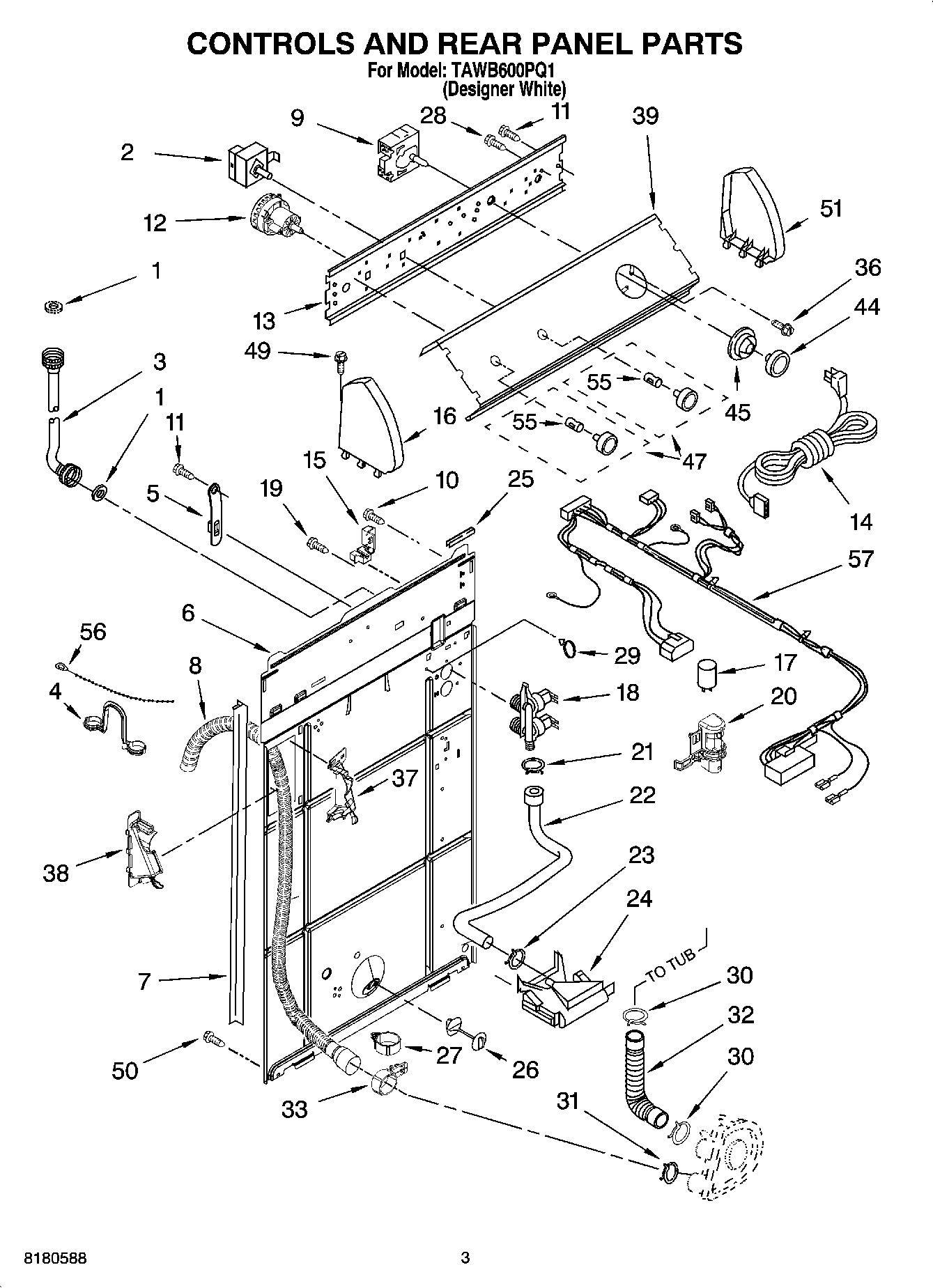

TAWB600PQ1 02 – CONTROL AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WPW10168256 Whirlpool Temperature Switch
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	Bracket, Control
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
17	CAPACITOR
18	285805 Whirlpool Washer Water Inlet Valve
19	WP9740848 Whirlpool Dishwasher Screw
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	3400073 Whirlpool Screw
29	8559320 Whirlpool Clip
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8541668 Whirlpool Washer Clamp
36	WP3400818 Whirlpool Screw
37	(Left Half)
38	(Right Half)
38	WPW10096921 Whirlpool Hose
39	Panel, Console
44	W10807860 Whirlpool White Control Knob
45	Dial, Timer
47	WP8557460 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	279960 Whirlpool Endcap Assembly
55	WP8536939 Whirlpool Spring Clip
56	WPW10339879 Whirlpool Wire Tie
57	Harness, Wiring (For Detail See Page 9 & 10)
