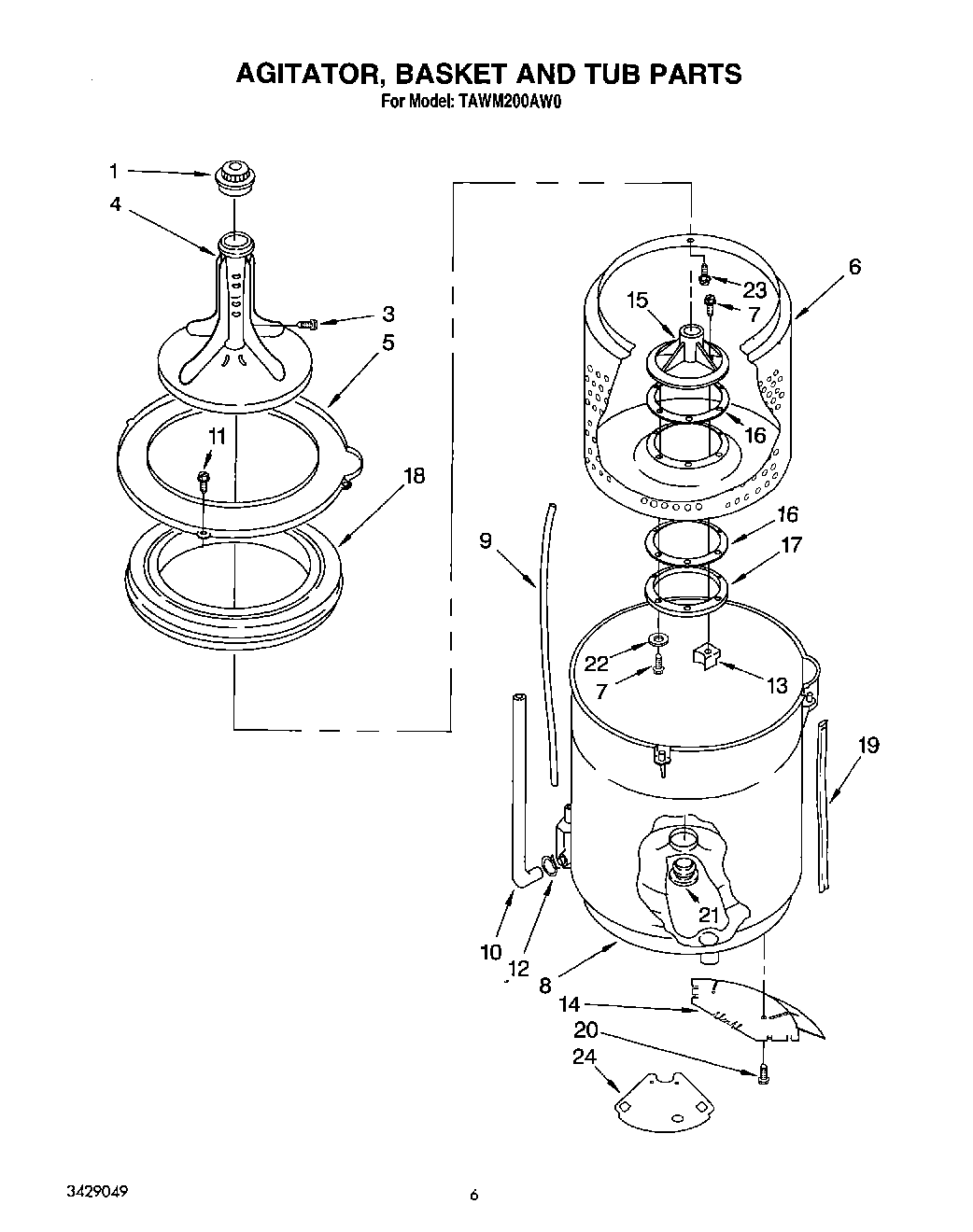

TAWM200AW0 04 – AGITATOR, BASKET, AND TUB

TAWM200AW0 04 – AGITATOR, BASKET, AND TUB

Written by

in

TAWM200AW0 04 – AGITATOR, BASKET, AND TUB

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
4	Agitator
5	Tub Ring
6	Basket
7	Screw
8	Tub
9	WP353244 Whirlpool Hose
10	Hose, Bleach
12	WP596669 Whirlpool Hose Clamp
13	Saddle Block
14	Shield, Tub/Motor
15	Hub, Drive
16	Gasket, Hub (2)
17	Clamp, Ring
18	Balance Ring
19	Hose, Tub Overflow
20	WP3400872 Whirlpool Screw
21	WP3968381 Whirlpool Tub Seal
22	Washer
23	Screw, Balance Ring (4)
24	Shield, Tub/Solenoid
