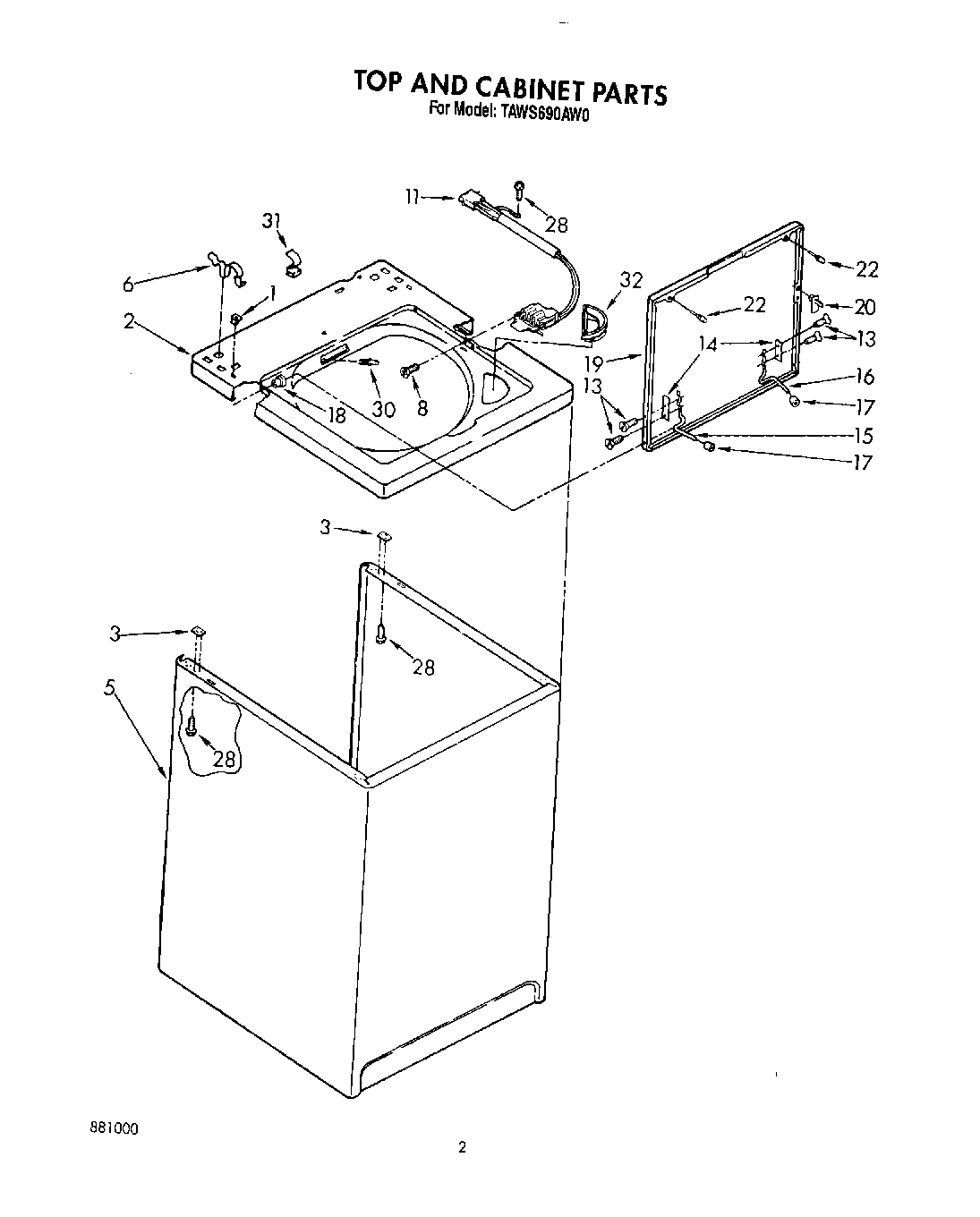

TAWS690AN0 02 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3358683
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	WPL 89121
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WPL LIT881000
	WP285195 Whirlpool Sealer Assembly
	Manual, (Washer) Do-It-Yourself
	WPL LIT3358743
	WPL LIT3358964
	WPL LIT3357465
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
	Almond (Uncut)
	350938 Whirlpool Spray Gun
	285320 Whirlpool Washer Siphon Break Kit
	Drain Protector (Not Included)
	350930 Whirlpool White Spray Paint
	799344 Whirlpool Refrigerator Paint
1	WP357213 Whirlpool Hinge Stopper
2	Top (For Almond Model)
2	Top (For White & Desinger White Models)
2	Top (Golden Harvest)
3	WP62750 Whirlpool Spacer
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Almond)
5	Cabinet (Golden Harvest)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
19	Lid (Golden Harvest)
19	Lid (Almond)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
32	WP3362952 Whirlpool Bezel
