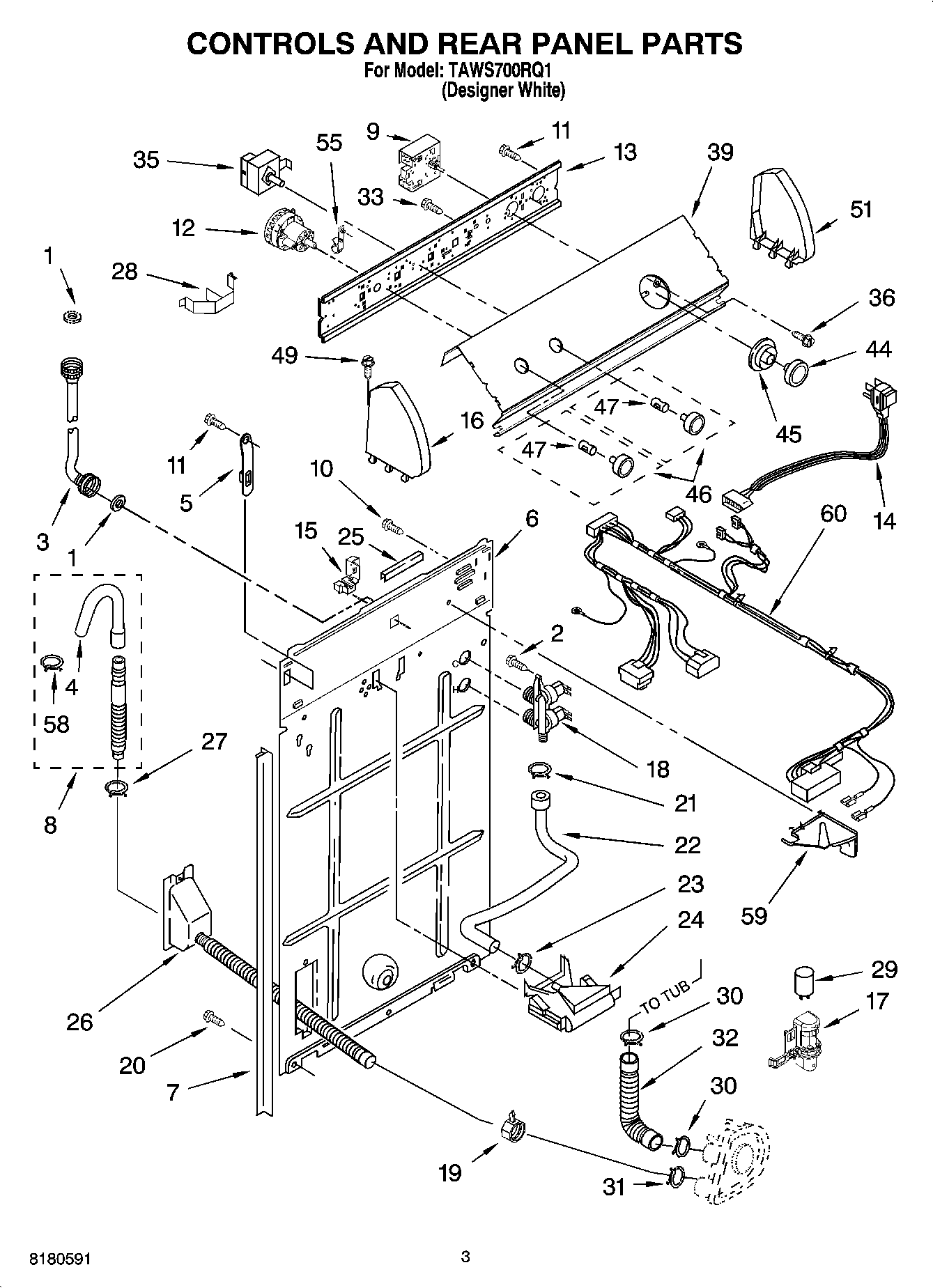

TAWS700RQ1 02 – CONTROLS AND REAR PANEL PARTS

TAWS700RQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
9WP8542050 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
17Clip, Capacitor
18285805 Whirlpool Washer Water Inlet Valve
19Clamp, Hose
20WP3390631 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Clip, Harness & Pressure Hose
29CAPACITOR
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
333400073 Whirlpool Screw
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
39Panel, Console
44W10807860 Whirlpool White Control Knob
45Dial, Timer
46WP8557460 Whirlpool Knob
47WP8536939 Whirlpool Spring Clip
49WP388326 Whirlpool Screw
51279960 Whirlpool Endcap Assembly
55Retainer, Harness
58WP3357331 Whirlpool Clamp
59WPL 8539874
60WPL 3956879
