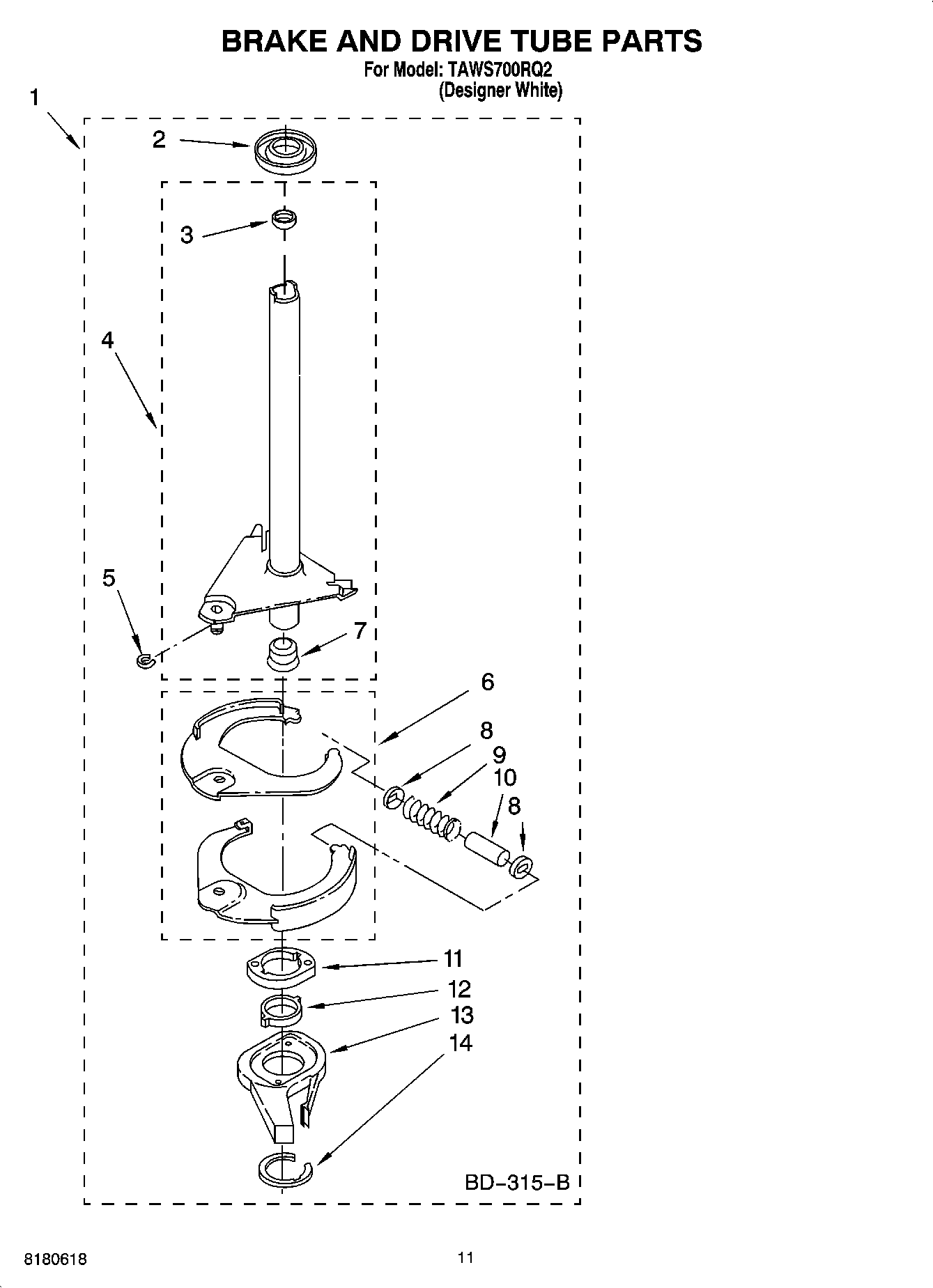

TAWS700RQ2 07 – BRAKE AND DRIVE TUBE PARTS

Products

Position	Product
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP62658 Whirlpool Seal Ring
3	WP356427 Whirlpool Shaft Seal
4	WP64208 Whirlpool Spin Tube
5	W10083190 Whirlpool Ring-E
6	285438 Whirlpool Brake Shoe
7	WP8546462 Whirlpool Bearing
8	285658 Whirlpool Sleeve Kit
9	Spring, Brake
11	WP8546461 Whirlpool Brake Cam Assembly
12	WP63022 Whirlpool Sleeve
13	285790 Whirlpool Washer Clutch Band and Lining Kit
14	WPW10083200 Whirlpool Wire Ring
14	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
14	Following Parts Not Illustrated
