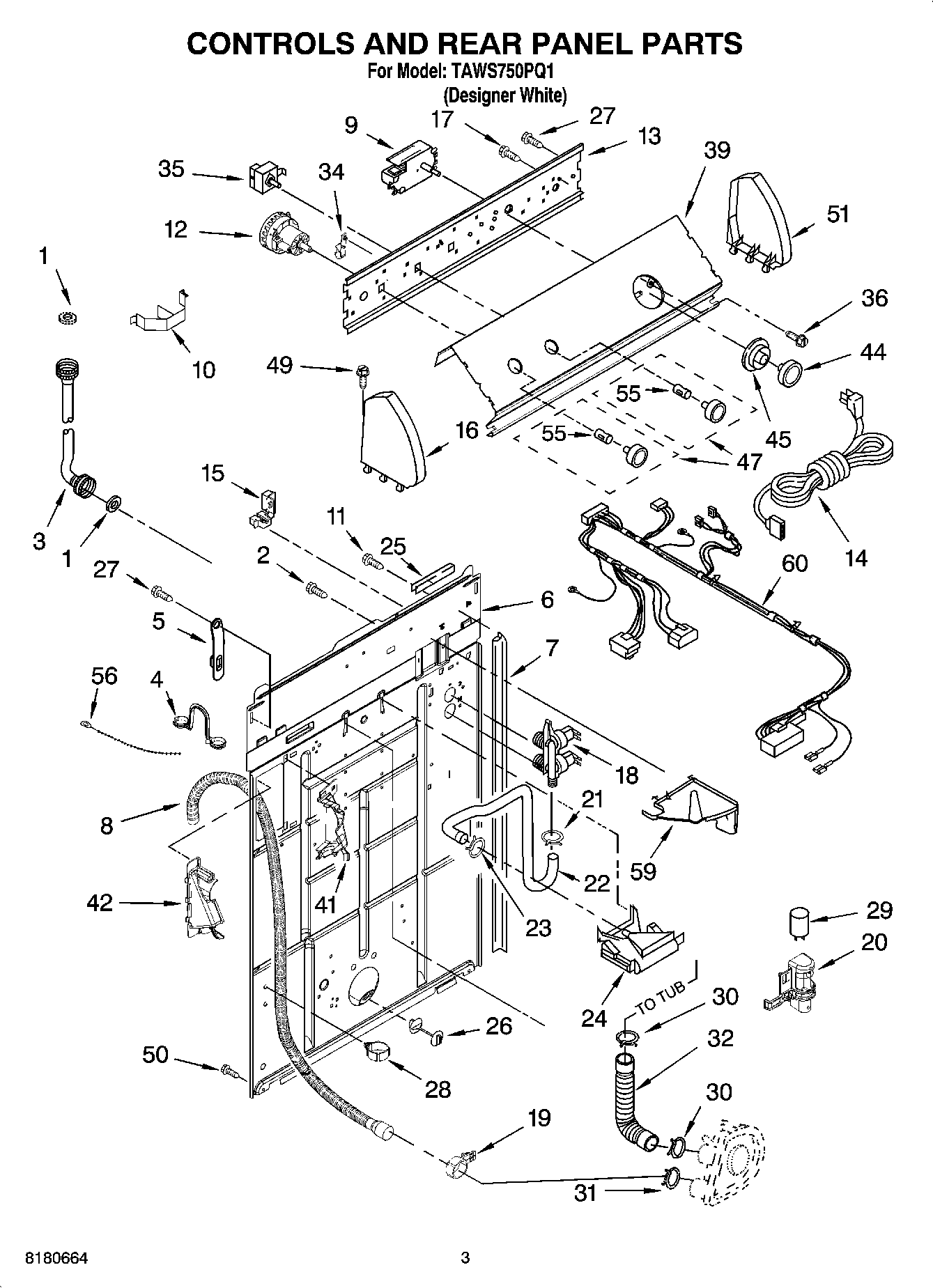

TAWS750PQ1 02 – CONTROLS AND REAR PANEL PARTS

TAWS750PQ1 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

TAWS750PQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8542050 Whirlpool Timer
10Clip, Harness & Pressure Hose
11WP3351614 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
173400073 Whirlpool Screw
18285805 Whirlpool Washer Water Inlet Valve
198541668 Whirlpool Washer Clamp
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26WP8519200 Whirlpool Support Assembly
27WP90767 Whirlpool Screw
28Clamp, Hose
29CAPACITOR
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
34Retainer, Harness
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
39Panel, Console
42WPW10096921 Whirlpool Hose
44W10807860 Whirlpool White Control Knob
45Dial, Timer
47WP8557460 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51279960 Whirlpool Endcap Assembly
55WP8536939 Whirlpool Spring Clip
56WPW10339879 Whirlpool Wire Tie
59WPL 8539874
60Harness, Wiring (For Detail See Page 9
