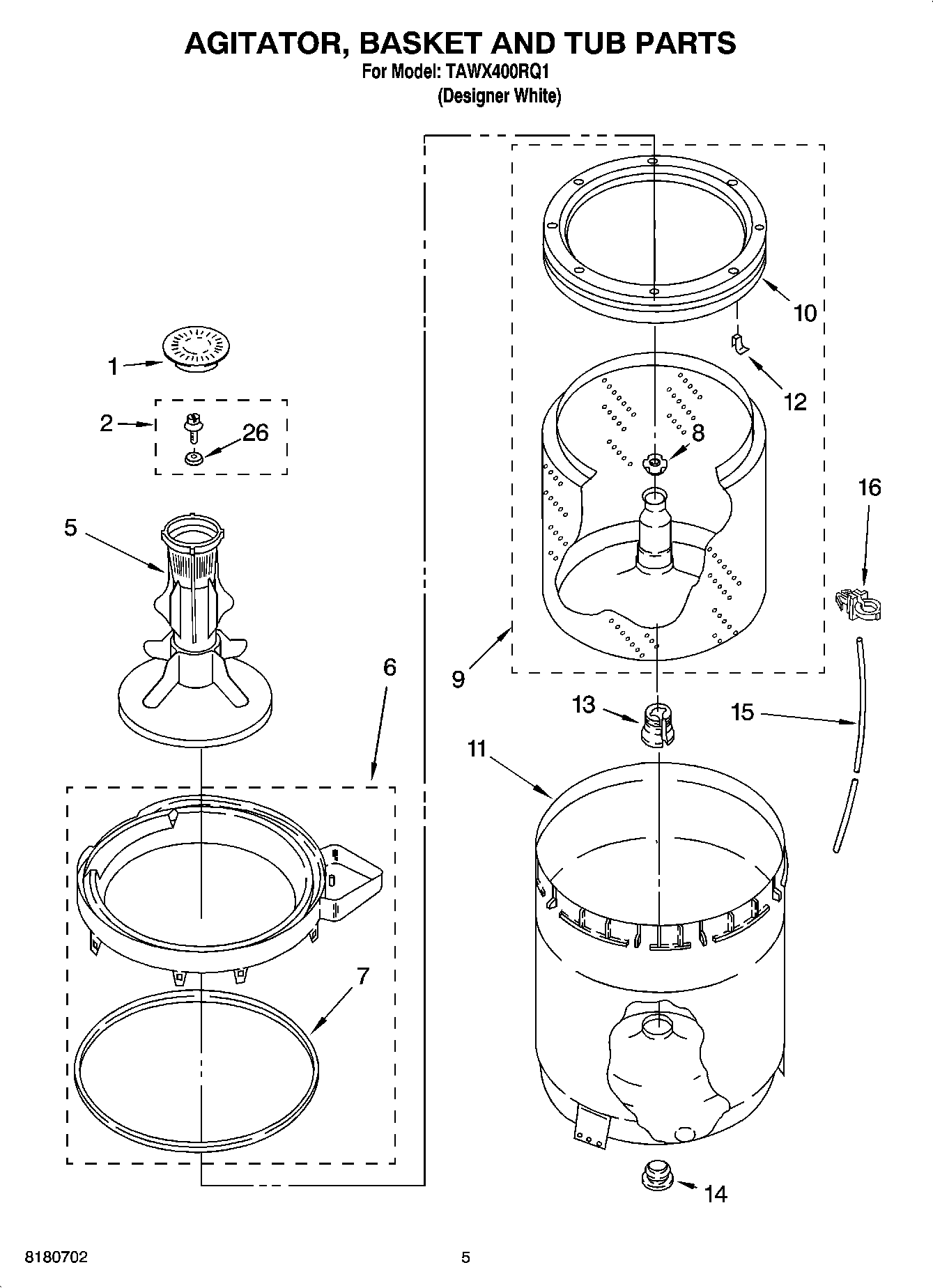

TAWX400RQ1 03 – AGITATOR, BASKET AND TUB PARTS

TAWX400RQ1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

TAWX400RQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3352483 Whirlpool Cap
2WP358237 Whirlpool Agitator Bolt
5AGITATOR
6Tub Ring & Gasket Assembly
7WP3359586 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9Basket & Balance Ring
10WP3956205 Whirlpool Balance Ring
11Tub
12WP8519815 Whirlpool Washer Balance Ring Clip
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
162219077 Whirlpool Refrigerator Clip
26WP3949550 Whirlpool Gasket Assembly
