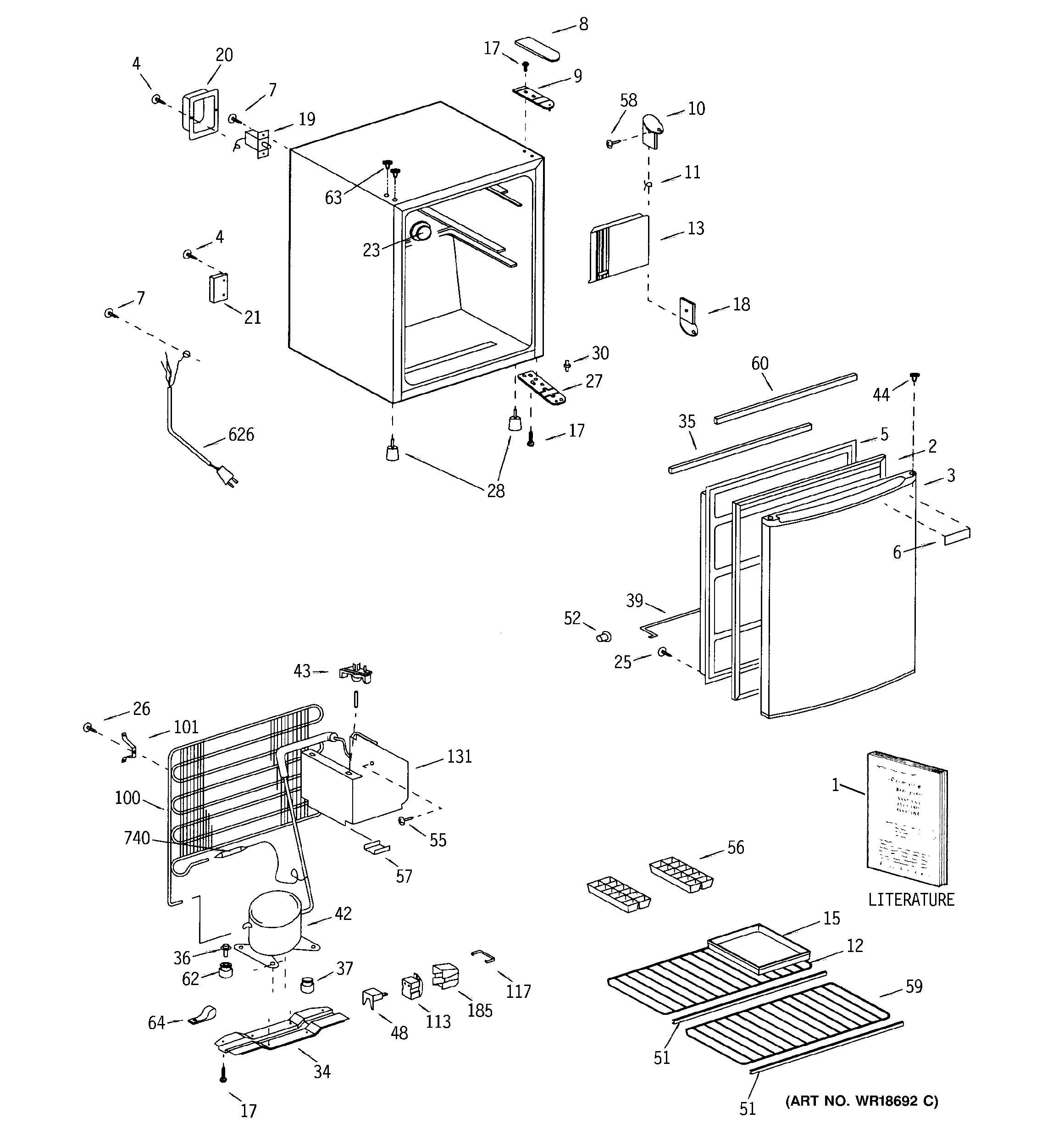

| 1 | TECHNICAL DATA SHEET |
| 1 | GEN 49-60041 |
| 2 | GEN WR24X0565 |
| 3 | GEN WR78X10087 |
| 4 | GEN WR01X5668 |
| 5 | GEN WR77X0696 |
| 6 | GEN WR04X10015 |
| 7 | SCREW |
| 8 | COVER HINGE TOP WH |
| 9 | GEN WR13X10010 |
| 10 | EVAP. DOOR HINGE UPPER |
| 11 | SPRING EVAP DOOR |
| 12 | GEN WR71X2733 |
| 13 | GEN WR37X5045 |
| 15 | GEN WR31X0156 |
| 17 | BOLT |
| 18 | EVAP. DOOR HINGE LOWER |
| 19 | GEN WR09X0498 |
| 20 | GEN WR02X8493 |
| 21 | GEN WR01X1812 |
| 23 | GEN WR02X7798 |
| 25 | GEN WR01X10152 |
| 26 | GEN WR01X10023 |
| 27 | GEN WR13X10067 |
| 28 | GEN WR02X10161 |
| 30 | GEN WR02X10405 |
| 34 | GEN WR17X10140 |
| 35 | GEN WR17X4278 |
| 36 | GEN WR01X10153 |
| 37 | GEN WR02X10406 |
| 39 | GEN WR17X3329 |
| 42 | OVEN ASSEMBLY |
| 43 | BRACKET EVAP. W/PIN |
| 44 | GEN WR02X10119 |
| 48 | GEN WR08X10007 |
| 51 | GEN WR38X2273 |
| 52 | GEN WR02X7802 |
| 55 | GEN WR01X5677 |
| 56 | TRAY ICE |
| 57 | GEN WR01X5769 |
| 58 | GEN WR01X10024 |
| 59 | GEN WR71X2734 |
| 60 | GEN WR17X4277 |
| 62 | GEN WR02X10407 |
| 63 | GEN WR02X10122 |
| 64 | GEN WR01X1818 |
| 100 | GEN WR84X0126 |
| 101 | GEN WR01X5676 |
| 113 | GEN WR07X10022 |
| 117 | GEN WR02X8491 |
| 131 | GEN WR85X0324 |
| 185 | GEN WR02X10164 |
| 626 | WR23X10300 GE Refrigerator Power Cord Assembly |
| 740 | WR86X25269 GE Refrigerator R134 Dryer |
