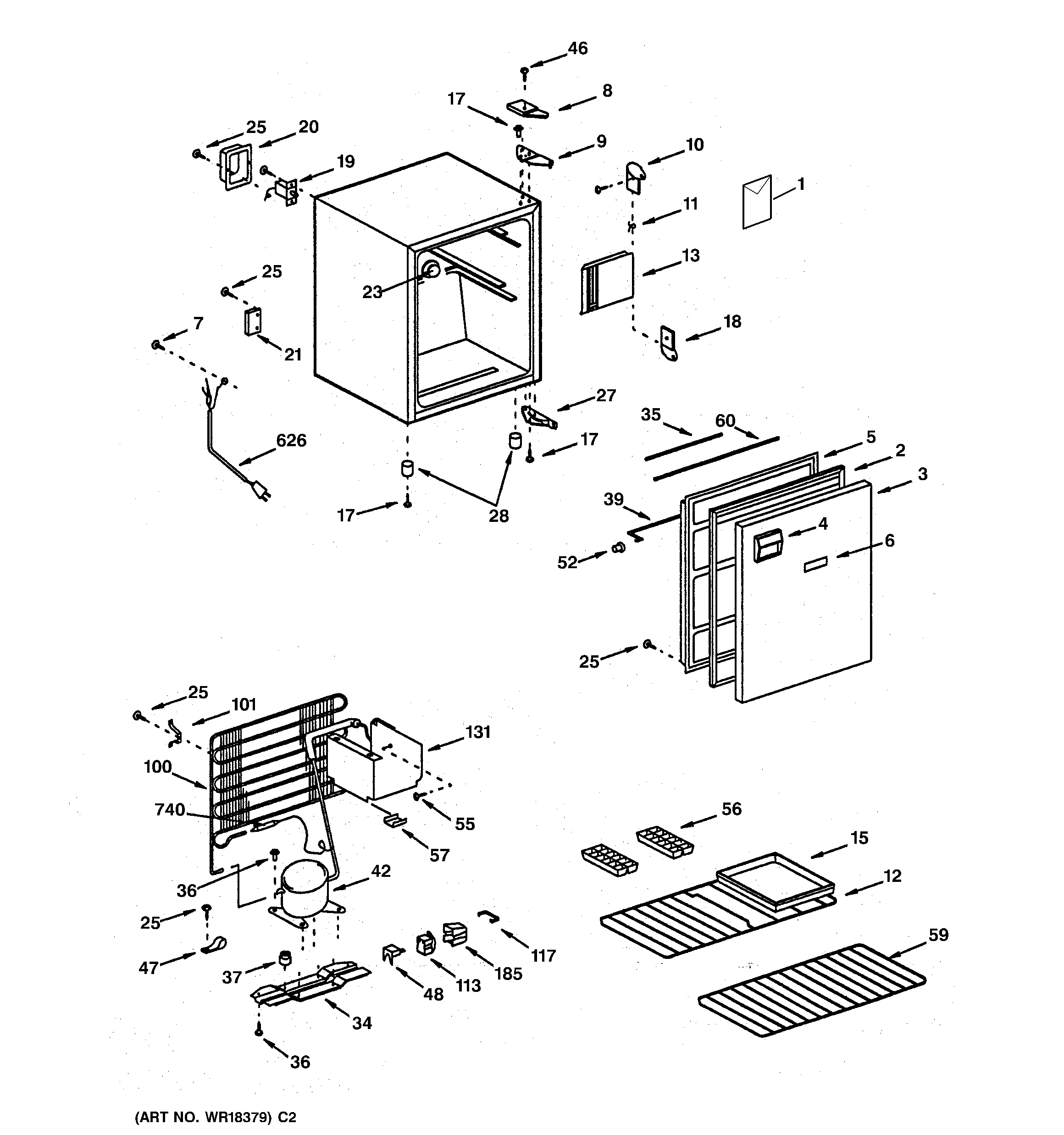

| 1 | TECHNICAL DATA SHEET |
| 1 | OWNERS GUIDE |
| 2 | GEN WR24X0565 |
| 3 | GEN WR78X8715 |
| 4 | GEN WR12X0822 |
| 5 | PANEL INNER DOOR |
| 6 | GEN WR04X0190 |
| 7 | SCREW |
| 8 | GEN WR02X8490 |
| 9 | GEN WR13X5214 |
| 10 | EVAP. DOOR HINGE UPPER |
| 11 | SPRING EVAP DOOR |
| 12 | GEN WR71X2411 |
| 13 | GEN WR37X5045 |
| 15 | GEN WR31X5028 |
| 17 | BOLT |
| 18 | EVAP. DOOR HINGE LOWER |
| 19 | GEN WR09X0498 |
| 20 | GEN WR02X8493 |
| 21 | GEN WR01X1812 |
| 23 | GEN WR02X8289 |
| 25 | GEN WR01X5668 |
| 27 | HINGE BOTTOM |
| 28 | GEN WR02X7799 |
| 34 | GEN WR17X3373 |
| 35 | GEN WR17X6377 |
| 36 | GEN WR01X5674 |
| 37 | GEN WR02X7800 |
| 39 | GEN WR17X3329 |
| 42 | OVEN ASSEMBLY |
| 46 | SCREW HINGE COVER |
| 47 | GEN WR01X2076 |
| 48 | GEN WR08X0115 |
| 52 | GEN WR02X7803 |
| 55 | GEN WR01X5677 |
| 56 | TRAY ICE |
| 57 | GEN WR01X5769 |
| 59 | SHELF |
| 60 | GUARD |
| 100 | GEN WR84X0126 |
| 101 | GEN WR01X5676 |
| 113 | GEN WR07X5149 |
| 117 | GEN WR02X8491 |
| 131 | GEN WR85X0230 |
| 185 | GEN WR02X8492 |
| 626 | WR23X10300 GE Refrigerator Power Cord Assembly |
| 740 | WR86X25269 GE Refrigerator R134 Dryer |
