TB12SCBL

TB12SCBL

Written by

in

TB12SCBL

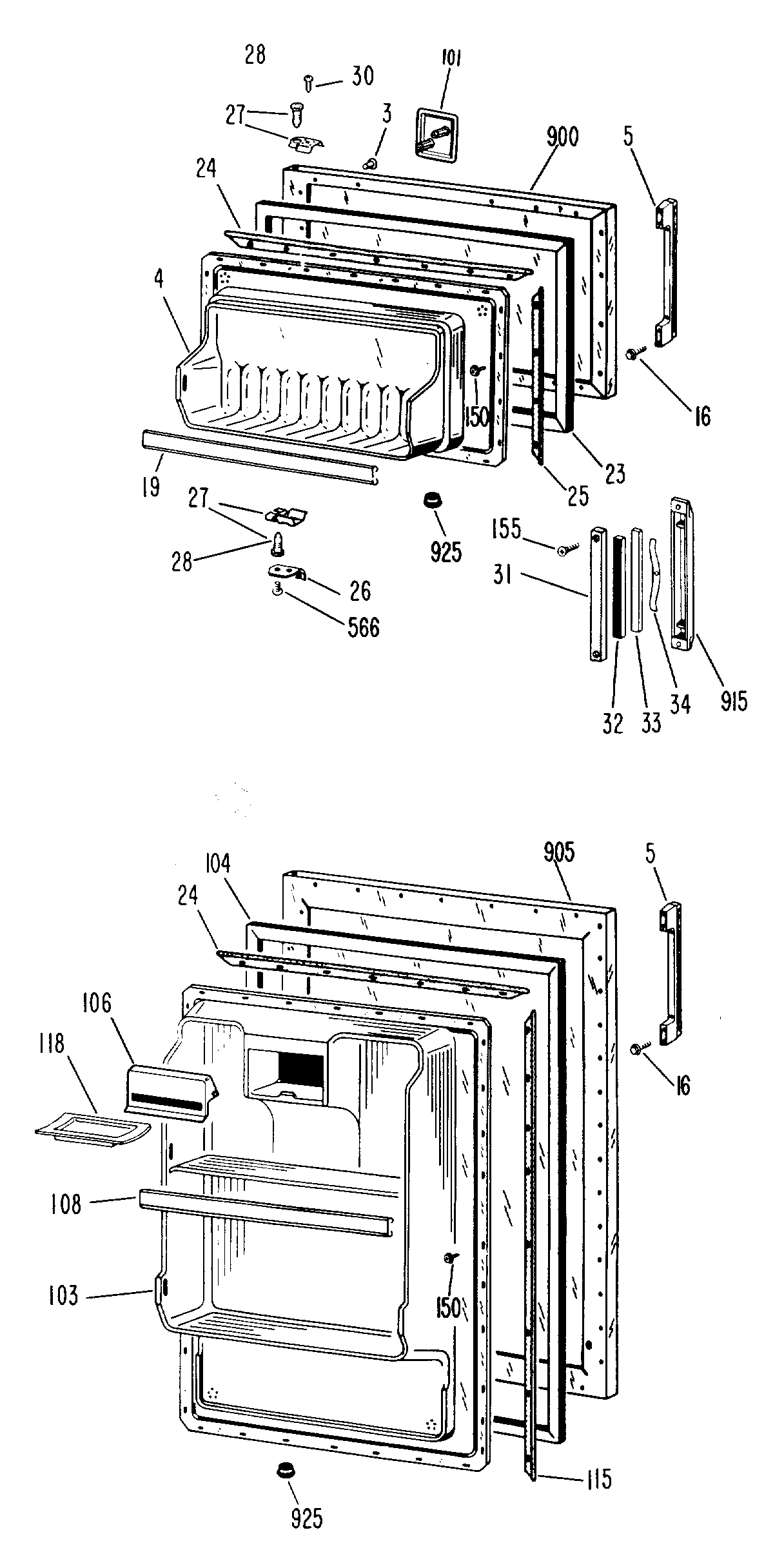

Products

Position	Product
3	GEN WR02X3757
4	GEN WR02X4741
4	GEN WR02X7093
4	GEN WR77X0380
5	GEN WR12X0514
5	GEN WZ04X0336
16	GEN WZ06X0112
19	GEN WR71X1622
23	GEN WR24X0283
24	GEN WR02X4622
25	GEN WR17X1371
26	GEN WR02X4920
27	GEN WR01X1561
28	GEN WR02X6278
30	SCREW
31	GEN WR11X0150
32	GEN WR11X0151
33	GEN WR11X0152
34	GEN WR11X0122
101	GEN WR03X0408
102	GEN WR02X4990
103	GEN WR77X0381
104	GEN WR24X0282
106	GEN WR22X0255
108	GEN WR71X1623
115	GEN WR17X1372
118	GEN WR19X5003
150	SCREW SW. CRADLE
155	GEN WZ04X0324
176	GEN WZ05X0166
201	FOAM STRIP
201	BACKPLATE & TAPE ASM
202	COVER LINER BACK
203	MULLION CROSSPIECE
204	SUPPORT LINER-R.S.
205	SUPPORT LINER-L.S.
213	WR30X311 GE Refrigerator Ice Tray
219	HEATER MULLION
221	BUTTON PLUG
222	GROMMET DOOR STOP
228	SHELF ASM STATIONARY
229	SUPPORT TWIST
230	SUPPORT SHELF
231	GEN WR02X4823
240	GEN WR32X0730
242	COVER PAN
254	SLIDE PAN
255	GEN WR03X0399
256	SWITCH POWER SAVER
257	SCR 6-32 D TR 3/8 SS
267	GEN WR82X0249
268	GEN WR17X5988
275	HINGE TOP & PIN ASM
276	NUTSTRIP TOP HINGE
278	LEVELING LEG
279	GEN WR13X0441
281	GEN WR01X1114
281	GEN WR01X1355
282	HINGE BTM & PIN ASM
283	NUTSTRIP BTM HINGE
289	GRILLE O.CASE
291	GROMMET-GRILLE
292	CLIP
292	GEN WR01X1326
295	PLUG BUTTON TWIN
296	GEN WR02X3890
300	CONTROL TEMP
301	KNOB TEMP CONT
301	GEN WZ04X0407
301	GEN WR02X4893
302	PLATE STRIKE
312	TUBE DRAIN
313	GEN WR02X3747
313	TROUGH DRAIN
422	GEN WR01X1332
435	SOCKET LAMP
450	GEN WR02X4194
451	GEN WR02X6281
452	GEN WR02X7011
452	SHIM HINGE BTM.
455	BREAKER STRIP BTM
456	CLIP BRKR STRIP & FRAME
456	BREAKER STRIP-HINGE SIDE
457	BREAKER STRIP-LATCH SIDE
458	BREAKER FRAME & MULLION
459	BREAKER STRIP SIDE FZ
462	PLUG RECESSED
551	GEN WZ04X0244
555	RIVET POP
560	GEN WR01X1249
561	SCR 12-24 HXW 7/8 S PP
563	WZ4X241D GE Screw Package
564	GEN WR01X1194
564	GEN WR01X1122
566	GEN WR01X1487
568	SCREW
569	RIVET POP
603	WR1X1591 GE Refrigerator Screw
603	SCR 10-24 SPEC DRILL PT
604	PAN EVAP DRAIN ASM
604	GEN WR14X0275
609	SWITCH LIGHT
611	SUPPORT TWIST-COIL
612	SUPPORT TWIST-COIL
616	BRACKET EVAP MTG FF
626	WR23X10300 GE Refrigerator Power Cord Assembly
626	WR1X5278 GE Refrigerator Cable Clamp
626	CLAMP POWER CORD
630	WR2X4097 GE Button Plug
632	GEN WR51X0084
633	CLAMP HTR
634	CLAMP HTR
636	RETAINER HTR
640	CUP COMP & BOLT ASM
644	TONGUE ASM
644	GEN WR02X2375
676	WD2X5166 GE Dishwasher Screw
679	SCR 12-14B HXW 5/8 S DP
679	SCR 8-18 AB HX 3/8 S
680	SCR 8-18 AB HX 1/2S W
686	WZ5X158D GE Screw Package of 12
688	SCR 8-15 A PA 3/4 SS
698	GEN WX04X0261
725	GEN WR87X0039
726	REFRIGERANT 6 OZ.
726	MACHINE LOW SIDE
730	GEN WR84X0016
733	RELAY COMP
734	GEN WR02X3583
734	COVER RELAY
735	GEN WR08X0030
736	GEN WR01X1650
737	SLEEVE COMP MTG
738	NUT MACH
739	CLIP COND UPPER
740	WR86X25269 GE Refrigerator R134 Dryer
750	GEN WR82X0177
900	GEN WR78X7236
901	GEN WR78X7237
904	GEN WR78X7238
905	GEN WR78X7059
906	GEN WR78X4951
909	GEN WR78X4953
915	GEN WR11X0153
915	GEN WR11X0146
915	GEN WR11X0156
925	GEN WR02X7055
926	GEN WR02X7056
929	GEN WR02X7059
9999	GEN 49-6309
