TB14SBSR

TB14SBSR

Written by

in

TB14SBSR

Products

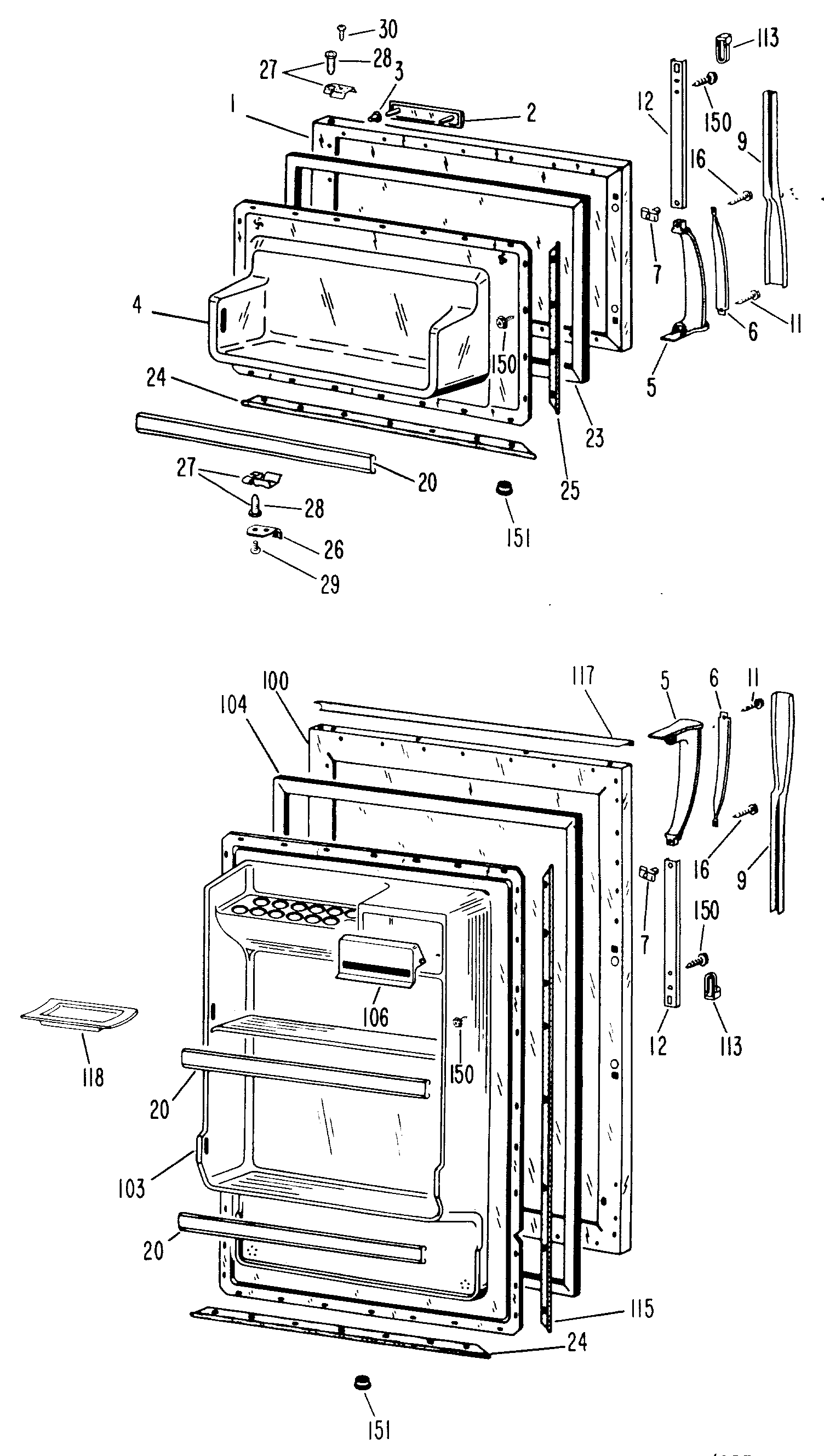

Position	Product
2	GEN WR03X0395
3	GEN WR02X3757
4	GEN WR02X7093
4	GEN WR77X0382
4	GEN WR02X4741
5	GEN WR12X0451
6	GEN WR12X0452
7	GEN WR01X1246
9	GEN WR12X0332
11	GEN WZ04X0358
12	GEN WR12X0442
16	GEN WZ05X0227
20	GEN WR71X1440
23	GEN WR24X0285
24	GEN WR02X3309
25	GEN WR02X2146
26	GEN WR02X4920
27	GEN WR01X1561
28	GEN WR02X6278
30	SCREW
102	GEN WR02X4990
103	GEN WR77X0410
104	GEN WR24X0284
106	GEN WR22X0255
113	GEN WR12X0320
115	GEN WR02X2100
117	GEN WR38X0975
118	GEN WR19X5003
150	SCREW SW. CRADLE
202	GEN WR17X1115
203	MULLION CROSSPIECE
204	SCR 1/4-14 AB HXW 7/8 S
211	GEN WR02X3484
212	GEN WR71X1267
213	WR30X311 GE Refrigerator Ice Tray
219	HEATER MULLION ASM
222	GEN WR38X0932
222	GROMMET DOOR STOP
228	SHELF ASM FF
229	SUPPORT TWIST
230	SUPPORT SHELF
240	GEN WR32X0727
241	HANDLE PAN
242	COVER PAN
246	SUPPORT PAN COVER-SIDE REAR
247	SUPPORT TWIST -SIDEFRONT
248	SUPPORT TWIST PAN CVR
251	SUPPORT TWIST PAN CVR
255	GEN WR03X0399
256	SWITCH POWER SAVER
257	SCR 6-32 D TR 3/8 SS
265	GEN WR01X1326
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
272	COVER TUBE SEAL
274	BAFFLE AIR EXTN BTM
275	HINGE TOP & PIN ASM
276	NUTSTRIP TOP HINGE
277	GEN WR17X1563
278	LEVELING LEG
279	HINGE CENTER-RH CAB.
280	NUTSTRIP-CTR HINGE
281	GEN WR01X1114
281	GEN WR01X1355
282	HINGE BTM & PIN ASM
286	BAFFLE AIR COND FAN
288	GEN WR74X0153
288	GEN WR02X7080
289	GEN WR02X7077
290	GEN WR02X7078
291	GEN WR74X0154
300	CONTROL TEMP
301	KNOB TEMP CONT
301	GEN WZ04X0407
312	TUBE DRAIN
313	TROUGH DRAIN
313	GEN WR02X3747
435	SOCKET LAMP
450	GEN WR02X4194
451	GEN WR02X2969
452	GEN WR02X7011
452	SHIM HINGE BTM.
453	NUT STRIP
454	CLIP BREAKER
455	BREAKER STRIP BTM
456	GEN WR40X1582
456	CLIP BRKR STRIP & FRAME
457	BRKR STR1P-LATCH-RH CAB.
458	BREAKER FRAME & MULLION
551	GEN WZ04X0244
553	SCR 12-24 HXW 7/8 S PP
560	GEN WR01X1249
564	SCR 6-20 AB TR 3/8 SS
564	GEN WR01X1194
566	GEN WR01X1487
568	SCREW
569	RIVET POP
603	WR1X1591 GE Refrigerator Screw
604	PAN EVAP DRAIN ASM
605	GEN WR02X4954
606	GEN WR02X7132
609	SWITCH LIGHT
611	SUPPORT TWIST-COIL
612	SUPPORT TWIST-COIL
613	GEN WR02X4893
616	BRACKET EVAP MTG
626	WR23X10300 GE Refrigerator Power Cord Assembly
626	WR1X5278 GE Refrigerator Cable Clamp
629	COVER LINER BACK
630	WR2X4097 GE Button Plug
632	RETAINER HTR
632	GEN WR51X0173
633	CLAMP HTR
634	CLAMP HTR
644	GEN WR02X2375
645	EXT COMP MTG
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR02X4191
653	GEN WR01X1515
654	BRACKET COND FAN
675	SCR 8-18 AB TR 5/8SS PLW
676	WD2X5166 GE Dishwasher Screw
680	SCR 8-18 AB HX 1/2S W
682	SCR 8-36 T HX 7/16 S XTW
683	SCREW FAN MTR/BRKT
686	WZ5X158D GE Screw Package of 12
696	SCREW
725	GEN WR87X0031
726	GEN WR85X0051
726	REFRIGERANT 6 OZ.
730	GEN WR84X0033
731	CLIP COND
732	CUP & BRACKET ASM-R. SIDE
732	CUP & BRACKET ASM-L. SIDE
733	GEN WR07X0104
734	COVER RELAY
734	GEN WR02X3583
735	GEN WR08X0043
737	SLEEVE COMP MTG
740	WR86X25269 GE Refrigerator R134 Dryer
900	GEN WR78X7029
900	GEN WR78X7031
900	GEN WR78X7061
900	GEN WR78X7060
900	GEN WR78X7035
900	GEN WR78X7033
905	GEN WR78X7063
905	GEN WR78X7041
905	GEN WR78X7043
905	GEN WR78X7062
905	GEN WR78X7037
905	GEN WR78X7039
910	GEN WR02X7059
910	GEN WR02X7055
910	GEN WR02X7056
9999	GEN 49-6302
