TBF17DCCR

TBF17DCCR

Written by

in

TBF17DCCR

Products

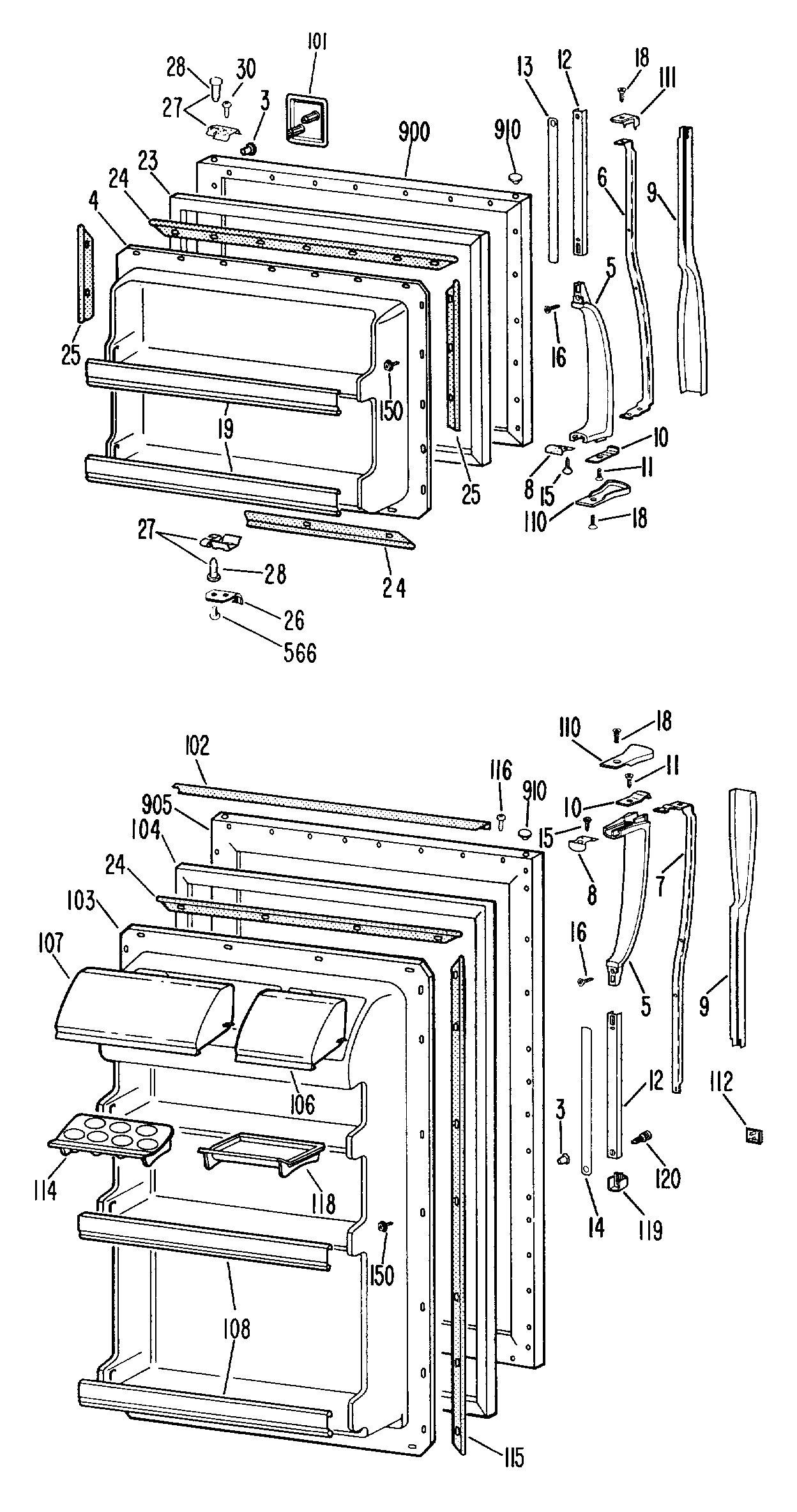

Position	Product
3	GEN WR02X3757
4	GEN WR77X0402
5	GEN WR12X0463
6	GEN WR12X0468
7	GEN WR12X0469
8	GEN WR02X4924
9	GEN WR12X0509
10	GEN WR02X7140
11	SCREW 8-18 B 7/16
12	GEN WR12X0471
13	GEN WR02X4945
14	GEN WR02X4946
15	GEN WR01X1564
16	GEN WR01X1565
18	GEN WR01X1566
19	GEN WR17X1528
23	GEN WR24X0300
24	GEN WR17X0857
25	GEN WR17X1209
26	GEN WR02X7230
27	GEN WR02X7229
28	GEN WR02X6278
30	SCREW
101	GEN WR03X0408
102	GEN WR38X1032
103	GEN WR77X0403
104	GEN WR24X0301
106	GEN WR22X0293
107	GEN WR22X0298
108	GEN WR17X1529
110	GEN WR02X7231
111	GEN WR02X4929
112	GEN WR04X0173
114	GEN WR19X0025
115	GEN WR17X1530
116	GEN WR01X1570
118	GEN WR19X0024
119	GEN WR02X4928
120	GEN WR01X1592
150	SCREW SW. CRADLE
176	GEN WZ05X0166
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR17X1544
204	FOAM STRIP MULLION
204	SUPT-MULLION & NUTSTRIP
204	GEN WR01X1655
205	GEN WR02X7060
206	GEN WR71X1518
207	PLENUM
207	GEN WR14X0313
208	GEN WR38X1015
209	GEN WR02X7015
210	GEN WR02X7016
211	GEN WR02X6261
212	GEN WR71X1508
213	WR30X311 GE Refrigerator Ice Tray
219	GEN WR51X0250
228	GEN WR71X1507
230	GEN WR38X0961
231	GEN WR38X0965
231	GEN WR02X3440
232	GEN WR72X0076
233	GEN WR72X0075
233	GEN WR02X7018
234	GEN WR14X0285
236	GEN WR32X0850
237	GEN WR17X1573
240	PAN VEG
241	GEN WR17X1548
242	GEN WR32X0826
243	GEN WR32X0851
244	GEN WR17X1551
244	GEN WR02X7052
245	GEN WR32X0849
249	SUPPORT PAN COVER
252	GEN WR32X0721
253	GEN WR17X1923
254	GASKET COVER FRT
255	GEN WR38X0962
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	CHANNEL SUPPT COVER
259	GEN WR14X0284
260	WR2X8474 GE Fill Tube
263	GEN WR14X0325
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3595
265	GEN WR02X3598
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0527
277	RAIL MACH MTG FRT
278	WHEEL ASM FRT
279	GEN WR02X7063
281	GEN WR01X1114
281	GEN WR01X1355
281	GEN WR01X1600
282	GEN WR13X0519
283	GEN WR02X7190
283	SHIM HINGE-.031 THK.
284	GEN WR02X7083
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GRILLE O.CASE(BRN)
288	GEN WR02X7079
289	GEN WR02X7154
290	GEN WR02X7155
291	GEN WR74X0177
293	GEN WR02X7080
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	GEN WR02X7061
300	CONTROL TEMP
301	SLEEVE VINYL
301	GEN WR02X7146
302	GEN WR14X0312
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7139
305	GEN WR02X7009
306	GEN WR17X1534
306	INSUL CONTROL HSG
307	GEN WR17X1538
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
321	GEN WR02X4532
322	GEN WR02X6345
323	GEN WR17X1553
324	PLUG BUTTON LG WH
422	GEN WR01X1332
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
452	GEN WR02X7011
452	SHIM HINGE BTM.
551	GEN WZ04X0244
553	SCR 6-20 B TR 1/4 SS
560	GEN WR01X1249
562	SCR 12-24 TT HXW 1 3/64S
564	SCR 6-20 AB TR 3/8 SS
564	GEN WR01X1194
566	GEN WR01X1487
568	SCREW
569	RIVET POP
570	GEN WZ04X0331
573	GEN WZ04X0254
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	WR1X1591 GE Refrigerator Screw
603	LINER BTM FZ
604	GEN WR17X1541
604	GEN WR02X7072
608	LINER TOP FF
609	WR23X37285 GE Light Switch
610	GEN WR60X0130
611	SHIM HINGE BTM.
616	SHIELD DEF HTR
617	COVER DEF HTR
618	HEATER DEF ASM
620	WR50X60 GE Refrigerator Defrost Thermostat
621	GEN WR02X4495
621	BRACKET DEF HTR
622	TROUGH DRAIN ASM
623	COVER DUCT FF
623	GEN WR14X0289
624	GEN WR17X1546
626	WR1X5278 GE Refrigerator Cable Clamp
626	WR23X10300 GE Refrigerator Power Cord Assembly
628	GEN WR02X7026
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	GEN WR02X2375
644	TONGUE ASM
648	WR9X502 GE Refrigerator Defrost Timer
649	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR02X4191
653	GEN WR01X1515
654	BRACKET COND FAN
655	GEN WR01X1601
682	GEN WX06X0134
683	SCREW FAN MTR/BRKT
685	SCR 1/4-14 AB HX 1/2S NS
687	SCREW 6-18 X 1/2" ROUND
689	WZ5X246 GE Screw
692	SCR 8-18 AB HX 1/2 S PL
692	SCREW
694	GEN WZ05X0247
725	MACHINE HIGH SIDE
725	REFRIGERANT
726	MACHINE LOW SIDE
730	COND ASM
731	CLIP COND
733	RELAY COMP
734	GEN WR02X3583
734	COVER RELAY
735	GEN WR08X0030
736	COVER COMP MTG BRKT
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	NUTSTRIP COMP MTG D/J
900	GEN WR78X7404
901	GEN WR78X7405
902	GEN WR78X7406
903	GEN WR78X7407
904	GEN WR78X7408
905	GEN WR08X7409
906	GEN WR78X7410
907	GEN WR78X7411
908	GEN WR78X7412
909	GEN WR78X7413
910	GEN WR02X4930
911	GEN WR02X4931
912	GEN WR02X4932
913	GEN WR02X4933
914	GEN WR02X4934
9999	GEN 49-6343
