TBF17LAB

TBF17LAB

Written by

in

TBF17LAB

Products

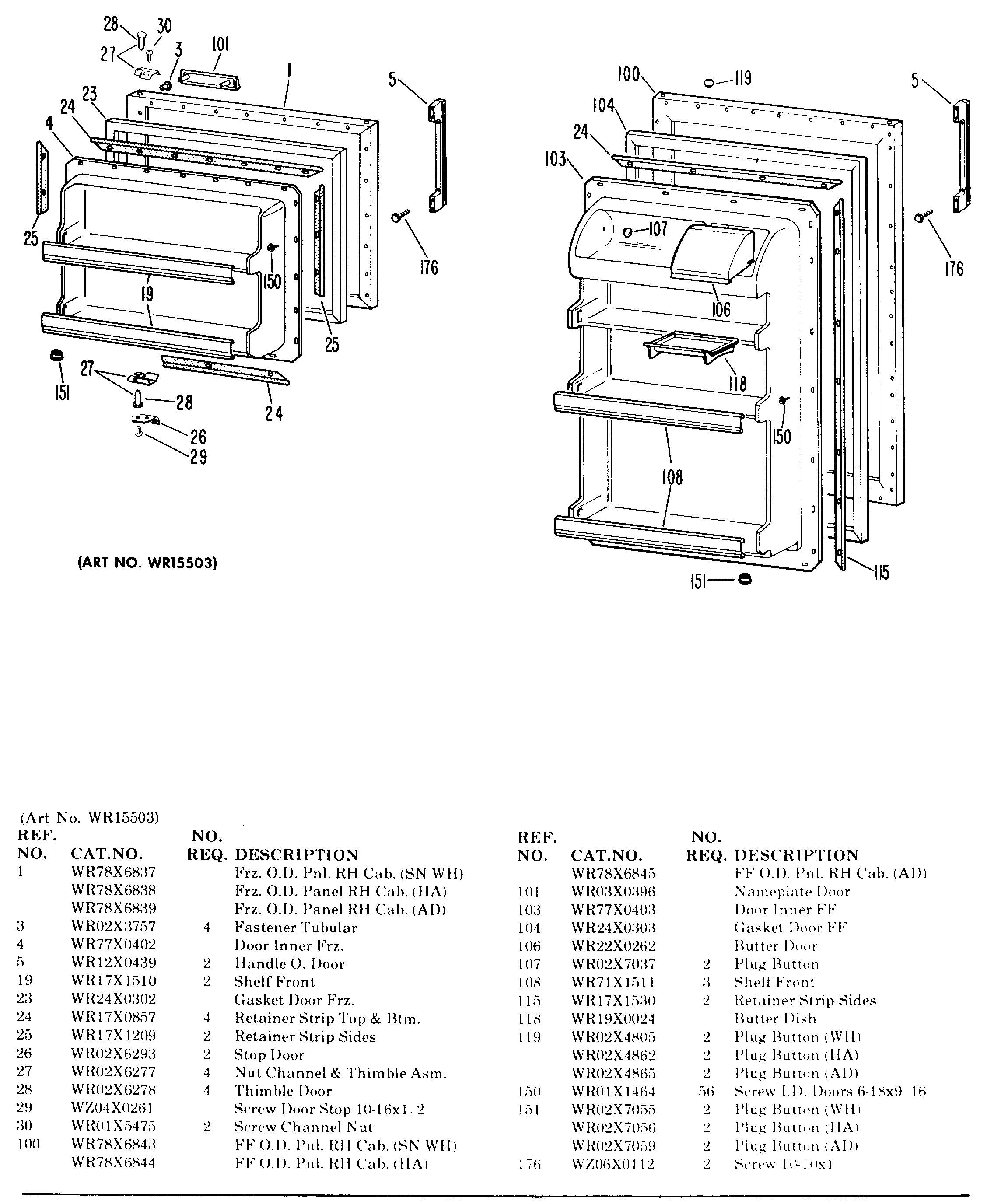

Position	Product
1	GEN WR78X6839
1	GEN WR78X6838
1	GEN WR78X6837
3	GEN WR02X3757
4	GEN WR77X0402
5	GEN WR12X0439
19	GEN WR17X1510
23	GEN WR24X0302
24	GEN WR17X0857
25	GEN WR17X1209
26	GEN WR02X6293
27	GEN WR02X6277
28	GEN WR02X6278
30	SCREW
100	GEN WR78X6844
100	GEN WR78X6843
100	GEN WR78X6845
101	GEN WR03X0396
103	GEN WR77X0403
104	GEN WR24X0303
106	GEN WR22X0262
107	GEN WR02X7037
108	GEN WR71X1511
115	GEN WR17X1530
118	GEN WR19X0024
119	GEN WR02X4805
119	GEN WR02X4862
119	GEN WR02X4865
150	SCREW SW. CRADLE
151	GEN WR02X7059
151	GEN WR02X7055
151	GEN WR02X7056
176	GEN WZ06X0112
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR17X1544
204	SUPT-MULLION & NUTSTRIP
206	GEN WR71X1512
207	PLENUM
210	GEN WR02X7039
213	WR30X311 GE Refrigerator Ice Tray
219	GEN WR51X0250
228	GEN WR71X1513
232	SUPPORT SHELF
233	SUPPORT SHELF SIDE
240	SHELF BASKET
249	SUPPORT PAN COVER
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
260	WR2X8474 GE Fill Tube
262	GEN WR02X4829
262	PLUG BTN (.875 DIA.HOLE)
263	GEN WR02X4098
263	GEN WR02X4099
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
271	GEN WR02X3598
273	R-E-D SERVICE PKG.
275	HINGE TOP & PIN ASM
278	GEN WR13X0522
279	GEN WR02X7063
280	GEN WR02X7190
281	GEN WR01X1114
281	GEN WR01X1355
282	GEN WR13X0519
283	SHIM HINGE-.031 THK.
284	GEN WR02X7011
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GEN WR74X0145
289	GEN WR02X4668
290	GEN WR02X4669
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	CONTROL TEMP
301	KNOB TEMP. CONTROL
301	SLEEVE VINYL
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7023
305	GEN WR02X7009
305	GEN WR14X0283
306	GEN WR17X1534
306	INSUL CONTROL HSG
307	GEN WR17X1538
308	BEZEL CONTROL HSG.
310	SOCKET LAMP
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
316	GEN WR17X1563
317	LEVELING LEG
317	GEN WR02X6380
319	WR2X4097 GE Button Plug
321	PLUG BUTTON SIDE & FRZ.
322	GEN WR02X6345
323	GEN WR17X1553
324	PLUG BUTTON LG WH
324	GEN WR02X7051
350	GEN WR60X0118
351	BRACKET EVAP FAN LARGE
352	BRACKET SMALL
353	WR60X123 GE Fan Blade Black
354	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
355	GEN WR02X2945
450	GEN WR02X4194
551	GEN WZ04X0244
560	GEN WR01X1249
561	SCR 12-24 TT HXW 1 3/64S
564	GEN WR01X1194
565	POP RIVET
566	GEN WR01X1487
567	WD2X5166 GE Dishwasher Screw
568	SCREW
570	GEN WZ04X0331
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	LINER BTM FZ
604	GEN WR17X1541
608	LINER TOP FF
609	WR23X37285 GE Light Switch
616	SHIELD DEF HTR
617	COVER DEF HTR
618	HEATER DEF ASM
620	WR50X60 GE Refrigerator Defrost Thermostat
621	BRACKET DEF HTR
622	TROUGH DRAIN ASM
623	GEN WR14X0289
623	COVER DUCT FF
624	GEN WR17X1546
626	WR23X10300 GE Refrigerator Power Cord Assembly
628	GEN WR02X7026
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	TONGUE ASM
648	WR9X502 GE Refrigerator Defrost Timer
649	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR02X4191
653	GEN WR01X1515
654	BRACKET COND FAN
675	SCR 8-18 AB TR 5/8SS PLW
679	SCR 8-18 AB HX 3/8 S
680	SCR 8-18 AB HX 1/2S W
682	SCR 8-36 T HX 7/16 S XTW
683	SCREW FAN MTR/BRKT
684	SCREW
685	SCR 1/4-14 AB HX 1/2S NS
687	SCREW 6-18 X 1/2" ROUND
688	SCR 8-15 A PA 3/4 SS
689	WZ5X246 GE Screw
690	WZ5X158D GE Screw Package of 12
691	GEN WR01X1594
691	SCR 6-20 AB HXW 1/4 S
692	SCREW
692	SCR 8-18 AB HX 1/2 S PL
694	GEN WZ05X0247
725	MACHINE HIGH SIDE
725	REFRIGERANT
726	MACHINE LOW SIDE
730	COND ASM
731	CLIP COND
733	RELAY COMP
734	COVER RELAY
734	GEN WR02X3583
735	GEN WR08X0030
736	COVER COMP MTG BRKT
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	GEN WR02X3901
9999	GEN 30-6030
9999	GEN 49-6292-2
