TBF17PCC

TBF17PCC

Written by

in

TBF17PCC

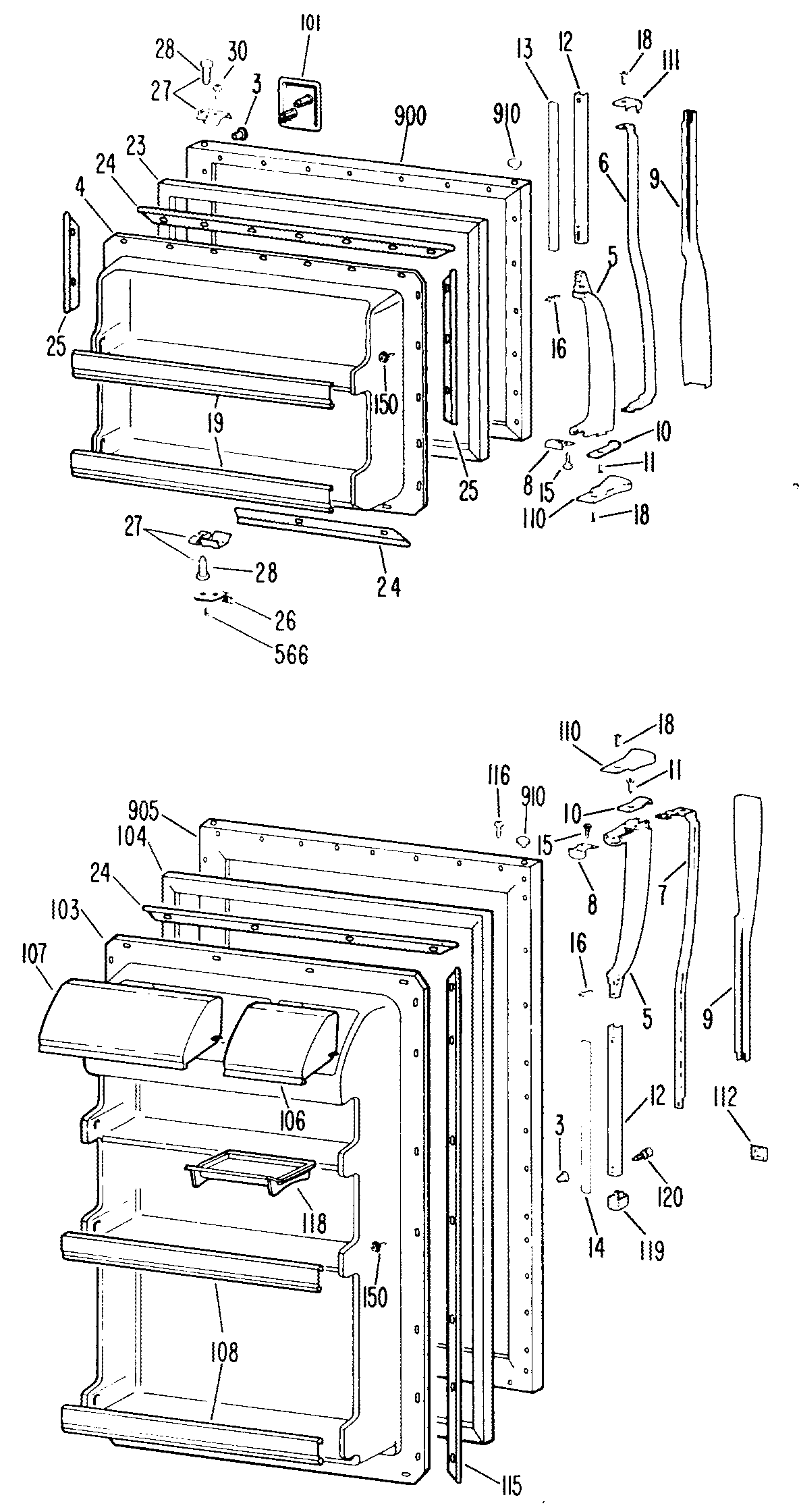

Products

Position	Product
3	GEN WR02X3757
4	GEN WR77X0402
5	GEN WR12X0463
6	GEN WR12X0468
7	GEN WR12X0469
8	GEN WR02X4924
10	GEN WR02X7140
11	SCREW 8-18 B 7/16
13	GEN WR02X4945
14	GEN WR02X4946
15	GEN WR01X1564
16	GEN WR01X1565
18	GEN WR01X1566
19	GEN WR71X1645
23	GEN WR24X0300
24	GEN WR17X0857
25	GEN WR17X1209
26	GEN WR02X7230
27	GEN WR02X7229
28	GEN WR02X6278
30	SCREW
101	GEN WR03X0408
103	GEN WR77X0403
104	GEN WR24X0301
106	GEN WR22X0293
107	GEN WR22X0298
108	GEN WR71X1646
110	GEN WR02X7231
111	GEN WR02X4929
112	GEN WR04X0173
115	GEN WR17X1530
116	GEN WR01X1570
119	GEN WR02X4928
120	GEN WR01X1592
121	GEN WR12X0509
125	GEN WR12X0471
150	SCREW SW. CRADLE
180	GEN WZ05X0166
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR17X1544
204	SUPT-MULLION & NUTSTRIP
204	FOAM STRIP MULLION
204	GEN WR01X1655
205	GEN WR02X7060
206	GEN WR71X1505
207	PLENUM
210	GEN WR02X7016
213	WR30X311 GE Refrigerator Ice Tray
215	GEN WR32X0701
216	GEN WR01X1332
228	GEN WR71X1506
229	SHELF CANT WIRE ASM
230	GEN WR38X0961
231	GEN WR02X3440
231	GEN WR38X0965
232	GEN WR72X0076
233	GEN WR72X0075
233	GEN WR02X7018
236	GEN WR32X0855
237	GEN WR17X1616
240	GEN WR32X0854
241	GEN WR17X1564
242	WR32X5206 GE Refrigerator Vegetable Cover
249	SUPPORT PAN COVER
252	COVER PAN
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	CHANNEL SUPPT COVER
260	WR2X8474 GE Fill Tube
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X4742
265	GEN WR02X3598
267	COVER ACCESS ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0527
277	RAIL MACH MTG FRT
278	WHEEL ASM FRT
279	GEN WR02X7063
281	GEN WR01X1114
282	GEN WR13X0519
283	SHIM HINGE-.031 THK.
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GEN WR02X7079
288	GRILLE O.CASE(BRN)
289	GEN WR02X7154
290	GEN WR02X7155
291	GEN WR74X0177
293	GEN WR02X7080
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	GEN WR02X7061
300	CONTROL TEMP
300	SLEEVE VINYL
301	GEN WR02X7146
302	HOUSING NOZZLE
302	GEN WR14X0312
303	GEN WR02X7008
304	GEN WR02X7139
306	GEN WR17X1534
306	GEN WR02X7009
306	INSUL CONTROL HSG
307	GEN WR17X1538
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
321	GEN WR02X4532
322	GEN WR02X6345
323	GEN WR17X1553
324	PLUG BUTTON LG WH
435	SOCKET LAMP
435	RANGE ONLY 40W 120V APPL BULB
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
452	GEN WR02X7190
452	SHIM HINGE BTM.
551	GEN WZ04X0244
552	SCR 12-24 TT HXW 1 3/64S
553	SCR 6-20 B TR 1/4 SS
560	GEN WR01X1249
564	GEN WR01X1194
564	SCR 6-20 AB TR 3/8 SS
566	GEN WR01X1487
568	SCREW
569	RIVET POP
570	GEN WZ04X0331
573	GEN WZ04X0254
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	WR1X1591 GE Refrigerator Screw
604	GEN WR02X7072
604	GEN WR17X1541
608	LINER TOP FF
609	WR23X37285 GE Light Switch
610	GEN WR60X0130
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP FAN
613	WR60X123 GE Fan Blade Black
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
616	SHIELD DEF HTR
617	COVER DEF HTR
620	WR50X60 GE Refrigerator Defrost Thermostat
621	GEN WR02X4495
621	BRACKET DEF HTR
622	TROUGH DRAIN ASM
623	GEN WR14X0289
623	COVER DUCT FF
624	GEN WR17X1546
626	WR1X5278 GE Refrigerator Cable Clamp
626	WR23X10300 GE Refrigerator Power Cord Assembly
628	GEN WR02X7026
630	WR2X4097 GE Button Plug
631	GEN WR02X4829
631	PLUG BTN (.875 DIA.HOLE)
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	TONGUE ASM
644	GEN WR02X2375
648	WR9X502 GE Refrigerator Defrost Timer
648	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
651	GEN WR01X1515
652	GEN WR01X1683
654	BRACKET COND FAN
655	GEN WR01X1601
675	SCR 8-18 AB TR 5/8SS PLW
676	WD2X5166 GE Dishwasher Screw
679	SCR 8-18 AB HX 3/8 S
679	SCREW BRKT. EVAP. FAN
680	SCR 8-18 AB HX 1/2S W
682	GEN WX06X0134
683	SCREW FAN MTR/BRKT
685	SCR 1/4-14 AB HX 1/2S NS
687	SCREW 6-18 X 1/2" ROUND
688	SCR 8-15 A PA 3/4 SS
689	WZ5X246 GE Screw
691	GEN WR01X1644
691	GEN WR01X1594
692	SCREW
692	SCR 8-18 AB HX 1/2 S PL
694	GEN WZ05X0247
725	MACHINE HIGH SIDE
736	COVER COMP MTG BRKT
900	GEN WR78X7404
901	GEN WR78X7405
902	GEN WR78X7406
903	GEN WR78X7407
904	GEN WR78X7408
906	GEN WR78X7410
907	GEN WR78X7411
908	GEN WR78X7412
910	GEN WR78X7409
914	GEN WR78X7413
920	GEN WR02X4930
921	GEN WR02X4931
922	GEN WR02X4932
923	GEN WR02X4933
924	GEN WR02X4934
32767	GEN 49-6348
32767	PAN WATER DISPOSAL ASM
32767	GEN 31-5001
32767	GEN WR51X0250
32767	HEATER DEF ASM
32767	GEN WR02X7083
32767	LINER BTM FZ
32767	WR2X4330D GE Refrigerator Connection Package 12
32767	GEN WR17X1998
32767	GEN WR17X2000
32767	GEN WR14X0313
32767	WZ5X158D GE Screw Package of 12
