TBF17SCBR

TBF17SCBR

Written by

in

TBF17SCBR

Products

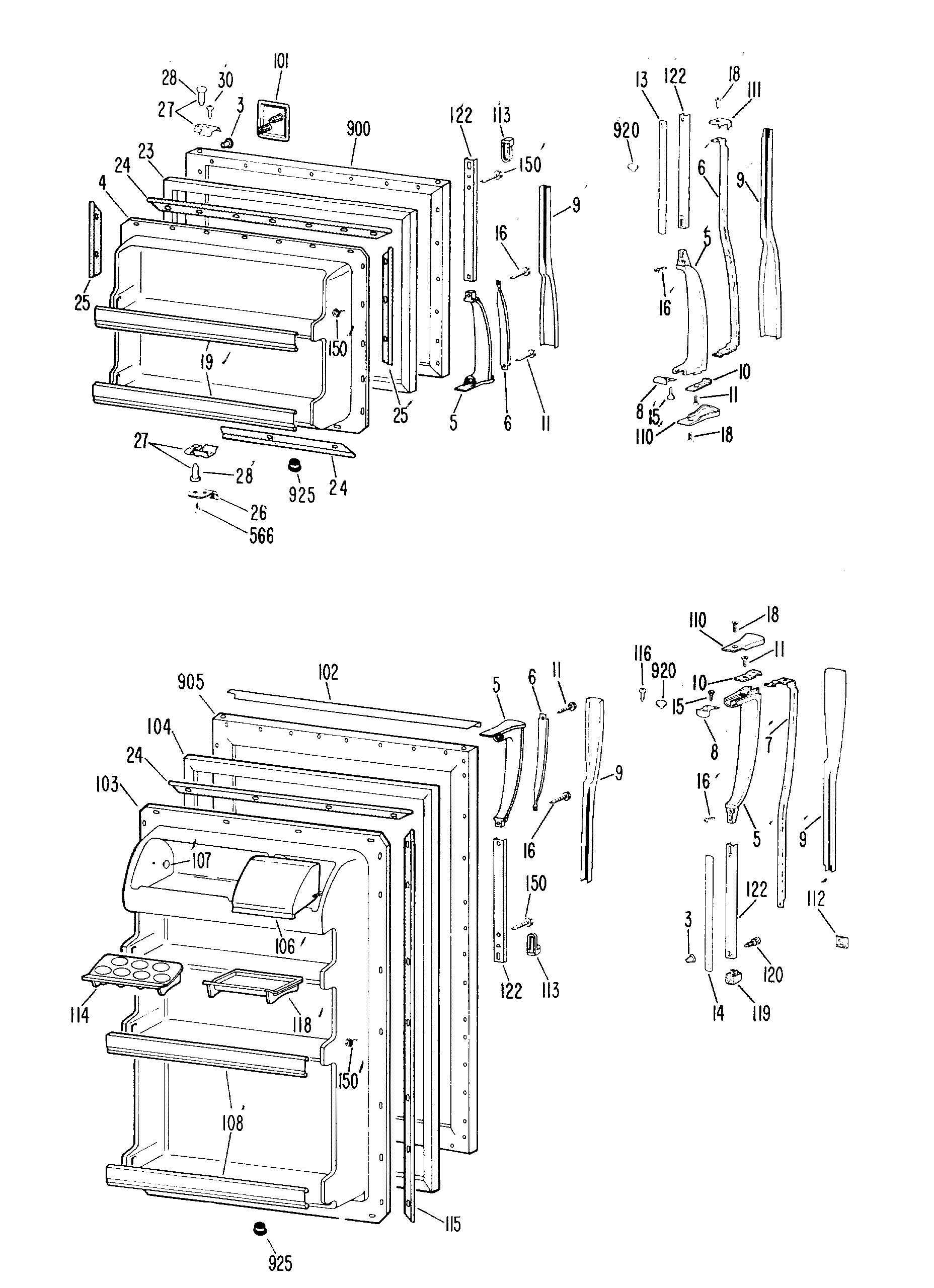

Position	Product
3	GEN WR02X3757
4	GEN WR77X0402
5	GEN WR12X0451
6	GEN WR12X0452
9	GEN WR12X0509
11	GEN WZ04X0358
12	GEN WR01X1597
16	GEN WZ05X0227
19	GEN WR71X1645
23	GEN WR24X0300
24	GEN WR17X0857
25	GEN WR17X1209
26	GEN WR02X6293
27	GEN WR02X6277
28	GEN WR02X6278
30	SCREW
101	GEN WR03X0408
102	GEN WR38X0976
103	GEN WR77X0403
104	GEN WR24X0301
106	GEN WR22X0262
107	GEN WR02X7037
108	GEN WR71X1646
113	GEN WR12X0320
114	GEN WR19X0025
115	GEN WR17X1530
122	GEN WR12X0471
150	SCREW SW. CRADLE
176	GEN WZ05X0166
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR17X1544
204	FOAM STRIP MULLION
204	GEN WR01X1655
204	SUPT-MULLION & NUTSTRIP
205	GEN WR02X7060
207	PLENUM
207	GEN WR14X0313
212	GEN WR71X1512
213	WR30X311 GE Refrigerator Ice Tray
219	GEN WR51X0250
220	GEN WR02X7039
228	GEN WR71X1513
232	SUPPORT SHELF
240	GEN WR32X0853
241	GEN WR17X1564
242	WR32X5206 GE Refrigerator Vegetable Cover
249	SUPPORT PAN COVER
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	CHANNEL SUPPT COVER
260	WR2X8474 GE Fill Tube
261	GEN WR02X4989
264	GLIDER ADJ.-5/16-18 THD.
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0527
277	GEN WR17X1563
278	LEVELING LEG
279	GEN WR02X7063
281	GEN WR01X1355
281	GEN WR01X1600
281	GEN WR01X1114
282	GEN WR13X0519
283	SHIM HINGE-.031 THK.
283	GEN WR02X7190
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GEN WR02X7079
288	GRILLE O.CASE(BRN)
289	GEN WR02X7154
290	GEN WR02X7155
291	GEN WR74X0177
293	GEN WR02X7080
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	GEN WR02X7061
300	CONTROL TEMP
301	GEN WR02X7146
301	SLEEVE VINYL
302	GEN WR14X0312
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7139
305	GEN WR02X7009
306	GEN WR17X1534
306	INSUL CONTROL HSG
307	GEN WR17X1538
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
322	GEN WR02X6345
323	GEN WR17X1553
358	SUPPORT SHELF SIDE
422	GEN WR01X1332
435	WR2X4330D GE Refrigerator Connection Package 12
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
452	SHIM HINGE BTM.
452	GEN WR02X7011
551	GEN WZ04X0244
553	SCR 6-20 B TR 1/4 SS
560	GEN WR01X1249
562	SCR 12-24 TT HXW 1 3/64S
564	SCR 6-20 AB TR 3/8 SS
564	GEN WR01X1194
566	GEN WR01X1487
568	SCREW
569	RIVET POP
570	GEN WZ04X0331
573	GEN WZ04X0254
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	WR1X1591 GE Refrigerator Screw
603	LINER BTM FZ
604	GEN WR17X1541
604	GEN WR02X7072
608	LINER TOP FF
609	WR23X37285 GE Light Switch
610	GEN WR60X0130
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
613	WR60X123 GE Fan Blade Black
615	GEN WR02X2945
616	SHIELD DEF HTR
617	COVER DEF HTR
618	HEATER DEF ASM
620	WR50X60 GE Refrigerator Defrost Thermostat
621	BRACKET DEF HTR
621	GEN WR02X4495
622	TROUGH DRAIN ASM
623	GEN WR14X0289
623	COVER DUCT FF
624	GEN WR17X1546
626	WR23X10300 GE Refrigerator Power Cord Assembly
626	WR1X5278 GE Refrigerator Cable Clamp
628	GEN WR02X7026
630	WR2X4097 GE Button Plug
631	GEN WR02X4829
631	PLUG BTN (.875 DIA.HOLE)
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	TONGUE ASM
644	GEN WR02X2375
648	WR9X502 GE Refrigerator Defrost Timer
649	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR01X1683
653	GEN WR01X1515
654	BRACKET COND FAN
655	GEN WR01X1601
675	SCR 8-18 AB TR 5/8SS PLW
676	WD2X5166 GE Dishwasher Screw
679	SCREW BRKT. EVAP. FAN
679	SCR 8-18 AB HX 3/8 S
680	SCR 8-18 AB HX 1/2S W
682	GEN WX06X0134
683	SCREW FAN MTR/BRKT
685	SCR 1/4-14 AB HX 1/2S NS
687	SCREW 6-18 X 1/2" ROUND
688	SCR 8-15 A PA 3/4 SS
689	WZ5X246 GE Screw
690	WZ5X158D GE Screw Package of 12
691	GEN WR01X1594
691	GEN WR01X1644
692	SCR 8-18 AB HX 1/2 S PL
692	SCREW
694	GEN WZ05X0247
725	MACHINE HIGH SIDE
725	REFRIGERANT
726	MACHINE LOW SIDE
730	COND ASM
731	CLIP COND
733	RELAY COMP
734	GEN WR02X3583
734	COVER RELAY
735	GEN WR08X0030
736	COVER COMP MTG BRKT
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	NUTSTRIP COMP MTG D/J
900	GEN WR78X7282
901	GEN WR78X7283
904	GEN WR78X7284
905	GEN WR78X7105
906	GEN WR78X7106
909	GEN WR78X7107
925	GEN WR02X7055
9999	GEN 49-6348
