TBF17SFGL

TBF17SFGL

Written by

in

TBF17SFGL

Products

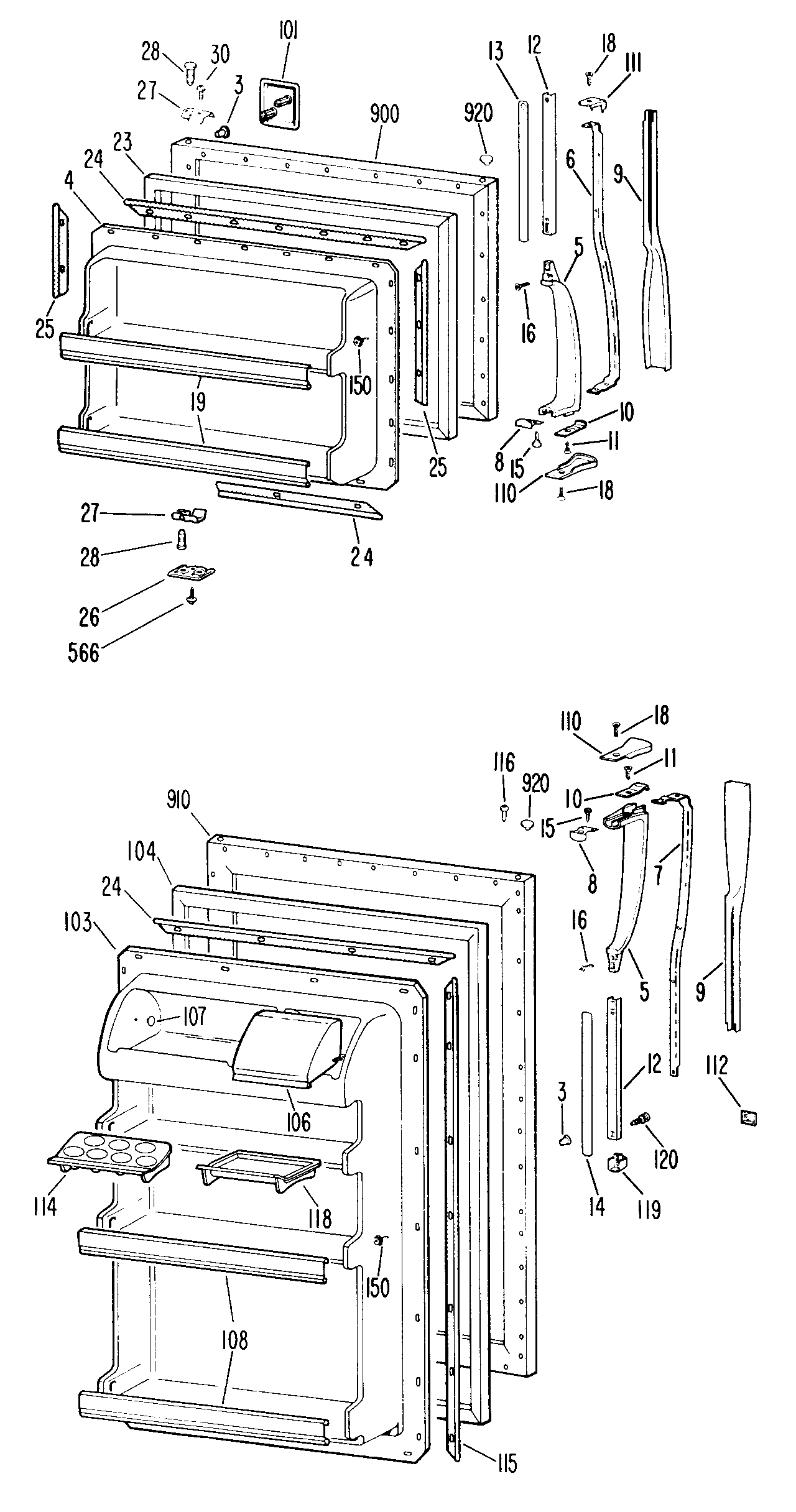

Position	Product
3	GEN WR02X3757
4	GEN WR77X0402
5	GEN WR12X0463
6	GEN WR12X0468
7	GEN WR12X0469
8	GEN WR02X4924
9	GEN WR12X0526
9	GEN WR12X0509
10	GEN WR02X7140
11	SCREW 8-18 B 7/16
13	GEN WR02X4945
14	GEN WR02X4946
15	GEN WR01X1564
16	GEN WR01X1565
18	GEN WR01X1566
19	GEN WR71X1645
23	GEN WR24X0300
24	GEN WR17X0857
25	GEN WR17X1209
26	GEN WR02X7230
27	GEN WR02X7229
28	GEN WR02X6278
30	SCREW
101	GEN WR03X0408
103	GEN WR77X0445
104	GEN WR24X0301
106	GEN WR22X0262
107	GEN WR02X7037
108	GEN WR71X1646
110	GEN WR02X7231
111	GEN WR02X4929
112	GEN WR04X0174
112	GEN WR04X0173
114	GEN WR19X0025
115	GEN WR17X1530
116	GEN WR01X1570
119	GEN WR02X4928
120	GEN WR01X1592
122	GEN WR12X0471
150	SCREW SW. CRADLE
176	GEN WZ05X0166
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR17X2014
203	GEN WR14X0316
204	SUPT-MULLION & NUTSTRIP
204	GEN WR01X1655
205	GEN WR02X7060
207	GEN WR14X0313
207	PLENUM
212	GEN WR71X1512
213	WR30X311 GE Refrigerator Ice Tray
218	GEN WR14X0328
219	GEN WR51X0302
220	GEN WR02X7039
228	GEN WR71X1513
232	SUPPORT SHELF
240	GEN WR32X0854
241	GEN WR17X1564
242	WR32X5206 GE Refrigerator Vegetable Cover
249	GEN WR02X7249
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	GEN WR17X2028
260	WR2X8474 GE Fill Tube
264	GLIDER ADJ.-5/16-18 THD.
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0561
277	GEN WR17X1563
278	LEVELING LEG
279	GEN WR13X0562
281	GEN WR01X1114
281	GEN WR01X1355
282	GEN WR13X0553
282	NUTSTRIP HINGE
283	SHIM HINGE-.031 THK.
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GRILLE O.CASE(BRN)
289	GEN WR02X7154
290	GEN WR02X7155
291	GEN WR74X0177
292	PLUG BUTTON
293	GEN WR02X7080
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	GEN WR02X7061
300	CONTROL TEMP
301	SLEEVE VINYL
301	GEN WR02X7146
302	HOUSING NOZZLE
302	GEN WR14X0312
303	GEN WR02X7008
304	GEN WR02X7139
305	GEN WR02X7009
306	GEN WR17X1534
306	INSUL CONTROL HSG
307	GEN WR17X1538
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
322	GEN WR02X6345
323	GEN WR17X1553
358	SUPPORT SHELF SIDE
422	GEN WR01X1332
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
450	GEN WR02X7151
452	GEN WR02X7011
452	SHIM HINGE BTM.
551	GEN WZ04X0244
553	SCR 6-20 B TR 1/4 SS
560	GEN WR01X1249
561	SCR 12-24 TT HXW 1 3/64 SPP
564	GEN WR01X1194
566	GEN WR01X1487
568	SCREW
569	RIVET POP
570	GEN WZ04X0331
573	GEN WZ04X0254
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	LINER BTM FZ
603	WR1X1591 GE Refrigerator Screw
604	GEN WR17X2012
604	GEN WR02X7072
608	GEN WR17X2013
609	WR23X37285 GE Light Switch
610	MOTOR EVAP FAN
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
613	WR60X123 GE Fan Blade Black
615	GEN WR02X2945
616	SHIELD DEF HTR
617	COVER DEF HTR
618	HEATER DEF ASM
620	WR50X60 GE Refrigerator Defrost Thermostat
621	BRACKET DEF HTR
621	GEN WR02X4495
622	TROUGH DRAIN ASM
623	GEN WR14X0289
623	COVER DUCT FF
624	GEN WR17X1546
626	WR1X5278 GE Refrigerator Cable Clamp
626	WR23X10300 GE Refrigerator Power Cord Assembly
628	GEN WR02X7026
630	WR2X4097 GE Button Plug
631	GEN WR02X4829
631	PLUG BTN (.875 DIA.HOLE)
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	GEN WR02X2375
644	TONGUE ASM
648	WR9X502 GE Refrigerator Defrost Timer
649	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR01X1683
653	GEN WR01X1515
654	BRACKET COND FAN
655	GEN WR01X1601
676	WD2X5166 GE Dishwasher Screw
679	SCR 8-18 AB HX 3/8 S
679	SCREW BRKT. EVAP. FAN
680	SCR 8-18 AB HX 1/2S W
682	GEN WX06X0134
683	SCREW FAN MTR/BRKT
685	SCR 1/4-14 AB HX 1/2S NS
687	SCREW 6-18 X 1/2" ROUND
688	SCR 8-15 A PA 3/4 SS
689	WZ5X246 GE Screw
690	WZ5X158D GE Screw Package of 12
691	GEN WR01X1644
691	GEN WR01X1594
692	SCREW
692	SCR 8-18 AB HX 1/2 S PL
694	GEN WZ05X0247
725	MACHINE HIGH SIDE
725	REFRIGERANT
726	MACHINE LOW SIDE
730	COND ASM
731	CLIP COND
733	RELAY COMP
734	COVER RELAY
734	GEN WR02X3583
735	GEN WR08X0030
736	COVER COMP MTG BRKT
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	NUTSTRIP COMP MTG D/J
900	GEN WR78X7404
901	GEN WR78X7405
904	GEN WR78X7408
905	GEN WR78X7541
906	GEN WR78X7542
910	GEN WR78X7409
911	GEN WR78X7410
914	GEN WR78X7413
915	GEN WR78X7555
916	GEN WR78X7556
920	GEN WR02X4930
924	GEN WR02X4934
925	GEN WR02X7241
926	GEN WR02X7242
9999	GEN 49-6360
9999	GEN 31-5007
