TBF17ZBCR

TBF17ZBCR

Written by

in

TBF17ZBCR

Products

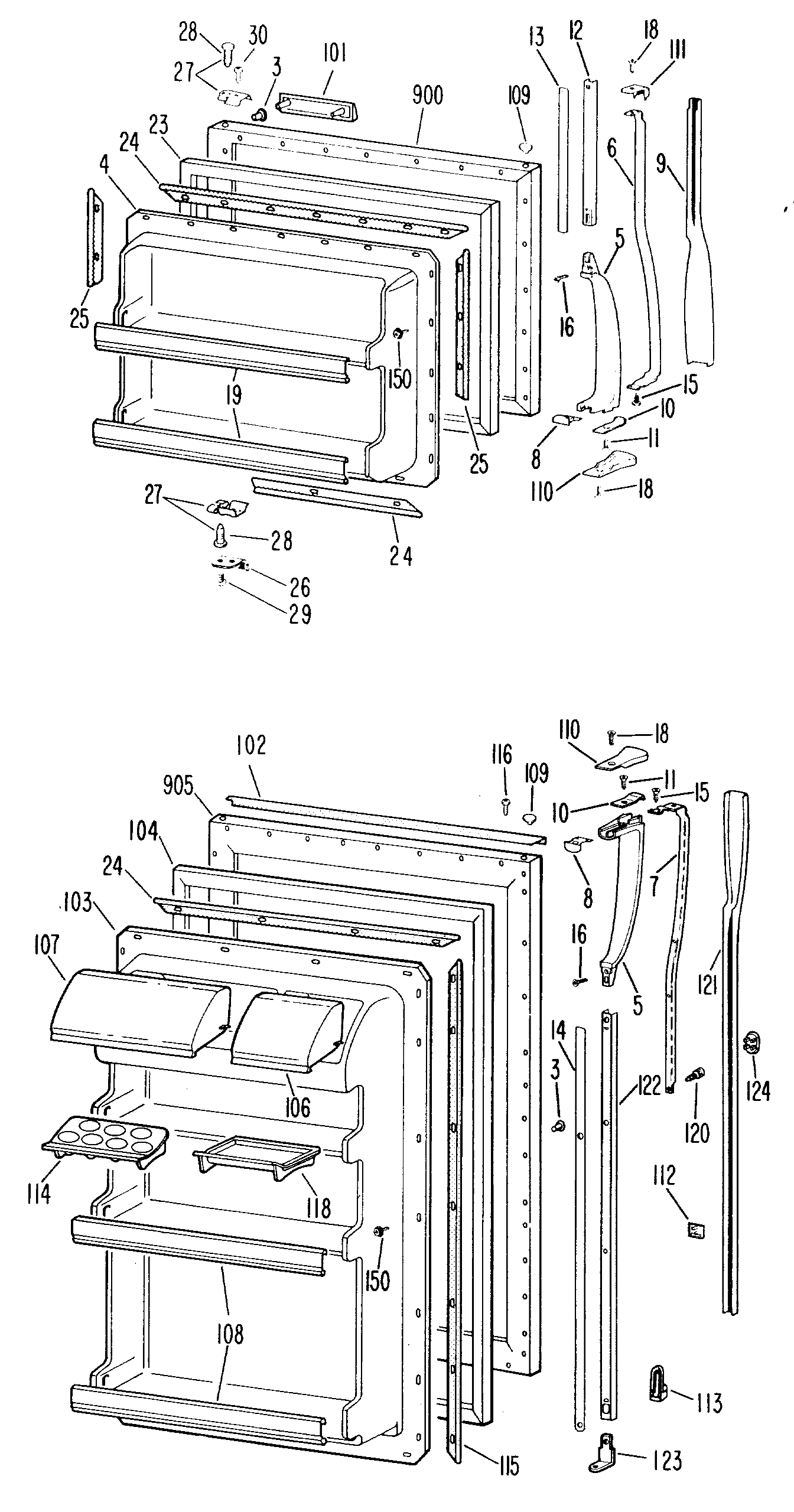

Position	Product
3	GEN WR02X3757
4	GEN WR77X0402
5	GEN WR12X0463
6	GEN WR12X0468
7	GEN WR12X0469
8	GEN WR02X4924
9	GEN WR12X0470
10	GEN WR02X4925
11	SCREW 8-18 B 7/16
12	GEN WR12X0471
13	GEN WR02X4945
14	GEN WR02X4946
15	GEN WR01X1564
16	GEN WR01X1565
18	GEN WR01X1566
19	GEN WR17X1528
23	GEN WR24X0300
24	GEN WR17X0857
25	GEN WR17X1209
26	GEN WR02X6293
27	GEN WR02X6277
28	GEN WR02X6278
30	SCREW
101	GEN WR03X0396
102	GEN WR38X0976
103	GEN WR77X0403
104	GEN WR24X0301
106	GEN WR22X0260
107	GEN WR22X0261
108	GEN WR17X1529
110	GEN WR02X4927
111	GEN WR02X4929
112	GEN WR04X5058
113	GEN WR12X0320
114	GEN WR19X0025
115	GEN WR17X1530
116	GEN WR01X1570
118	GEN WR19X0024
120	GEN WR01X1593
121	GEN WR12X0479
122	GEN WR12X0480
123	GEN WR02X4950
124	GEN WR12X0474
150	SCREW SW. CRADLE
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	FOAM STRIP MULLION
203	GEN WR17X1544
204	SUPT-MULLION & NUTSTRIP
205	GEN WR71X1518
205	GEN WR02X7060
206	GEN WR38X0964
207	PLENUM
209	GEN WR02X7015
210	GEN WR02X7016
211	GEN WR02X6261
212	GEN WR71X1508
213	WR30X311 GE Refrigerator Ice Tray
219	GEN WR51X0250
228	GEN WR71X5916
231	GEN WR02X3440
232	GEN WR72X0076
233	GEN WR02X7018
233	GEN WR72X0075
236	GEN WR32X0753
237	GEN WR17X1573
238	GEN WR17X1579
239	WR2X7054 GE Refrigerator Push-On Nut
239	GEN WR17X1580
240	GEN WR32X0752
241	GEN WR17X1548
242	COVER ASM
243	GEN WR32X0754
244	GEN WR17X1551
244	GEN WR02X7052
245	COVER PAN
246	GEN WR17X1555
247	GEN WR32X0724
248	KNOB
249	SUPPORT PAN COVER
250	GEN WR14X0285
251	GEN WR17X1581
251	GEN WR14X0290
252	GEN WR32X0721
253	GEN WR17X1554
254	GASKET COVER FRT
255	GEN WR38X0962
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	CHANNEL SUPPT COVER
259	GEN WR14X0284
260	WR2X8474 GE Fill Tube
264	GEN WR02X3514
265	GEN WR02X3595
265	GEN WR02X3598
266	GEN WR30X0198
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0527
277	RAIL MACH MTG FRT
278	WHEEL ASM FRT
279	GEN WR02X7063
280	GEN WR02X7190
281	GEN WR01X1355
281	GEN WR01X1114
281	GEN WR01X1600
282	GEN WR13X0519
283	SHIM HINGE-.031 THK.
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GEN WR02X7080
288	GRILLE O. CASE
288	GEN WR02X7079
289	GEN WR02X7077
290	GEN WR02X7078
291	GEN WR74X0152
292	PLUG BUTTON
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	GEN WR02X7061
300	CONTROL TEMP
301	SLEEVE VINYL
301	KNOB TEMP. CONTROL
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7023
305	GEN WR02X7009
306	INSUL CONTROL HSG
306	GEN WR17X1534
307	GEN WR17X1538
308	BEZEL CONTROL HSG.
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
321	PLUG BUTTON SIDE & FRZ.
322	GEN WR02X6345
323	GEN WR17X1553
324	GEN WR17X1576
325	GEN WR02X7053
326	GEN WR17X1582
327	GEN WR14X0291
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
452	SHIM HINGE BTM.
452	GEN WR02X7011
551	GEN WZ04X0244
560	GEN WR01X1249
561	SCR 12-24 TT HXW 1 3/64S
564	GEN WR01X1194
564	SCR 6-20 AB TR 3/8 SS
566	GEN WR01X1487
568	SCREW
569	RIVET POP
570	GEN WZ04X0331
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	LINER BTM FZ
604	GEN WR17X1541
604	GEN WR02X7072
608	LINER TOP FF
609	WR23X37285 GE Light Switch
610	GEN WR60X0130
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP FAN
613	WR60X123 GE Fan Blade Black
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
616	SHIELD DEF HTR
617	COVER DEF HTR
618	HEATER DEF ASM
620	WR50X60 GE Refrigerator Defrost Thermostat
621	BRACKET DEF HTR
622	TROUGH DRAIN ASM
623	GEN WR14X0289
623	COVER DUCT FF
624	GEN WR17X1546
626	WR23X10300 GE Refrigerator Power Cord Assembly
626	WR1X5278 GE Refrigerator Cable Clamp
628	GEN WR02X7026
630	WR2X4097 GE Button Plug
631	PLUG BTN (.875 DIA.HOLE)
631	GEN WR02X4829
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	GEN WR02X2375
644	TONGUE ASM
648	WR9X502 GE Refrigerator Defrost Timer
649	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR02X4191
653	GEN WR01X1515
654	BRACKET COND FAN
655	GEN WR01X1601
675	SCR 8-18 AB TR 5/8SS PLW
676	WD2X5166 GE Dishwasher Screw
679	SCR 8-18 AB HX 3/8 S
680	SCR 8-18 AB HX 1/2S W
682	SCR 8-36 T HX 7/16 S XTW
683	SCREW FAN MTR/BRKT
685	SCR 1/4-14 AB HX 1/2S NS
686	WZ5X158D GE Screw Package of 12
687	SCREW 6-18 X 1/2" ROUND
688	SCR 8-15 A PA 3/4 SS
689	WZ5X246 GE Screw
690	SCR 12-24 TT HXW 1 3/64S
692	SCR 8-18 AB HX 1/2 S PL
692	SCREW
694	GEN WZ05X0247
725	REFRIGERANT
725	MACHINE HIGH SIDE
726	MACHINE LOW SIDE
730	COND ASM
731	CLIP COND
733	RELAY COMP
734	COVER RELAY
734	GEN WR02X3583
735	GEN WR08X0030
736	COVER COMP MTG BRKT
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	NUTSTRIP COMP MTG D/J
900	GEN WR78X7089
900	GEN WR78X7093
900	GEN WR78X7090
900	GEN WR78X7091
905	GEN WR78X7094
905	GEN WR78X7095
905	GEN WR78X7096
905	GEN WR78X7098
910	GEN WR02X4934
910	GEN WR02X4932
910	GEN WR02X4931
910	GEN WR02X4930
9999	GEN 49-6295
