TBF17ZCCR

TBF17ZCCR

Written by

in

TBF17ZCCR

Products

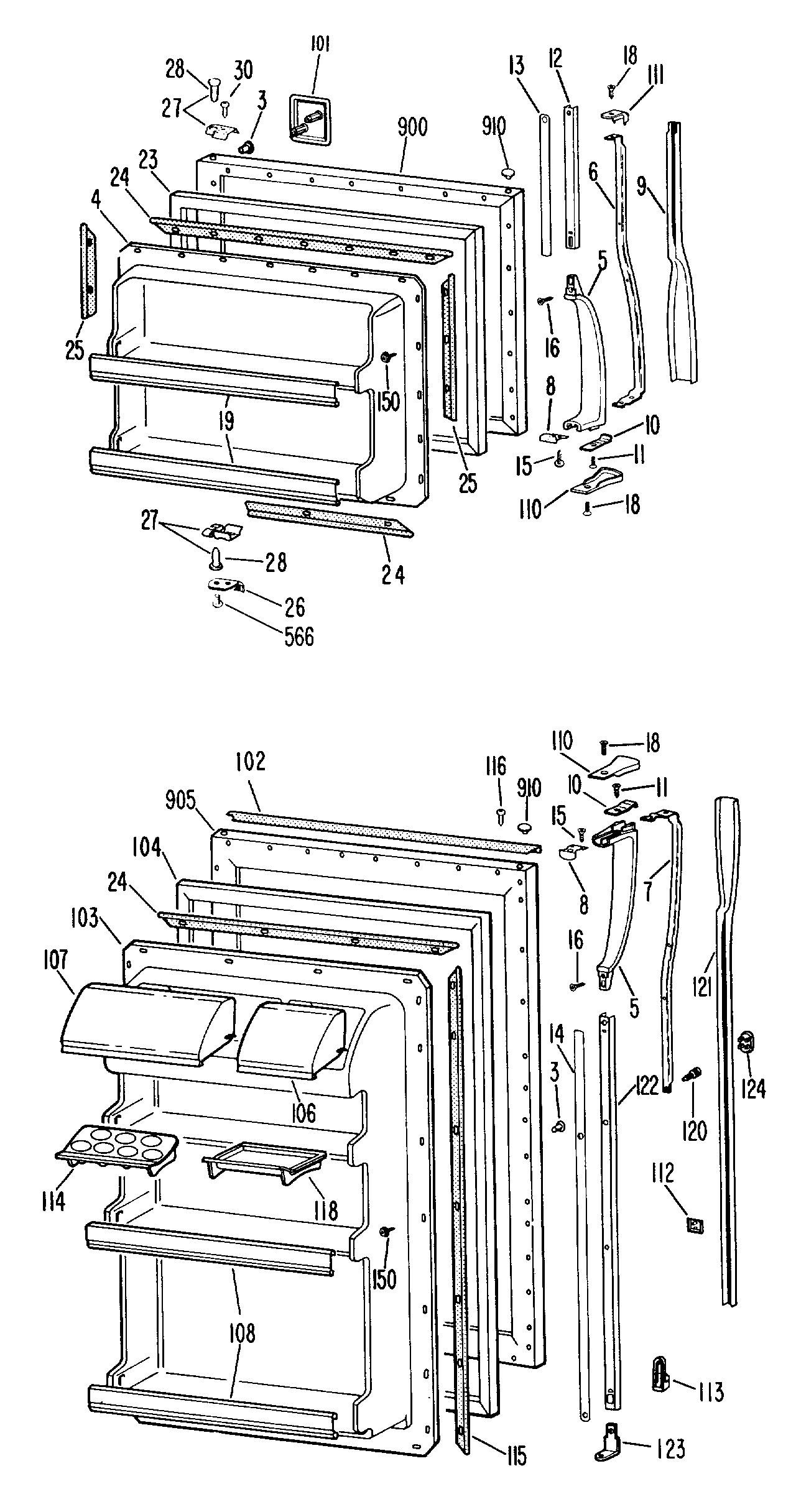

Position	Product
3	GEN WR02X3757
4	GEN WR77X0402
5	GEN WR12X0463
6	GEN WR12X0468
7	GEN WR12X0469
8	GEN WR02X4924
9	GEN WR12X0509
10	GEN WR02X7140
11	SCREW 8-18 B 7/16
12	GEN WR12X0471
13	GEN WR02X4945
14	GEN WR02X4946
15	GEN WR01X1564
16	GEN WR01X1565
18	GEN WR01X1566
19	GEN WR17X1528
23	GEN WR24X0300
24	GEN WR17X0857
25	GEN WR17X1209
26	GEN WR02X7230
27	GEN WR02X7229
28	GEN WR02X6278
30	SCREW
101	GEN WR03X0408
102	GEN WR38X1032
103	GEN WR77X0403
104	GEN WR24X0301
106	GEN WR22X0293
107	GEN WR22X0298
108	GEN WR17X1529
110	GEN WR02X7231
111	GEN WR02X4929
112	GEN WR04X0173
113	GEN WR12X0320
114	GEN WR19X0025
115	GEN WR17X1530
116	GEN WR01X1570
118	GEN WR19X0024
120	GEN WR01X1593
121	GEN WR12X0511
122	GEN WR12X0480
123	GEN WR02X4950
124	GASKET DOOR FZ BLACK
150	SCREW SW. CRADLE
176	GEN WZ05X0166
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR17X1544
204	SUPT-MULLION & NUTSTRIP
204	FOAM STRIP MULLION
204	GEN WR01X1655
205	GEN WR02X7060
206	GEN WR71X1518
207	PLENUM
207	GEN WR14X0313
208	GEN WR38X1015
209	GEN WR02X7015
210	GEN WR02X7016
211	GEN WR02X6261
212	GEN WR71X1508
213	WR30X311 GE Refrigerator Ice Tray
219	GEN WR51X0250
227	GEN WR71X1643
228	GEN WR71X1642
229	GEN WR71X1644
231	GEN WR02X3440
231	GEN WR38X1016
232	GEN WR72X0076
233	GEN WR72X0075
233	GEN WR02X7018
234	GEN WR14X0326
235	REFLECTOR SHELF
236	GEN WR32X0850
238	GEN WR17X1579
239	GEN WR17X1580
239	WR2X7054 GE Refrigerator Push-On Nut
240	GEN WR32X0842
241	GEN WR17X1548
242	COVER ASM
243	GEN WR32X0852
244	GEN WR17X1551
244	GEN WR02X7052
245	COVER PAN
246	GEN WR17X1555
247	GEN WR32X0724
248	KNOB
249	SUPPORT PAN COVER
251	GEN WR17X1581
251	GEN WR14X0290
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	CHANNEL SUPPT COVER
259	GEN WR14X0284
260	WR2X8474 GE Fill Tube
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3598
265	GEN WR02X3595
266	GEN WR30X0198
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0527
277	RAIL MACH MTG FRT
278	WHEEL ASM FRT
279	GEN WR02X7063
281	GEN WR01X1114
281	GEN WR01X1600
281	GEN WR01X1355
282	GEN WR13X0519
283	SHIM HINGE-.031 THK.
283	GEN WR02X7190
284	GEN WR02X7083
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GRILLE O.CASE(BRN)
288	GEN WR02X7079
289	GEN WR02X7154
290	GEN WR02X7155
291	GEN WR74X0177
292	PLUG BUTTON
293	GEN WR02X7080
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	CONTROL TEMP
300	GEN WR02X7061
301	GEN WR02X7146
301	SLEEVE VINYL
302	GEN WR14X0312
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7139
305	GEN WR02X7009
306	GEN WR17X1534
306	INSUL CONTROL HSG
307	GEN WR17X1538
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
322	GEN WR02X6345
323	GEN WR17X1553
324	PLUG BUTTON LG WH
340	GEN WR17X1576
341	GEN WR02X7053
342	GEN WR17X1582
345	GEN WR14X0291
422	GEN WR01X1332
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
452	SHIM HINGE BTM.
553	SCR 6-20 B TR 1/4 SS
564	SCR 6-20 AB TR 3/8 SS
564	GEN WR01X1194
566	GEN WR01X1487
569	RIVET POP
573	GEN WZ04X0254
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	LINER BTM FZ
603	WR1X1591 GE Refrigerator Screw
604	GEN WR17X1541
604	GEN WR02X7072
608	LINER TOP FF
609	WR23X37285 GE Light Switch
616	SHIELD DEF HTR
617	COVER DEF HTR
618	HEATER DEF ASM
620	WR50X60 GE Refrigerator Defrost Thermostat
621	BRACKET DEF HTR
621	GEN WR02X4495
622	TROUGH DRAIN ASM
623	GEN WR14X0289
623	COVER DUCT FF
624	GEN WR17X1546
626	WR1X5278 GE Refrigerator Cable Clamp
626	WR23X10300 GE Refrigerator Power Cord Assembly
628	GEN WR02X7026
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	TONGUE ASM
644	GEN WR02X2375
648	WR9X502 GE Refrigerator Defrost Timer
649	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR02X4191
653	GEN WR01X1515
654	BRACKET COND FAN
655	GEN WR01X1601
682	GEN WX06X0134
683	SCREW FAN MTR/BRKT
685	SCR 1/4-14 AB HX 1/2S NS
687	SCREW 6-18 X 1/2" ROUND
689	WZ5X246 GE Screw
692	SCREW
692	SCR 8-18 AB HX 1/2 S PL
694	GEN WZ05X0247
725	REFRIGERANT
725	MACHINE HIGH SIDE
726	MACHINE LOW SIDE
730	COND ASM
731	CLIP COND
733	RELAY COMP
734	GEN WR02X3583
734	COVER RELAY
735	GEN WR08X0030
736	COVER COMP MTG BRKT
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	NUTSTRIP COMP MTG D/J
900	GEN WR78X7404
901	GEN WR78X7405
902	GEN WR78X7406
903	GEN WR78X7407
904	GEN WR78X7408
905	GEN WR78X7409
906	GEN WR78X7410
907	GEN WR78X7411
908	GEN WR78X7412
909	GEN WR78X7413
910	GEN WR02X4930
911	GEN WR02X4931
912	GEN WR02X4932
913	GEN WR02X4933
914	GEN WR02X4934
9999	GEN 49-6343
