TBF19PBMR

TBF19PBMR

Written by

in

TBF19PBMR

Products

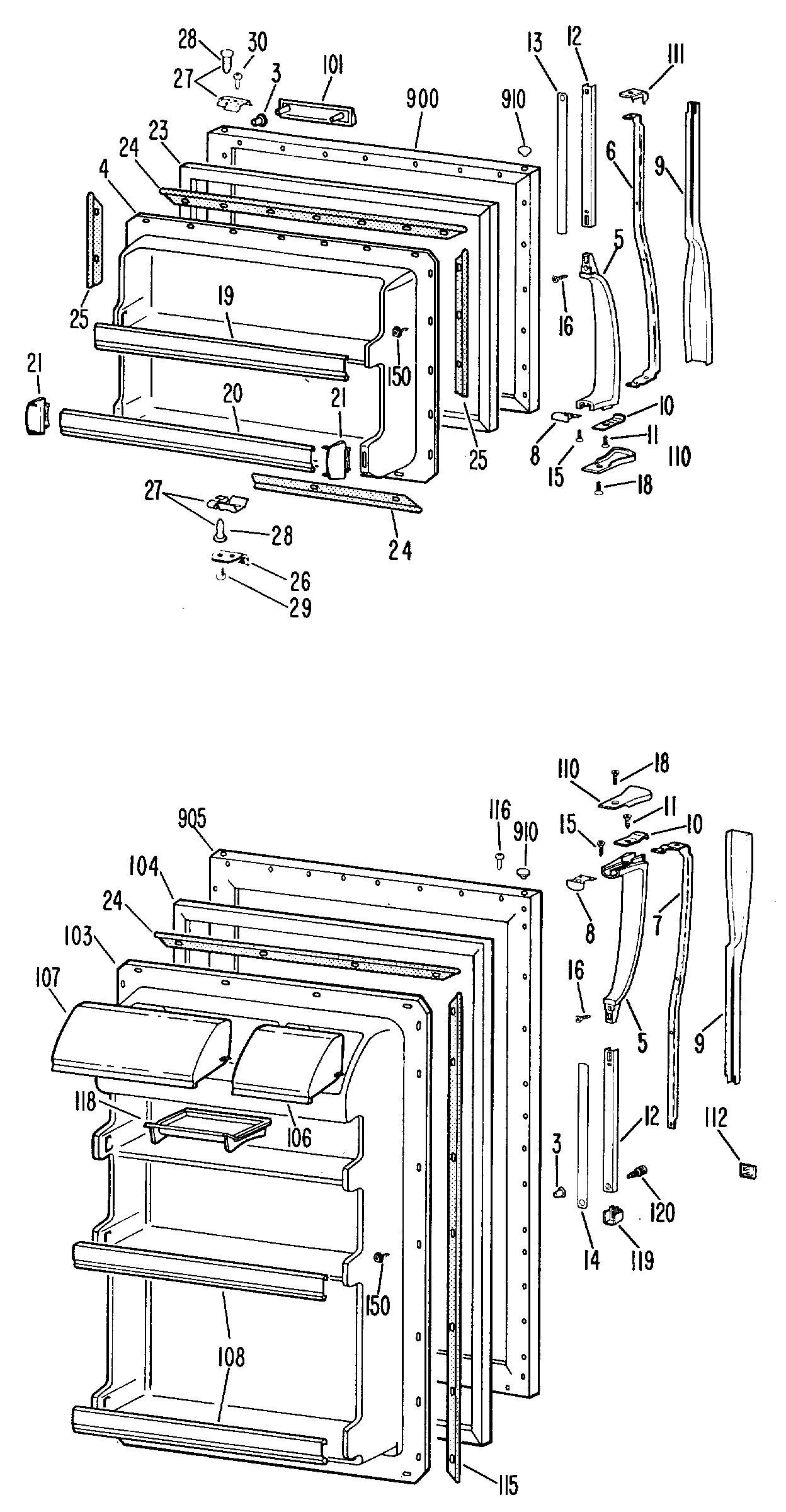

Position	Product
3	GEN WR02X3757
4	GEN WR77X0408
5	GEN WR12X0463
6	GEN WR12X0468
7	GEN WR12X0469
8	GEN WR02X4924
9	GEN WR12X0470
10	GEN WR02X4925
11	SCREW 8-18 B 7/16
12	GEN WR12X0471
13	GEN WR02X4945
14	GEN WR02X4946
15	GEN WR01X1564
16	GEN WR01X1565
18	GEN WR01X1566
19	GEN WR17X1619
20	GEN WR17X1620
21	GEN WR02X4981
23	GEN WR24X0308
24	GEN WR17X1589
25	GEN WR17X1209
26	GEN WR02X6293
27	GEN WR02X6277
28	GEN WR02X6278
30	SCREW
101	GEN WR03X0396
103	GEN WR77X0409
104	GEN WR24X0309
106	GEN WR22X0271
107	GEN WR22X0278
108	GEN WR17X1621
110	GEN WR02X4927
111	GEN WR02X4929
112	GEN WR04X5058
115	GEN WR17X1530
116	GEN WR01X1570
118	GEN WR19X0024
119	GEN WR02X4928
120	GEN WR01X1592
150	SCREW SW. CRADLE
200	GEN WR17X1599
201	GEN WR17X1597
202	GEN WR02X7019
203	GEN WR17X1604
204	SUPT-MULLION & NUTSTRIP
204	FOAM STRIP MULLION
205	GEN WR02X7060
206	GEN WR71X1524
207	PLENUM
209	GEN WR02X7015
210	GEN WR02X7016
211	GEN WR02X6261
212	GEN WR71X1508
213	WR30X311 GE Refrigerator Ice Tray
219	GEN WR51X0257
228	GEN WR71X1523
230	GEN WR38X0971
231	GEN WR02X3440
232	GEN WR72X0076
233	GEN WR72X0077
233	GEN WR02X7018
236	GEN WR32X0758
237	GEN WR17X1616
240	GEN WR32X0726
241	GEN WR17X1564
242	WR32X5206 GE Refrigerator Vegetable Cover
243	GEN WR32X0765
244	GEN WR17X1622
245	COVER VEG. PAN
249	SUPPORT PAN COVER
252	COVER PAN
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	CHANNEL SUPPT COVER
260	WR2X8474 GE Fill Tube
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3595
265	GEN WR02X3598
267	GEN WR82X0217
268	PAN WATER DISPOSAL ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0527
277	GEN WR17X1492
278	WHEEL ASM FRT
279	GEN WR02X7063
280	GEN WR02X7190
281	GEN WR01X1600
281	GEN WR01X1114
281	GEN WR01X1355
282	GEN WR13X0519
283	SHIM HINGE-.031 THK.
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GEN WR02X7079
288	GEN WR74X0179
289	GEN WR02X7154
290	GEN WR02X7080
290	GEN WR02X7155
291	GEN WR74X0177
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	GEN WR02X7061
300	CONTROL TEMP
301	GEN WR02X7146
301	SLEEVE VINYL
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7139
305	GEN WR02X7009
306	GEN WR17X1605
306	INSUL CONTROL HSG
307	GEN WR17X1598
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
317	GEN WR02X7075
317	GEN WR02X7076
318	GEN WR17X1600
318	GEN WR17X1601
320	WR2X3139 GE Refrigerator Plug Button
321	PLUG BUTTON SIDE & FRZ.
321	GEN WR02X4532
322	GEN WR02X6345
323	GEN WR17X1594
422	GEN WR01X1332
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
452	SHIM HINGE BTM.
452	GEN WR02X7011
453	NUT STRIP
551	GEN WZ04X0244
553	SCR 6-20 B TR 1/4 SS
560	GEN WR01X1249
562	SCR 12-24 TT HXW 1 3/64S
564	SCR 6-20 AB TR 3/8 SS
564	GEN WR01X1194
566	GEN WR01X1487
568	SCREW
570	GEN WZ04X0331
573	GEN WZ04X0254
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	LINER BTM FZ
604	GEN WR02X7072
604	GEN WR17X1603
608	GEN WR17X1595
609	WR23X37285 GE Light Switch
610	GEN WR60X0130
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP FAN
613	WR60X123 GE Fan Blade Black
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
616	SHIELD DEF HTR
617	COVER DEF HTR
618	HEATER DEF ASM
620	WR50X60 GE Refrigerator Defrost Thermostat
621	GEN WR02X4495
621	BRACKET DEF HTR
622	TROUGH DRAIN ASM
623	COVER DUCT FF
623	GEN WR14X0289
624	GEN WR17X1593
626	WR1X5278 GE Refrigerator Cable Clamp
626	WR23X10300 GE Refrigerator Power Cord Assembly
628	GEN WR02X7026
630	WR2X4097 GE Button Plug
631	PLUG BTN (.875 DIA.HOLE)
631	GEN WR02X4829
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	GEN WR02X2375
644	TONGUE ASM
648	WR9X502 GE Refrigerator Defrost Timer
649	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR02X4191
653	GEN WR01X1515
654	BRACKET COND FAN
655	GEN WR01X1601
676	GEN WZ04
682	SCR 8-36 T HX 7/16 S XTW
683	SCREW FAN MTR/BRKT
684	SCREW
685	SCR 1/4-14 AB HX 1/2S NS
686	WZ5X158D GE Screw Package of 12
687	SCREW 6-18 X 1/2" ROUND
689	WZ5X246 GE Screw
692	SCREW
692	SCR 8-18 AB HX 1/2 S PL
694	GEN WZ05X0247
725	MACHINE HIGH SIDE
725	REFRIGERANT
726	MACHINE LOW SIDE
730	COND ASM
731	CLIP COND
733	RELAY COMP
734	COVER RELAY
734	GEN WR02X3583
735	GEN WR08X0030
736	COVER COMP MTG BRKT
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	NUTSTRIP COMP MTG D/J
750	GEN WR82X0177
900	GEN WR78X7131
900	GEN WR78X7132
900	GEN WR78X7130
900	GEN WR78X7129
900	GEN WR78X7128
905	GEN WR78X7133
906	GEN WR78X7134
907	GEN WR78X7135
908	GEN WR78X7136
909	GEN WR78X7137
910	GEN WR02X4930
911	GEN WR02X4931
912	GEN WR02X4932
913	GEN WR02X4933
914	GEN WR02X4934
9999	GEN 49-6330
