TBF20DFCR

TBF20DFCR

Written by

in

TBF20DFCR

Products

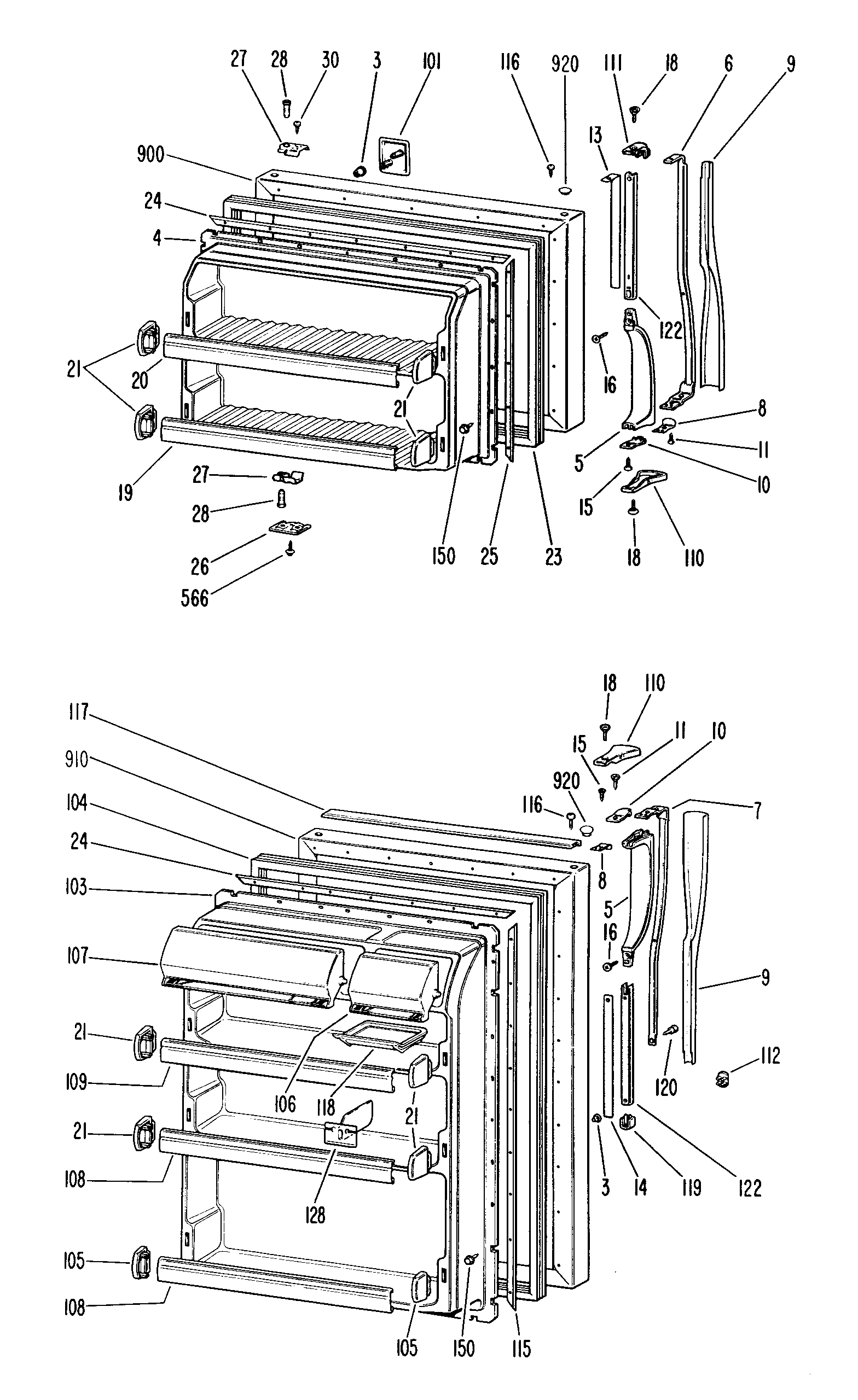

Position	Product
3	GEN WR02X3757
4	GEN WR77X0444
5	GEN WR12X0463
6	GEN WR12X0468
7	GEN WR12X0469
8	GEN WR02X4924
9	GEN WR12X0509
10	GEN WR02X7140
11	SCREW 8-18 B 7/16
13	GEN WR02X4945
14	GEN WR02X4946
15	GEN WR01X1564
16	GEN WR01X1565
18	GEN WR01X1566
19	GEN WR71X1685
20	GEN WR71X1684
21	GEN WR02X7232
23	GEN WR24X0308
24	GEN WR17X1589
25	GEN WR17X1209
26	GEN WR02X7230
27	GEN WR02X7229
28	GEN WR02X6278
30	SCREW
101	GEN WR03X0408
103	GEN WR77X0446
104	GEN WR24X0309
105	GEN WR02X7233
106	GEN WR22X0303
107	GEN WR22X0308
108	GEN WR71X1686
109	GEN WR71X1687
110	GEN WR02X7231
111	GEN WR02X4929
112	GEN WR04X0173
115	GEN WR17X1530
116	GEN WR01X1570
117	GEN WR38X1033
119	GEN WR02X4928
120	GEN WR01X1592
122	GEN WR12X0471
128	GEN WR02X7234
150	SCREW SW. CRADLE
176	GEN WZ05X0166
200	GEN WR17X1599
201	GEN WR17X1597
202	GEN WR02X7019
203	GEN WR17X2017
203	GEN WR14X0316
204	SUPT-MULLION & NUTSTRIP
204	GEN WR01X1655
205	GEN WR02X7060
206	GEN WR71X1527
207	GEN WR14X0313
207	PLENUM
208	GEN WR38X0974
209	GEN WR02X7015
210	GEN WR02X7016
211	GEN WR02X6261
212	GEN WR71X1508
213	WR30X311 GE Refrigerator Ice Tray
215	GEN WR32X0701
218	GEN WR14X0329
219	GEN WR51X0303
228	GEN WR71X1639
229	GEN WR71X1640
230	GEN WR38X0971
231	GEN WR02X3440
231	GEN WR38X0977
232	GEN WR72X0076
233	GEN WR02X7018
233	GEN WR72X0077
234	GEN WR14X0292
236	GEN WR32X0866
237	GEN WR17X1612
240	PAN VEG
241	GEN WR17X1548
242	GEN WR32X0826
243	GEN WR32X0844
244	GEN WR02X7052
244	GEN WR17X1611
245	GEN WR32X0845
249	GEN WR02X7249
252	GEN WR32X0746
253	GEN WR17X1923
254	GASKET COVER FRT
255	GEN WR38X0970
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	GEN WR17X2029
259	GEN WR14X0294
260	WR2X8474 GE Fill Tube
263	GEN WR14X0324
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3598
265	GEN WR02X3595
266	GEN WR30X0198
267	GEN WR82X0217
268	PAN WATER DISPOSAL ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0561
277	GEN WR17X1492
278	WHEEL ASM FRT
279	GEN WR13X0562
281	GEN WR01X1114
281	GEN WR01X1355
282	GEN WR13X0553
283	NUTSTRIP HINGE
283	SHIM HINGE-.031 THK.
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GEN WR74X0179
289	GEN WR02X7154
290	GEN WR02X7155
291	GEN WR74X0177
292	GEN WR01X1326
292	PLUG BUTTON
293	GEN WR02X7080
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	CONTROL TEMP
300	GEN WR02X7061
301	SLEEVE VINYL
301	GEN WR02X7146
302	GEN WR14X0312
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7139
305	GEN WR02X7009
306	INSUL CONTROL HSG
306	GEN WR17X1605
307	GEN WR17X1598
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
317	GEN WR02X7076
317	GEN WR02X7075
318	GEN WR17X1601
318	GEN WR17X1600
321	GEN WR02X4532
322	GEN WR02X6345
323	GEN WR17X1594
324	PLUG BUTTON LG WH
422	GEN WR01X1332
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
553	SCR 6-20 B TR 1/4 SS
564	GEN WR01X1194
566	GEN WR01X1487
573	GEN WZ04X0254
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	LINER BTM FZ
604	GEN WR17X2015
604	GEN WR02X7072
608	GEN WR17X2016
609	WR23X37285 GE Light Switch
616	SHIELD DEF HTR
617	COVER DEF HTR
618	HEATER DEF ASM
620	WR50X60 GE Refrigerator Defrost Thermostat
621	BRACKET DEF HTR
622	TROUGH DRAIN ASM
623	GEN WR14X0289
623	COVER DUCT FF
624	GEN WR17X1593
626	WR1X5278 GE Refrigerator Cable Clamp
626	WR23X10300 GE Refrigerator Power Cord Assembly
628	GEN WR02X7026
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	GEN WR02X2375
644	TONGUE ASM
648	WR9X502 GE Refrigerator Defrost Timer
649	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR01X1683
653	GEN WR01X1515
654	BRACKET COND FAN
655	GEN WR01X1601
682	GEN WX06X0134
683	SCREW FAN MTR/BRKT
684	SCREW
685	SCR 1/4-14 AB HX 1/2S NS
687	SCREW 6-18 X 1/2" ROUND
689	WZ5X246 GE Screw
692	SCR 8-18 AB HX 1/2 S PL
692	SCREW
694	GEN WZ05X0247
725	REFRIGERANT
725	MACHINE HIGH SIDE
726	MACHINE LOW SIDE
730	COND ASM
731	CLIP COND
733	RELAY COMP
734	COVER RELAY
734	GEN WR02X3583
735	GEN WR08X0030
736	COVER COMP MTG BRKT
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	NUTSTRIP COMP MTG D/J
900	GEN WR78X7414
904	GEN WR78X7418
905	GEN WR78X7595
910	GEN WR78X7419
914	GEN WR78X7423
915	GEN WR78X7596
920	GEN WR02X4930
924	GEN WR02X4934
925	GEN WR02X7241
9999	GEN 31-5007
9999	GEN 49-6359
