TBF21BAB

TBF21BAB

Written by

in

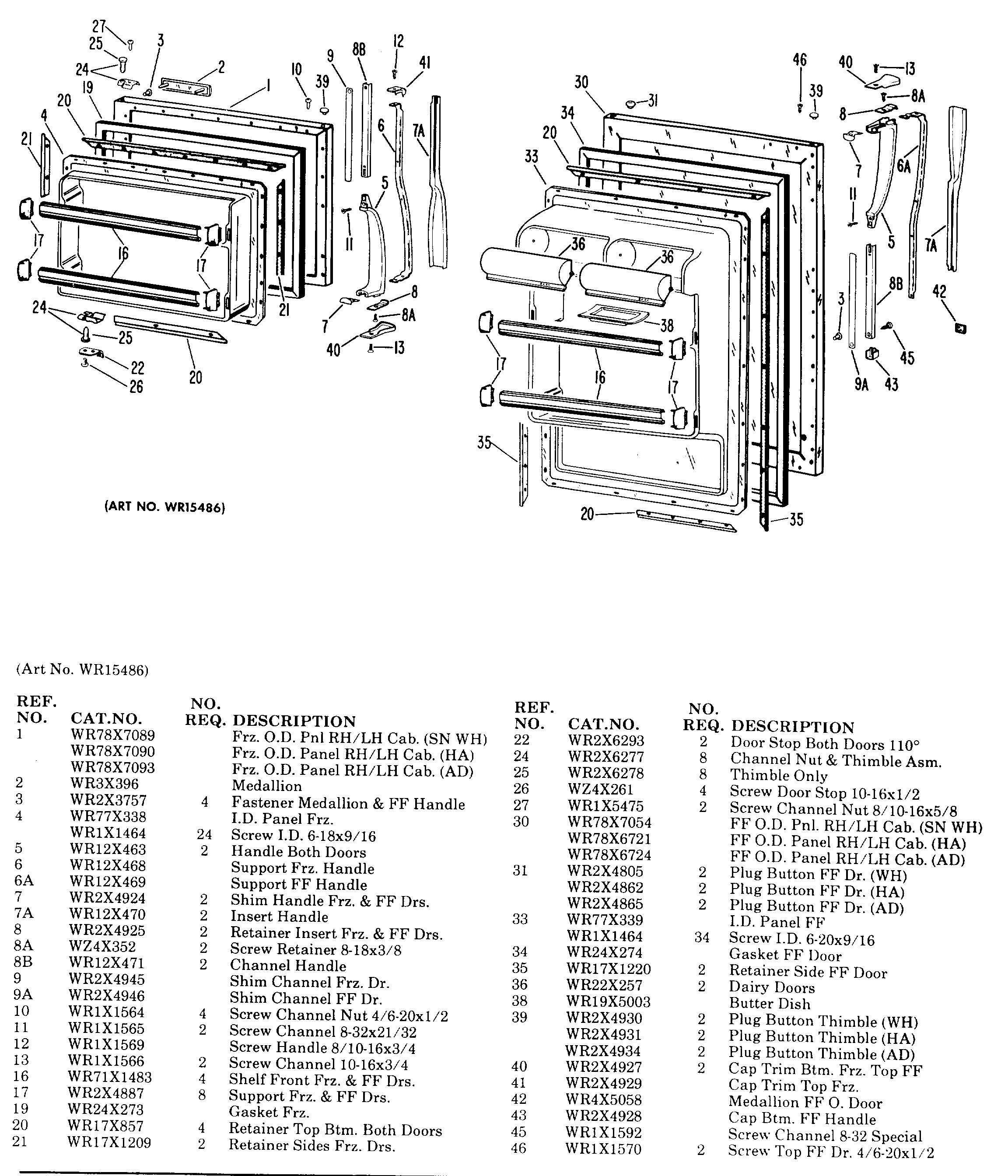

TBF21BAB

Products

Position	Product
1	GEN WR78X7093
1	GEN WR78X7090
1	GEN WR78X7089
2	GEN WR03X0396
3	GEN WR02X3757
4	GEN WR77X0338
5	GEN WR12X0463
6	GEN WR12X0468
6	GEN WR12X0469
7	GEN WR02X4924
7	GEN WR12X0470
8	SCREW 8-18 B 7/16
8	GEN WR12X0471
8	GEN WR02X4925
9	GEN WR02X4946
9	GEN WR02X4945
10	GEN WR01X1564
11	GEN WR01X1565
12	GEN WR01X1569
13	GEN WR01X1566
16	GEN WR71X1483
17	GEN WR02X4887
19	GEN WR24X0273
20	GEN WR17X0857
21	GEN WR17X1209
22	GEN WR02X6923
24	GEN WR02X6277
25	GEN WR02X6278
27	SCREW
30	GEN WR78X6721
30	GEN WR78X7054
30	GEN WR78X6724
31	GEN WR02X4862
31	GEN WR02X4865
31	GEN WR02X4805
33	SCREW SW. CRADLE
33	GEN WR77X0339
34	GEN WR24X0274
35	GEN WR17X1220
36	GEN WR22X0257
38	GEN WR19X5003
39	GEN WR02X4930
39	GEN WR02X4934
39	GEN WR02X4931
40	GEN WR02X4927
41	GEN WR02X4929
42	GEN WR04X5058
43	GEN WR02X4928
45	GEN WR01X1592
46	GEN WR01X1570
50	GEN WR02X4222
50	HINGE TOP & PIN ASM
50	NUTSTRIP TOP HINGE
51	GEN WR01X1249
51	GEN WR02X4194
52	SCR 12-24 HXW 7/8 S PP
53	NUT STRIP
53	GEN WR02X6280
53	GEN WR13X5133
54	GEN WR01X1355
54	GEN WR02X6281
55	GEN WR02X4922
56	GROMMET DOOR STOP
57	GEN WR13X0519
57	POP RIVET
58	GEN WR02X7011
59	SCR 12-24 TT HXW 1 3/64S
60	WASHER
62	BREAKER STRIP-TOP-FRZ.
63	BRKR STRIP R SIDE FRZ RH
64	GEN WZ05X0205
64	BRKR. STRIP L. SIDE-FRZ.
65	BREAKER STRIP BTM.-FRZ.
66	CLIP (EXPANSION) – BRKR.
66	SCREW FAN MTR/BRKT
66	BRACKET-MULLION
66	GASKET-MULLION
66	MULLION X-PCS.
66	GEN WZ04X0283
66	RIVET POP
66	SCREW MULLION 10-16X3/8
68	BREAKER STRIP-TOP-FF
69	GEN WR02X4777
69	BREAKER STRIP R. SIDE FF
70	BRKR. STRIP-L. SIDE-FF-R
71	GASKET CORNER
71	BREAKER STRIP-BTM.-FF
72	SHELF CANTILEVER WIRE
74	TRIM SHELF
75	GEN WR01X5433
75	GEN WR72X0063
76	GEN WR02X4532
77	WR2X3139 GE Refrigerator Plug Button
78	PLUG BUTTON-LNR. SIDE (.
79	SCR 8-15 A PA 3/4 SS
79	COVER IM RECEPTACLE
80	PLUG BUTTON FILL TUBE
80	GEN WR02X3248
80	GEN WR02X4628
80	TUBE WATER FILL (2.5")
80	GROMMET-O.C. WATER FILL
81	WR2X4097 GE Button Plug
83	WZ4X241D GE Screw Package
83	WZ5X158D GE Screw Package of 12
83	GEN WR01X1326
83	GEN WR23X0162
84	GEN WR32X0743
86	GEN WR32X0681
87	GEN WR32X0742
88	HANDLE PAN
91	GEN WR32X0604
92	SUPPORT-REAR-VEG. PANS
93	SUPPORT COVER
94	GEN WR02X4899
95	SUPPORT POST
96	GASKET FRONT V.
97	GEN WR14X0279
100	GEN WR02X4626
101	DRAIN SPOUT-CN-C
102	GRILLE-FRZ. OUTLET
102	GEN WZ04X0244
103	LINER SCREW
103	GEN WR04X5044
103	GEN WR17X5661
104	WR1X5278 GE Refrigerator Cable Clamp
104	GEN WR17X1400
104	SCREW
104	GEN WR02X4516
105	R-E-D SERVICE PKG.
107	COVER
107	SCR 8-18 AB TR 5/8SS PLW
111	GEN WR71X5890
112	GEN WR02X4855
113	GEN WR02X6263
114	GEN WR02X6110
117	GEN WR38X5213
117	GEN WR02X3440
120	BAFFLE AIR COND FAN
121	BAFFLE AIR EXTN BTM
121	GEN WR02X3863
122	COVER ACCESS ASM
122	WD2X5166 GE Dishwasher Screw
123	HARNESS- O DOOR RECESS
124	GEN WR02X4668
125	GEN WR02X4669
127	GEN WR02X4098
128	GEN WR02X4099
129	GEN WR01X1194
130	GEN WR23
200	GEN WR02X3899
200	BRACKET-FRZ. BTM.
200	LINER BTM.-FRZ.
201	GASKET & NOZZLE ASM.
201	GASKET-SIDES
201	GASKET-TOP
201	EVAPORATOR HOUSING & COV
201	COVER ONLY
202	SCREW 10-24X1/2
202	SEAL DRAIN
202	LINER TOP-FF
202	SCREW 8-40X1/2 SPEC DRIL
204	SCR 8-18 BAT TR 3/4SSPLW
204	GEN WR17X1215
205	GEN WR51X0236
205	GEN WR02X4495
206	DEFLECTOR HEATER
207	SCREW
207	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
207	GEN WR17X1026
208	REFRIGERANT
208	WR87X10082 GE Refrigerator Compressor Replacement Kit
209	BAFFLE (FIBER)-CONDENSER
211	GEN WR83X0071
211	FOAM BLOCK EVAP.
212	GEN WR84X0023
212	CLIP COND
213	CUP & BRACKET ASM-R. SIDE
214	CUP & BRACKET ASM-L. SIDE
215	SLEEVE COMP MTG
216	EXT COMP MTG
217	STUD
217	GEN WR02X2375
217	TONGUE ASM
218	SCREW MACHINE MTG. REAR 1/4-14 X 7/8
219	NUTSTRIP COMP MTG D/J
220	BRACKET DEF CONTROL
220	GEN WZ04X0220
220	WR9X480 GE Defrost Timer
221	RELAY COMP
221	COVER RELAY
221	GEN WR02X3583
222	GEN WR08X0044
223	WR60X177 GE Condenser Fan Motor
224	GEN WR60X0117
224	GEN WR02X4191
225	GEN WR01X1515
226	BRACKET COND FAN
226	SCR 8-36 T HX 7/16 S XTW
227	GEN WR02X6194
227	SCR 8-18 AB HX 3/8 S
227	GEN WR60X0108
227	BRACKET SMALL
228	BRACKET-ORIFICE
228	ORIFICE EVAP. FAN
228	GEN WR14X0252
228	SCREW 8-32X1/2
230	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
231	SCR 10-24 SPEC DRILL PT
231	GEN WR02X2945
231	GEN WZ05X0197
232	WR86X25269 GE Refrigerator R134 Dryer
233	SUPPORT-FRZ.-REAR
233	GEN 49-6285-2
233	GEN 30-6030
