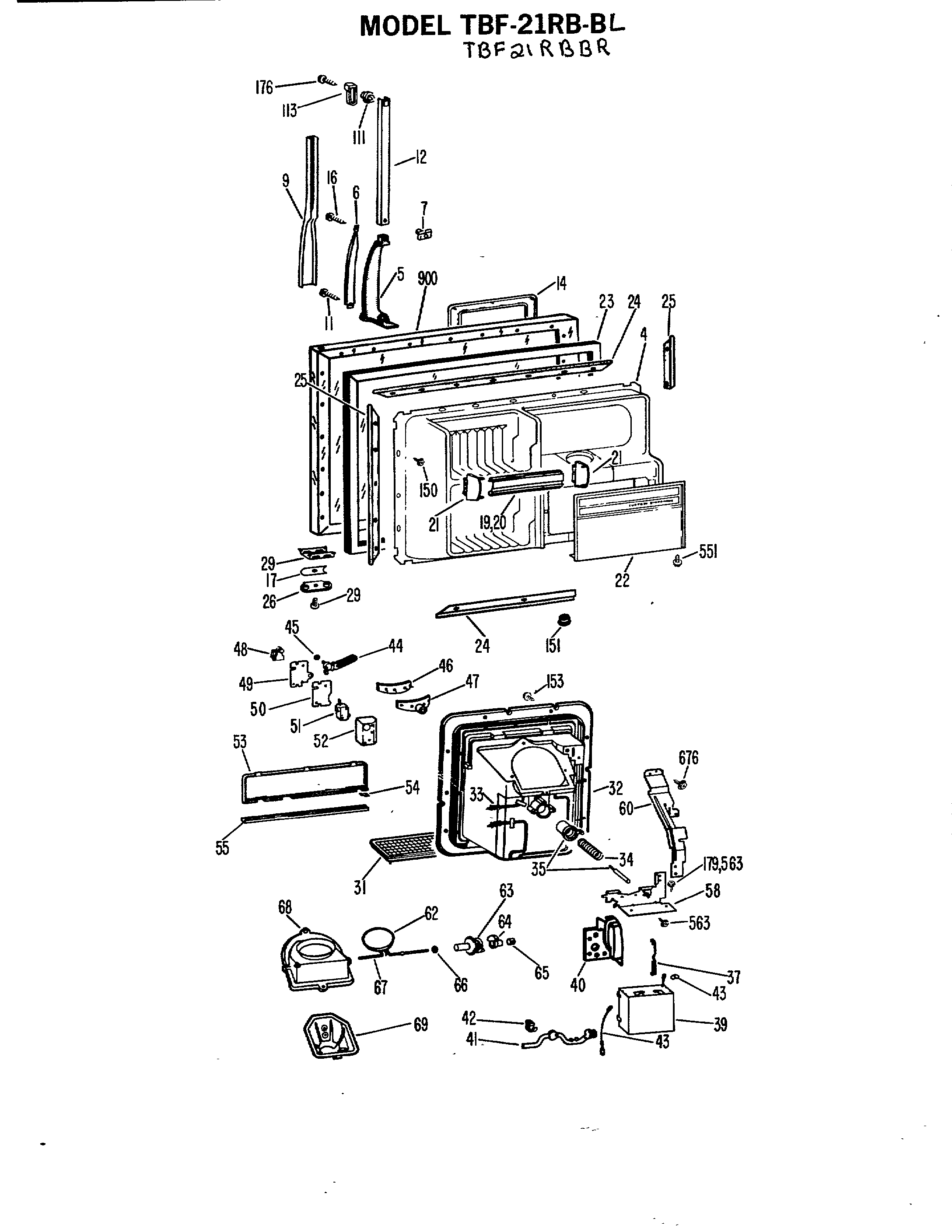

TBF21RBBL

TBF21RBBL

Written by

in

TBF21RBBL

Products

Position	Product
4	GEN WR77X0384
5	GEN WR12X0451
6	GEN WR12X0452
7	GEN WR01X1246
9	GEN WR12X0470
11	GEN WZ04X0358
12	GEN WR12X0471
14	GEN WR38X0877
14	GEN WR01X5432
14	GEN WR01X1551
16	GEN WZ05X0227
17	GEN WR02X4948
19	GEN WR71X1496
20	GEN WR71X1463
21	GEN WR02X4981
22	GEN WR17X1514
23	GEN WR24X0291
24	GEN WR17X0857
25	GEN WR17X1209
26	GEN WR02X6293
27	GEN WR02X6277
28	GEN WR02X6278
28	GEN WR14X0261
29	GEN WR02X4744
30	SCREW
31	GEN WR02X5997
32	GEN WR17X1354
32	GEN WR02X4757
33	GEN WR51X0253
34	SPRING-RECESS DUCT
35	PLUNGER SCW & SLEEVE
37	GEN WR02X4248
39	GEN WR09X0268
40	GEN WR23X0177
41	GEN WR17X1048
42	GEN WR02X4234
43	GEN WR02X4069
43	GEN WR02X4749
44	GEN WR02X4685
45	GEN WR02X4240
46	GEN WR02X3950
47	GEN WR02X3948
48	GEN WR02X4236
49	GEN WR02X4592
50	GEN WR02X4591
51	SWITCH SELECT-CUBES DISP
52	GEN WR02X4593
53	GEN WR02X4748
54	GEN WR02X4231
55	GEN WR38X0851
57	GASKET RECESS DISP
58	GEN WR17X1370
60	GEN WR02X4750
62	GEN WR17X1255
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	GEN WR14X0260
68	GEN WR17X1355
68	PAD-R & L SIDES
69	GEN WR17X1256
80	GEN WR02X4947
102	GEN WR02X4990
103	GEN WR77X0385
104	GEN WR24X0292
106	GEN WR22X0266
107	GEN WR22X0267
109	GEN WR71X1497
111	GEN WR01X1247
113	GEN WR12X0320
114	GEN WR02X4582
114	GEN WR72X0068
114	GEN WR02X4581
114	GEN WR02X4984
115	GEN WR17X1220
117	GEN WR38X0975
118	GEN WR19X5003
121	GEN WR12X0432
122	GEN WR12X0473
150	SCREW SW. CRADLE
153	GEN WR02X5932
153	WR1X1505D GE Refrigerator Screw Package of 12
176	GEN WZ05X0166
179	SCREW
200	GEN WR40X1554
201	BREAKER STRIP-TOP-FRZ.
201	GASKET CORNER
202	BRKR STRIP R SIDE FRZ RH
204	BREAKER STRIP BTM.-FRZ.
204	CLIP (EXPANSION) – BRKR.
205	SCREW MULLION 10-16X3/8
206	GEN WR71X1498
209	GEN WR02X4764
210	SWITCH – FAN – FRZ.
211	GEN WR02X4763
214	GEN WR02X6110
217	GEN WR38X0940
219	GEN WR51X5199
220	SUPPORT SHELF
221	GEN WR02X4922
222	GROMMET DOOR STOP
224	GEN WR17X1400
226	DRAIN SPOUT-CN-C
227	GEN WR51X0252
228	GEN WR71X1499
229	GEN WR17X1607
230	GEN WR14X0311
231	GEN WR02X3440
232	GEN WR72X0063
233	TRACK-CENTER
234	PLUG BUTTON-LNR. SIDE (.
235	GEN WR38X0948
236	MEAT PAN
237	HANDLE MT. PAN
238	SWITCH LIGHT
239	SUPPORT-REAR-VEG. PANS
240	VEG. PAN
242	GEN WR32X0604
243	VEG. PAN
244	HANDLE VEG. PAN R. SIDE
244	GEN WR02X7045
246	GASKET FRONT V.
247	GEN WR14X0279
248	SUPPORT-REAR
250	SUPPORT COVER
251	GEN WR02X4899
252	SUPPORT POST
255	GEN WR03X0399
256	SWITCH POWER SAVER
256	GEN WR02X4677
257	BRACKET DEF CONTROL
257	WR9X480 GE Defrost Timer
257	SCR 6-32 D TR 3/8 SS
258	MULLION X-PCS.
259	GASKET-MULLION
259	BRACKET-MULLION
260	GEN WR49X0238
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3598
265	GEN WR02X3595
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
269	GEN WR01X1543
270	WR2X4754 GE Refrigerator Fill Clamp
272	COVER
273	GEN WR49X0219
275	GEN WR13X0506
276	NUTSTRIP TOP HINGE
276	GEN WR02X6281
276	GEN WR13X5133
277	RAIL MACH MTG FRT
278	WHEEL ASM FRT
279	GEN WR02X7063
280	NUTSTRIP-CTR HINGE
281	GEN WR01X1600
281	WASHER
282	GEN WR13X0519
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
287	GEN WR02X3863
288	GRILLE O. CASE
288	GEN WR02X7079
289	GEN WR02X7077
290	GEN WR02X7078
290	GEN WR02X7080
291	GEN WR74X0152
292	GEN WR01X1326
296	PLUG BUTTON FILL TUBE
300	CONTROL TEMP
301	SLEEVE-CONTROL BULB
301	GEN WR02X4510
302	GEN WR02X3613
304	KNOB & SHAFT DAMPER
306	GEN WR17X1211
308	GEN WR17X1511
314	GEN WR02X4516
315	GEN WR02X4626
316	GEN WR02X4628
320	GEN WR02X4830
322	GEN WR02X4752
323	GEN WR02X4772
325	WR17X2061 GE Refrigerator Crush Dispenser
326	GEN WR01X1585
326	GEN WR01X1366
326	WR1X1367D GE Refrigerator Return Package 12
327	BUSHING HELIX DISP
328	DEFLECTOR ICE DISP
328	GEN WR02X4561
328	EXTENSION – DEFLECTOR
328	WR2X4143 GE Refrigerator Pivot
329	GEN WR17X1359
330	GEN WR02X4759
331	GEN WR02X4758
332	WR17X1361 GE Refrigerator Blades Moving Display
333	WR17X1362 GE Refrigerator Middle Blade
334	WR17X1363 GE Refrigerator Blades Moving Display
335	GEN WR02X4139
336	WR17X2058 GE Refrigerator Dispenser Blade
337	WR2X4138 GE Refrigerator Spacer
338	WR2X4140 GE Refrigerator Blade Rest
339	GEN WR02X4141
345	GEN WR17X1364
346	HELIX FRONT DISP
347	BLADE HELIX DISP
348	GEN WR02X4137
349	WR2X4550 GE Refrigerator Drive Cup
350	GEN WR17X1360
351	CONE AUGER DISP
352	GEN WR30X0183
353	WR2X7905 GE Refrigerator Bucket Seal
354	GEN WR02X4564
354	GEN WR02X4563
354	GEN WR02X4761
355	GEN WR02X4760
356	GRILLE-FRZ. OUTLET
357	GEN WR14X0258
357	GEN WR02X4753
360	GEN WR17X1357
361	GEN WR17X1358
361	GEN WR02X4756
362	GEN WR02X4587
363	GEN WR02X4755
364	GEN WR02X4567
365	GEN WR02X4854
366	GEN WR01X1547
367	GEN WR01X1542
368	GEN WR02X6263
370	MOTOR AUGER DISP
375	GEN WR23X0183
377	GEN WR17X1369
381	WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
382	WR62X26536 GE Refrigerator Armature Kit
386	GEN WZ06X0077
387	SHIELD LIGHT FZ.
422	GEN WR01X1332
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
447	GEN WR02X4766
448	GEN WR02X4765
450	GEN WR02X4194
452	SHIM HINGE BTM.
452	GEN WR02X7011
453	NUT STRIP
454	BREAKER STRIP-TOP-FF
455	BREAKER STRIP-BTM.-FF
456	BREAKER STRIP R. SIDE FF
457	BRKR. STRIP-L. SIDE-FF-R
473	GEN WR17X1515
473	GEN WR17X1516
551	GEN WZ04X0244
554	GEN WZ05X0194
554	GEN WR01X1483
555	RIVET POP
557	SCREW 8-40X1/2 SPEC DRIL
560	GEN WR01X1249
561	SCR 12-24 HXW 7/8 S PP
562	SCR 12-24 TT HXW 1 3/64S
563	WZ4X241D GE Screw Package
564	SCR 6-20 AB TR 3/8 SS
564	GEN WR01X1194
568	SCREW
570	GEN WZ04X0331
572	WZ4X230D GE Screw Package 12
575	GEN WZ06X0100
578	WZ2X464D GE Screw
581	SCR 8-18 BAT TR 3/4SSPLW
584	GEN WZ02X0509
601	EVAPORATOR HOUSING & COV
602	COVER ONLY
603	LINER BTM.-FRZ.
603	GASKET-SIDES
603	GASKET-TOP
603	SCR 10-24 SPEC DRILL PT
603	BRACKET-FRZ. BTM.
604	GEN WR02X3899
608	LINER TOP-FF
610	GEN WR60X0126
611	GEN WR02X6194
612	BRACKET SMALL
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
616	GEN WR17X1026
617	DEFLECTOR HEATER
618	GEN WR51X0236
619	SUPPORT-FRZ.-REAR
620	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
621	GEN WR02X4495
624	GEN WR17X1215
624	SEAL DRAIN
626	WR23X10300 GE Refrigerator Power Cord Assembly
630	WR2X4097 GE Button Plug
631	PLUG BTN (.875 DIA.HOLE)
631	GEN WR02X4829
632	GASKET & NOZZLE ASM.
634	GEN WR14X0252
634	BRACKET-ORIFICE
634	ORIFICE EVAP. FAN
644	TONGUE ASM
644	GEN WR02X2375
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR02X7094
653	GEN WR01X1515
654	BRACKET COND FAN
675	SCR 8-18 AB TR 5/8SS PLW
676	WD2X5166 GE Dishwasher Screw
678	SCR 8-32 T PH PAN 1/2 S
678	SCREW 10-24X1/2
679	SCR 8-18 AB HX 3/8 S
679	SCREW BRKT. EVAP. FAN
681	SCREW – RETAINER
682	SCR 8-36 T HX 7/16 S XTW
683	SCREW FAN MTR/BRKT
685	SCR 1/4-14 AB HX 1/2S NS
686	WZ5X158D GE Screw Package of 12
687	SCREW 6-18 X 1/2" ROUND
725	WR87X10082 GE Refrigerator Compressor Replacement Kit
725	REFRIGERANT
726	MACHINE LOW SIDE
727	FOAM BLOCK EVAP.
730	GEN WR84X0023
731	CLIP COND
732	CUP & BRACKET ASM-R. SIDE
732	CUP & BRACKET ASM-L. SIDE
734	COVER RELAY
734	GEN WR02X3583
734	RELAY COMP
735	GEN WR08X0044
737	SLEEVE COMP MTG
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	NUTSTRIP COMP MTG D/J
746	GEN WR02X4780
750	GEN WR82X0177
800	GEN WR57X0069
801	GEN WR62X0025
802	ELBOW
802	GEN WR01X1360
803	WASHER-NUT
803	NUT-VALVE INLET
804	WR57X57 GE Refrigerator Nut
805	WR1X5278 GE Refrigerator Cable Clamp
806	WR17X1948 GE Refrigerator Water Line
808	WR2X4039 GE Refrigerator Clamp
808	GEN WR02X4841
820	SCREW – PAN HEAD RECESS
820	GEN WR30X0187
821	GEN WR29X0112
821	WR29X98 GE Refrigerator Retainer
822	GEN WR01X1544
825	GEN WR29X0088
826	GEN WR29X0089
827	GEN WR01X1541
827	GEN WR14X0259
841	GEN WR01X1221
905	GEN WR78
925	GEN WR02X7059
925	GEN WR02X7055
925	GEN WR02X7057
925	GEN WR02X7058
925	GEN WR02X7056
930	GEN WR38X0919
930	GEN WR38X0918
930	GEN WR38
