TBFA21DAB

TBFA21DAB

Written by

in

TBFA21DAB

Products

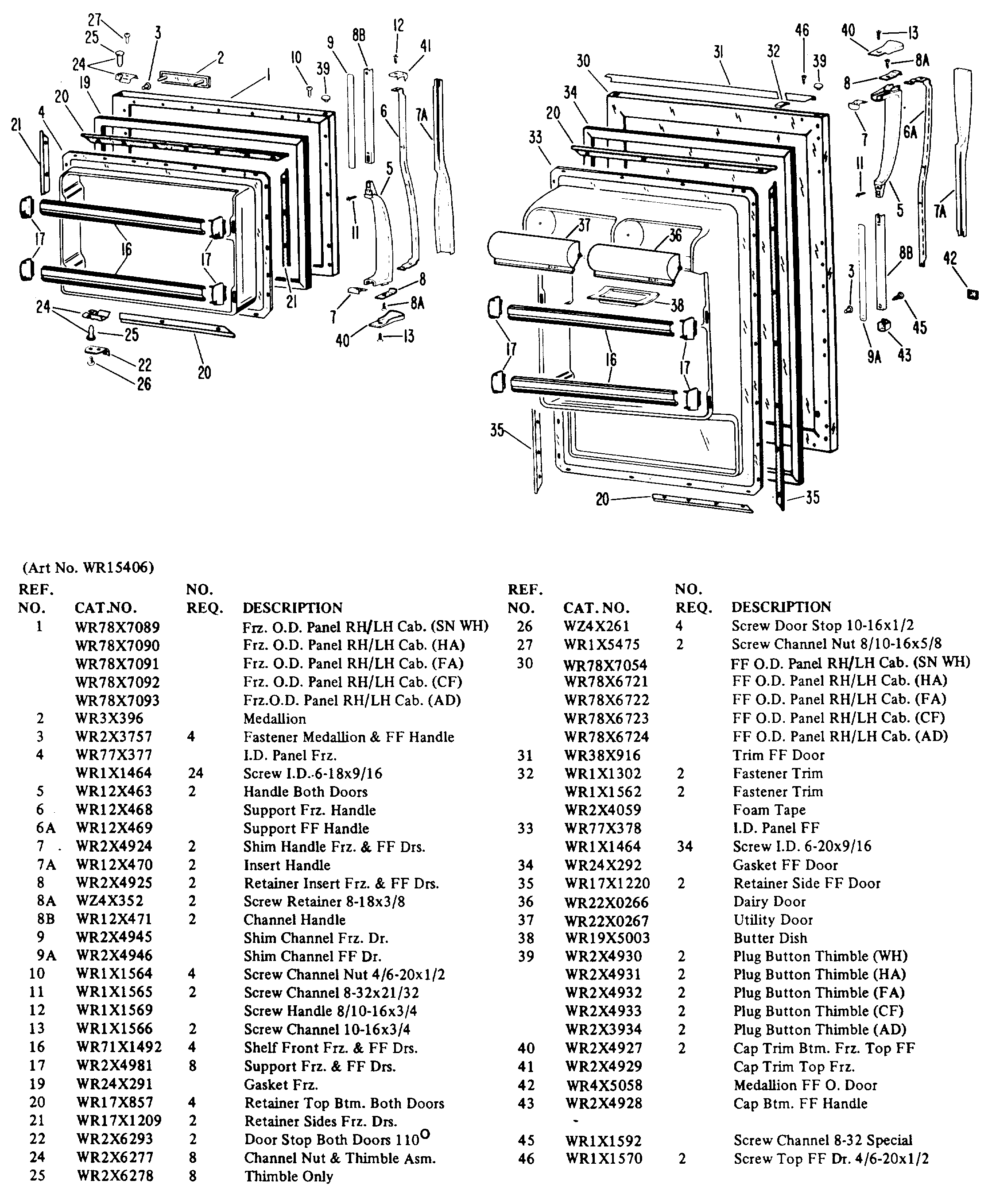

Position	Product
1	GEN WR78X7090
1	GEN WR78X7093
1	GEN WR78X7092
1	GEN WR78X7091
1	GEN WR78X7089
2	GEN WR03X0396
3	GEN WR02X3757
4	GEN WR77X0377
5	GEN WR12X0463
6	GEN WR12X0469
6	GEN WR12X0468
7	GEN WR12X0470
7	GEN WR02X4924
8	GEN WR12X0471
8	GEN WR02X4925
8	SCREW 8-18 B 7/16
9	GEN WR02X4946
9	GEN WR02X4945
10	GEN WR01X1564
11	GEN WR01X1565
12	GEN WR01X1569
13	GEN WR01X1566
16	GEN WR71X1492
17	GEN WR02X4981
19	GEN WR24X0291
20	GEN WR17X0857
21	GEN WR17X1209
22	GEN WR02X6293
24	GEN WR02X6277
25	GEN WR02X6278
27	SCREW
30	GEN WR78X7054
30	GEN WR78X6722
30	GEN WR78X6724
30	GEN WR78X6721
30	GEN WR78X6723
31	GEN WR38X0916
32	FASTENER – TRIM
32	GEN WR01X1562
32	GEN WR02X4059
33	SCREW SW. CRADLE
33	GEN WR77X0378
34	GEN WR24X0292
35	GEN WR17X1220
36	GEN WR22X0266
37	GEN WR22X0267
38	GEN WR19X5003
39	GEN WR02X4933
39	GEN WR02X4932
39	GEN WR02X3934
39	GEN WR02X4931
39	GEN WR02X4930
40	GEN WR02X4927
41	GEN WR02X4929
42	GEN WR04X5058
43	GEN WR02X4928
45	GEN WR01X1592
46	GEN WR01X1570
50	NUTSTRIP TOP HINGE
50	GEN WR02X4222
50	HINGE TOP & PIN ASM
51	GEN WR01X1249
51	GEN WR02X4194
52	SCR 12-24 HXW 7/8 S PP
53	GEN WR13X5133
53	NUT STRIP
53	GEN WR02X7063
54	GEN WR01X1355
54	GEN WR02X6281
55	GEN WR02X4922
56	GROMMET DOOR STOP
57	POP RIVET
57	GEN WR13X0519
58	GEN WR02X7011
59	SCR 12-24 TT HXW 1 3/64S
60	WASHER
61	SUPPORT ICE TRAY SHELF
61	GROMMET SCREW (.375 SQ.
62	BREAKER STRIP-TOP-FRZ.
63	BRKR STRIP R SIDE FRZ RH
64	BRKR. STRIP L. SIDE-FRZ.
64	GEN WZ05X0205
65	BREAKER STRIP BTM.-FRZ.
66	CLIP (EXPANSION) – BRKR.
66	MULLION X-PCS.
66	GEN WZ04X0283
66	BRACKET-MULLION
66	RIVET POP
66	SCREW FAN MTR/BRKT
66	SCREW MULLION 10-16X3/8
66	GASKET-MULLION
68	BREAKER STRIP-TOP-FF
69	BREAKER STRIP R. SIDE FF
69	GEN WR02X4777
70	BRKR. STRIP-L. SIDE-FF-R
71	GASKET CORNER
71	BREAKER STRIP-BTM.-FF
72	SHELF CANTILEVER WIRE
73	GEN WR38X0941
73	CIIP – TRIM
74	GEN WR38X0940
74	GEN WR02X3440
75	GEN WR01X5433
75	GEN WR72X0063
76	GEN WR01X1483
76	TRACK-CENTER
77	WR2X3139 GE Refrigerator Plug Button
78	PLUG BUTTON-LNR. SIDE (.
79	COVER IM RECEPTACLE
79	SCR 8-15 A PA 3/4 SS
80	PLUG BUTTON FILL TUBE
80	TUBE WATER FILL (2.5")
80	GEN WR02X4628
80	GEN WR02X3248
80	GROMMET-O.C. WATER FILL
81	WR2X4097 GE Button Plug
83	GEN WR01X1326
83	WZ5X158D GE Screw Package of 12
83	WZ4X241D GE Screw Package
83	GEN WR23X0162
84	GEN WR32X0702
86	GEN WR32X0681
87	GEN WR32X0728
87	GEN WR02X7045
88	HANDLE VEG. PAN R. SIDE
89	HANDLE MT. PAN
91	GEN WR32X0604
92	SUPPORT-REAR-VEG. PANS
93	SUPPORT COVER
94	GEN WR02X4899
95	SUPPORT POST
96	GASKET FRONT V.
97	GEN WR14X0279
98	GEN WR32X0729
99	GEN WR17X1510
100	GEN WR02X4626
101	DRAIN SPOUT-CN-C
102	GEN WZ04X0244
102	GRILLE-FRZ. OUTLET
103	LINER SCREW
103	GEN WR17X5661
104	SCREW
104	WR1X5278 GE Refrigerator Cable Clamp
104	GEN WR02X4516
104	GEN WR17X1400
105	R-E-D SERVICE PKG.
107	SCR 8-18 AB TR 5/8SS PLW
107	COVER
110	GEN WR30X0197
111	GEN WR71X5890
112	GEN WR02X4855
113	GEN WR02X6263
114	GEN WR02X6110
115	GEN WR02X6256
117	GEN WR38X0942
120	BAFFLE AIR COND FAN
121	SHIM HINGE BTM.
121	BAFFLE AIR EXTN BTM
200	GEN WR02X3899
200	LINER BTM.-FRZ.
200	BRACKET-FRZ. BTM.
201	GASKET-SIDES
201	COVER ONLY
201	EVAPORATOR HOUSING & COV
201	GASKET & NOZZLE ASM.
201	GASKET-TOP
202	LINER TOP-FF
202	SCREW 8-40X1/2 SPEC DRIL
202	SCREW 10-24X1/2
202	SEAL DRAIN
204	GEN WR17X1215
204	SCR 8-18 BAT TR 3/4SSPLW
205	GEN WR02X4495
205	GEN WR51X0236
206	DEFLECTOR HEATER
207	GEN WR17X1026
207	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
207	SCREW
208	REFRIGERANT
208	WR87X10082 GE Refrigerator Compressor Replacement Kit
209	BAFFLE (FIBER)-CONDENSER
211	MACHINE LOW SIDE
211	FOAM BLOCK EVAP.
212	CLIP COND
212	GEN WR84X0023
213	CUP & BRACKET ASM-R. SIDE
214	CUP & BRACKET ASM-L. SIDE
215	SLEEVE COMP MTG
216	EXT COMP MTG
217	GEN WR02X2375
217	STUD
217	TONGUE ASM
218	SCREW MACHINE MTG. REAR 1/4-14 X 7/8
218	GEN WR01X1194
219	NUTSTRIP COMP MTG D/J
220	BRACKET DEF CONTROL
220	WR9X480 GE Defrost Timer
220	GEN WZ04X0220
221	RELAY COMP
221	GEN WR02X3583
221	COVER RELAY
222	GEN WR08X0044
223	WR60X177 GE Condenser Fan Motor
224	GEN WR60X0117
224	GEN WR02X4191
225	GEN WR01X1515
226	SCR 8-36 T HX 7/16 S XTW
226	BRACKET COND FAN
227	BRACKET SMALL
227	GEN WR02X6194
227	GEN WR60X0108
227	SCR 8-18 AB HX 3/8 S
228	SCREW 8-32X1/2
228	ORIFICE EVAP. FAN
228	GEN WR14X0252
228	BRACKET-ORIFICE
230	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
231	SCR 10-24 SPEC DRILL PT
231	GEN WZ05X0197
231	GEN WR02X2945
232	WR86X25269 GE Refrigerator R134 Dryer
233	GEN 30-6030
233	SUPPORT-FRZ.-REAR
233	GEN 49-6285-2
