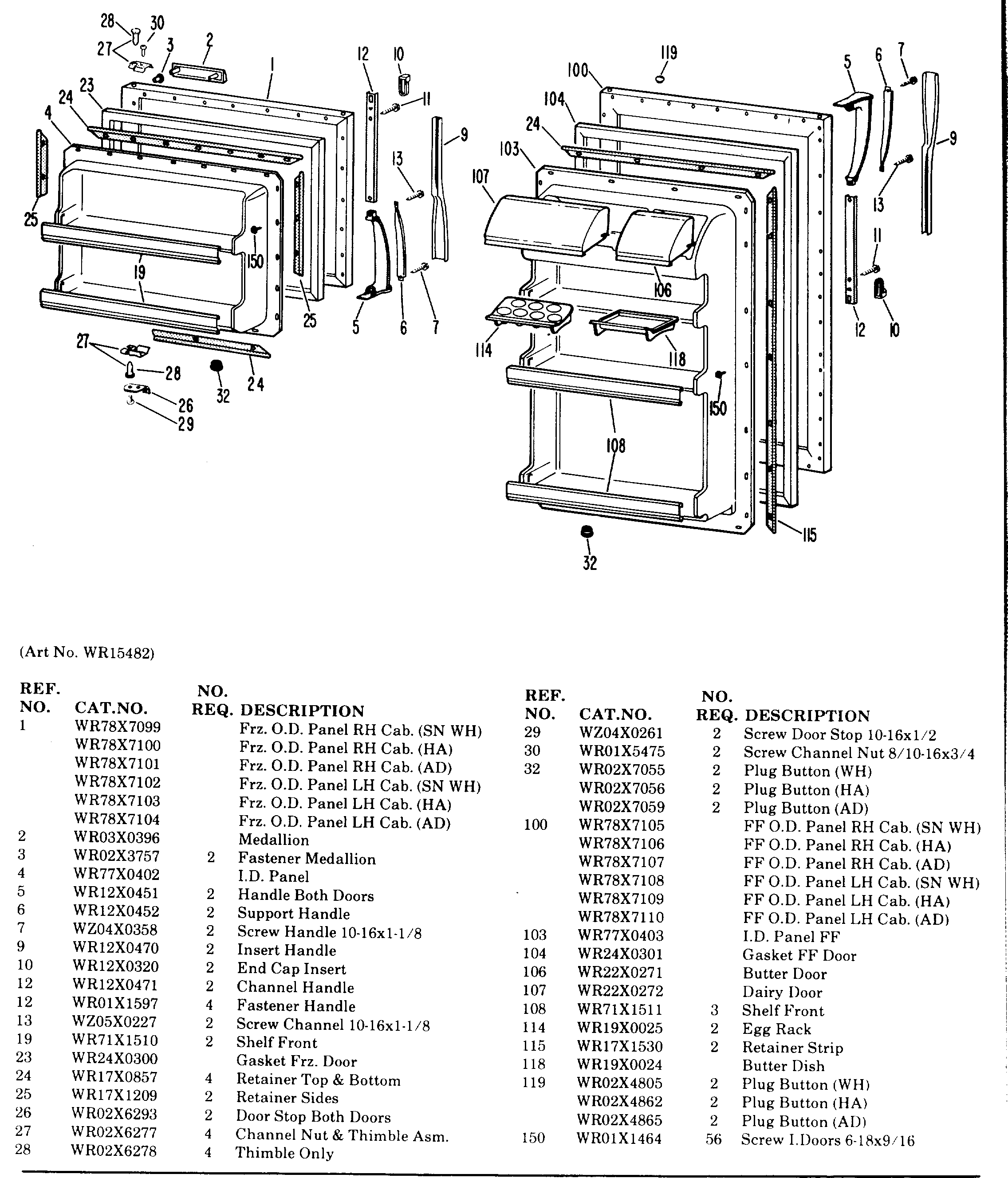

TBFM17VAB

TBFM17VAB

Written by

in

TBFM17VAB

Products

Position	Product
1	GEN WR78X7104
1	GEN WR78X7103
1	GEN WR78X7099
1	GEN WR78X7101
1	GEN WR78X7102
1	GEN WR78X7100
2	GEN WR03X0396
3	GEN WR02X3757
4	GEN WR77X0402
5	GEN WR12X0451
6	GEN WR12X0452
7	GEN WZ04X0358
9	GEN WR12X0470
10	GEN WR12X0320
12	GEN WR12X0471
12	GEN WR01X1597
13	GEN WZ05X0227
19	GEN WR71X1510
23	GEN WR24X0300
24	GEN WR17X0857
25	GEN WR17X1209
26	GEN WR02X6293
27	GEN WR02X6277
28	GEN WR02X6278
30	SCREW
32	GEN WR02X7055
32	GEN WR02X7056
32	GEN WR02X7059
100	GEN WR78X7107
100	GEN WR78X7110
100	GEN WR78X7108
100	GEN WR78X7109
100	GEN WR78X7106
100	GEN WR78X7105
103	GEN WR77X0403
104	GEN WR24X0301
106	GEN WR22X0271
107	GEN WR22X0272
108	GEN WR71X1511
114	GEN WR19X0025
115	GEN WR17X1530
118	GEN WR19X0024
119	GEN WR02X4805
119	GEN WR02X4865
119	GEN WR02X4862
150	SCREW SW. CRADLE
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR17X1544
204	SUPT-MULLION & NUTSTRIP
206	GEN WR71X1512
207	PLENUM
210	GEN WR02X7039
219	GEN WR51X0250
228	SHELF CANT WIRE ASM
230	GEN WR38X0965
231	GEN WR02X3440
232	GEN WR72X0076
236	MEAT PAN
237	GEN WR17X1573
240	VEG. PAN
241	GEN WR17X1583
242	WR32X5206 GE Refrigerator Vegetable Cover
249	SUPPORT PAN COVER
252	COVER PAN
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	CHANNEL SUPPT COVER
260	WR2X8474 GE Fill Tube
261	EXTENSION IM FILL TUBE
262	PLUG BTN (.875 DIA.HOLE)
262	GEN WR02X4829
263	GEN WR23X0162
266	WR23X10300 GE Refrigerator Power Cord Assembly
266	WR1X5278 GE Refrigerator Cable Clamp
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
269	WR2X3594 GE Refrigerator Wheel
270	GEN WR02X3595
271	GEN WR02X3598
273	R-E-D SERVICE PKG.
275	HINGE TOP & PIN ASM
277	GEN WR02X4194
278	GEN WR13X0522
279	GEN WR02X6280
280	GEN WR02X7190
281	GEN WR01X1355
281	GEN WR01X1114
282	GEN WR13X0519
283	SHIM HINGE-.031 THK.
284	GEN WR02X7011
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GEN WR74X0145
289	GEN WR02X4668
290	GEN WR02X4669
291	GEN WR02X4098
292	GEN WR02X4099
300	CONTROL TEMP
301	KNOB TEMP. CONTROL
301	SLEEVE VINYL
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7023
305	GEN WR14X0283
305	GEN WR02X7009
306	INSUL CONTROL HSG
306	GEN WR17X1534
307	GEN WR17X1538
308	BEZEL CONTROL HSG.
310	SOCKET LAMP
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
316	RAIL MACH MTG FRT
317	WHEEL ASM FRT
319	WR2X4097 GE Button Plug
321	PLUG BUTTON SIDE & FRZ.
322	GEN WR02X6345
323	GEN WR17X1553
324	GEN WR02X7051
350	GEN WR60X0118
351	BRACKET EVAP FAN LARGE
352	BRACKET SMALL
353	WR60X123 GE Fan Blade Black
354	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
355	GEN WR02X2945
400	GEN WR62X0025
400	GEN WR57X0069
401	WR17X1948 GE Refrigerator Water Line
402	WR2X4039 GE Refrigerator Clamp
402	WR2X4754 GE Refrigerator Fill Clamp
410	GEN WR30X0175
411	FEELER ARM
411	WR29X98 GE Refrigerator Retainer
412	EXTENSION FEELER ARM
413	SHIELD BODY
414	GEN WR02X4089
415	GEN WR02X3658
417	GEN WR02X5906
417	GEN WR38X0966
420	GEN WR30X0167
427	ISOLATOR PLATE-IM
551	GEN WZ04X0244
560	GEN WR01X1249
561	SCR 12-24 TT HXW 1 3/64S
564	GEN WR01X1194
565	POP RIVET
566	GEN WR01X1487
567	WD2X5166 GE Dishwasher Screw
568	SCREW
570	GEN WZ04X0331
575	GEN WR01X5366
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	LINER BTM FZ
604	GEN WR17X1541
608	LINER TOP FF
609	WR23X37285 GE Light Switch
616	SHIELD DEF HTR
617	COVER DEF HTR
618	HEATER DEF ASM
620	WR50X60 GE Refrigerator Defrost Thermostat
621	BRACKET DEF HTR
622	TROUGH DRAIN ASM
623	GEN WR14X0289
623	COVER DUCT FF
624	GEN WR17X1546
628	GEN WR02X7026
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	TONGUE ASM
648	WR9X502 GE Refrigerator Defrost Timer
649	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR02X4191
653	GEN WR01X1515
654	BRACKET COND FAN
675	SCR 8-18 AB TR 5/8SS PLW
679	SCR 8-18 AB HX 3/8 S
680	SCR 8-18 AB HX 1/2S W
681	GEN WZ04
682	SCR 8-36 T HX 7/16 S XTW
683	SCREW FAN MTR/BRKT
684	SCREW
685	SCR 1/4-14 AB HX 1/2S NS
686	WZ5X158D GE Screw Package of 12
687	SCREW 6-18 X 1/2" ROUND
689	WZ5X246 GE Screw
692	SCR 8-18 AB HX 1/2 S PL
692	SCREW
725	REFRIGERANT
725	MACHINE HIGH SIDE
726	MACHINE LOW SIDE
730	COND ASM
731	CLIP COND
733	RELAY COMP
734	GEN WR02X3583
734	COVER RELAY
735	GEN WR08X0030
736	COVER COMP MTG BRKT
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	NUTSTRIP COMP MTG D/J
9999	GEN 49-6292-1
9999	GEN 30-6030
