TBFM17VCBR

TBFM17VCBR

Written by

in

TBFM17VCBR

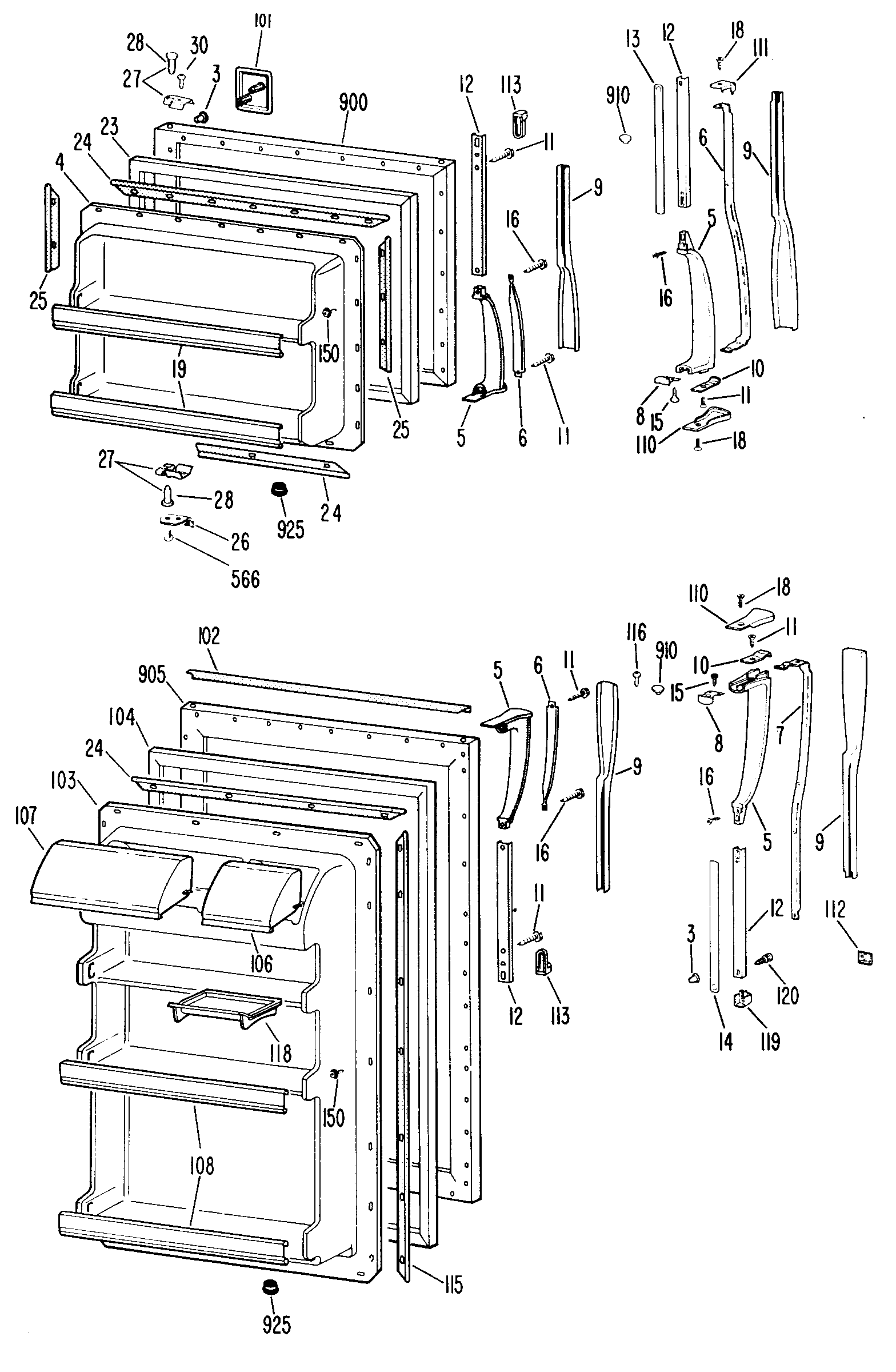

Products

Position	Product
3	GEN WR02X3757
4	GEN WR77X0402
5	GEN WR12X0451
6	GEN WR12X0452
9	GEN WR12X0509
11	GEN WZ04X0358
12	GEN WR01X1597
12	GEN WR12X0471
16	GEN WZ05X0227
19	GEN WR71X1645
23	GEN WR24X0300
24	GEN WR17X0857
25	GEN WR17X1209
26	GEN WR02X6293
27	GEN WR02X6277
28	GEN WR02X6278
30	SCREW
101	GEN WR03X0408
103	GEN WR77X0403
104	GEN WR24X0301
106	GEN WR22X0262
107	GEN WR22X0299
108	GEN WR71X1646
113	GEN WR12X0320
115	GEN WR17X1530
118	GEN WR19X0024
150	SCREW SW. CRADLE
176	GEN WZ05X0166
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR17X1544
204	SUPT-MULLION & NUTSTRIP
204	GEN WR01X1655
204	FOAM STRIP MULLION
207	PLENUM
207	GEN WR14X0313
210	GEN WR02X7039
212	GEN WR71X1512
215	GEN WR32X0701
219	GEN WR51X0250
229	SHELF CANT WIRE ASM
231	GEN WR02X3440
231	GEN WR38X0965
232	GEN WR72X0076
236	GEN WR32X0855
237	GEN WR17X1616
240	GEN WR32X0854
241	GEN WR17X1564
242	WR32X5206 GE Refrigerator Vegetable Cover
249	SUPPORT PAN COVER
252	COVER PAN
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	CHANNEL SUPPT COVER
260	WR2X8474 GE Fill Tube
261	GEN WR02X7087
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3595
265	GEN WR02X3598
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
270	WR2X4754 GE Refrigerator Fill Clamp
275	HINGE TOP & PIN ASM
276	GEN WR13X0527
277	RAIL MACH MTG FRT
278	WHEEL ASM FRT
279	GEN WR02X7063
281	GEN WR01X1600
281	GEN WR01X1355
281	GEN WR01X1114
282	GEN WR13X0519
283	GEN WR02X7190
283	SHIM HINGE-.031 THK.
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GRILLE O.CASE(BRN)
288	GEN WR02X7079
289	GEN WR02X7154
290	GEN WR02X7155
291	GEN WR74X0177
293	GEN WR02X7080
295	GEN WR23X0162
300	GEN WR02X7061
300	CONTROL TEMP
301	GEN WR02X7146
301	SLEEVE VINYL
302	GEN WR14X0312
302	HOUSING NOZZLE
303	GEN WR02X7008
304	GEN WR02X7139
305	GEN WR02X7009
306	INSUL CONTROL HSG
306	GEN WR17X1534
307	GEN WR17X1538
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
321	GEN WR02X4532
322	GEN WR02X6345
323	GEN WR17X1553
324	PLUG BUTTON LG WH
324	GEN WR02X7051
420	GEN WR30X0167
422	GEN WR01X1332
435	WR2X4330D GE Refrigerator Connection Package 12
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
452	SHIM HINGE BTM.
452	GEN WR02X7011
551	GEN WZ04X0244
553	SCR 6-20 B TR 1/4 SS
560	GEN WR01X1249
562	SCR 12-24 TT HXW 1 3/64S
564	GEN WR01X1194
564	SCR 6-20 AB TR 3/8 SS
566	GEN WR01X1487
568	SCREW
569	RIVET POP
573	GEN WZ04X0254
601	GEN WR17X1552
602	PLUG EVAP ACCESS
603	LINER BTM FZ
603	WR1X1591 GE Refrigerator Screw
604	GEN WR17X1541
604	GEN WR02X7072
608	LINER TOP FF
609	WR23X37285 GE Light Switch
610	GEN WR60X0130
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP FAN
613	WR60X123 GE Fan Blade Black
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
616	SHIELD DEF HTR
617	COVER DEF HTR
618	HEATER DEF ASM
620	WR50X60 GE Refrigerator Defrost Thermostat
621	GEN WR02X4495
621	BRACKET DEF HTR
622	TROUGH DRAIN ASM
623	GEN WR14X0289
623	COVER DUCT FF
624	GEN WR17X1546
626	WR23X10300 GE Refrigerator Power Cord Assembly
628	GEN WR02X7026
630	WR2X4097 GE Button Plug
631	PLUG BTN (.875 DIA.HOLE)
631	GEN WR02X4829
640	BRACKET COMP MTG-R.SIDE
641	BRACKET COMP MTG-L.SIDE
642	BUSHING COMP MTG
644	GEN WR02X2375
644	TONGUE ASM
648	WR9X502 GE Refrigerator Defrost Timer
649	GEN WR02X7027
650	WR60X177 GE Condenser Fan Motor
651	GEN WR60X0117
652	GEN WR01X1683
653	GEN WR01X1515
654	BRACKET COND FAN
655	GEN WR01X1601
675	SCR 8-18 AB TR 5/8SS PLW
676	WD2X5166 GE Dishwasher Screw
679	SCREW BRKT. EVAP. FAN
679	SCR 8-18 AB HX 3/8 S
680	GEN WZ06
682	GEN WX06X0134
683	SCREW FAN MTR/BRKT
685	SCR 1/4-14 AB HX 1/2S NS
687	SCREW 6-18 X 1/2" ROUND
689	WZ5X246 GE Screw
690	WZ5X158D GE Screw Package of 12
692	SCREW
692	SCR 8-18 AB HX 1/2 S PL
725	MACHINE HIGH SIDE
725	REFRIGERANT
726	MACHINE LOW SIDE
730	COND ASM
731	CLIP COND
733	RELAY COMP
734	COVER RELAY
734	GEN WR02X3583
735	GEN WR08X0030
736	COVER COMP MTG BRKT
740	WR86X25269 GE Refrigerator R134 Dryer
743	EXT COMP MTG
745	NUTSTRIP COMP MTG D/J
801	GEN WR62X0025
802	ELBOW
802	GEN WR01X1360
803	NUT-VALVE INLET
803	WASHER-NUT
804	WR57X57 GE Refrigerator Nut
805	WR1X5278 GE Refrigerator Cable Clamp
808	WR2X4039 GE Refrigerator Clamp
821	GEN WR29X0104
831	GEN WR02X5906
832	GEN WR01X1348
833	GEN WR01X1379
834	GEN WR01X1420
900	GEN WR78X7282
901	GEN WR78X7283
904	GEN WR78X7284
905	GEN WR78X7105
906	GEN WR78X7106
909	GEN WR78X7107
925	GEN WR02X7055
9999	GEN 49-6348
