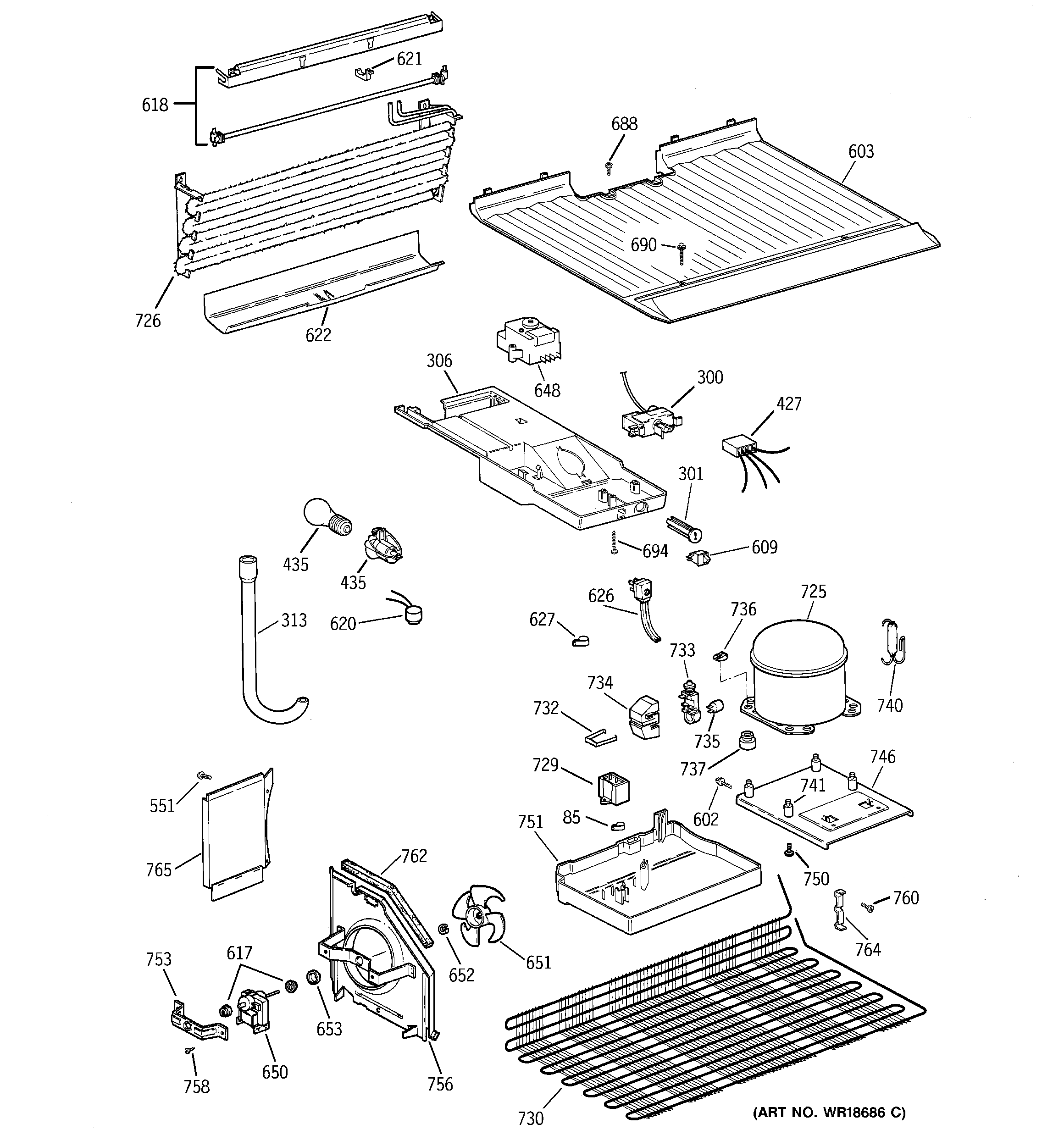

TBX16SYBSRWW UNIT PARTS

Products

PositionProduct
85GEN WR01X2008
300CONTROL TEMP
300WR2X8344 GE Refrigerator Vinyl Sleeve
301GEN WR02X8231
306WR17X12852 GE Refrigerator Control Housing
313TUBE DRAIN
427GEN WR23X0358
435WR2X9391 GE Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
551GEN WZ04X0244
602WR1X1591 GE Refrigerator Screw
603GEN WR17X2630
609WR23X37285 GE Light Switch
617GROMMET EVAP
618WR51X444 GE Refrigerator Heater Assembly
620WR50X10006 GE Refrigerator Thermostat D
621HOLDER HTR ELEMENT
622GEN WR17X2635
626WR23X10300 GE Refrigerator Power Cord Assembly
627WR1X5278 GE Refrigerator Cable Clamp
648WR9X560 GE Refrigerator Defrost Control
650MOTOR COND FAN
651GEN WR60X10030
652RING COMPRESSION
653WR02X10322 GE Refrigerator Dust Cap B02
688WR01X10448 GE Refrigerator Screw 8-19 HI/LO TRP 1" S
690SCR 8-18 AB TPR 1 1/8 S
694GEN WR01X1792
725WR87X20798 GE Refrigerator High Side Assembly
726WR87X28948 GE Refrigerator Evaporator
729WR55X24064 GE Refrigerator Run Capacitor
730GEN WR84X10002
732GEN WR02X8976
733WR07X10055 GE Refrigerator PTCR Relay
734GEN WR02X9169
735GEN WR08X0175
736WR2X8583 GE Refrigerator Clip
737GEN WR02X7238
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
746GEN WR17X10195
750WR1X1786 GE Refrigerator Screw
751GEN WR32X10037
753BRACKET EVAP FAN
756GEN WR17X10461
756GEN WR17X10462
758WD2X323D GE Dishwasher Screw Package
760GEN WR01X1717
762GEN WR14X0313
764WR2X9000 GE Refrigerator Condenser Clip
765GEN WR17X10463
