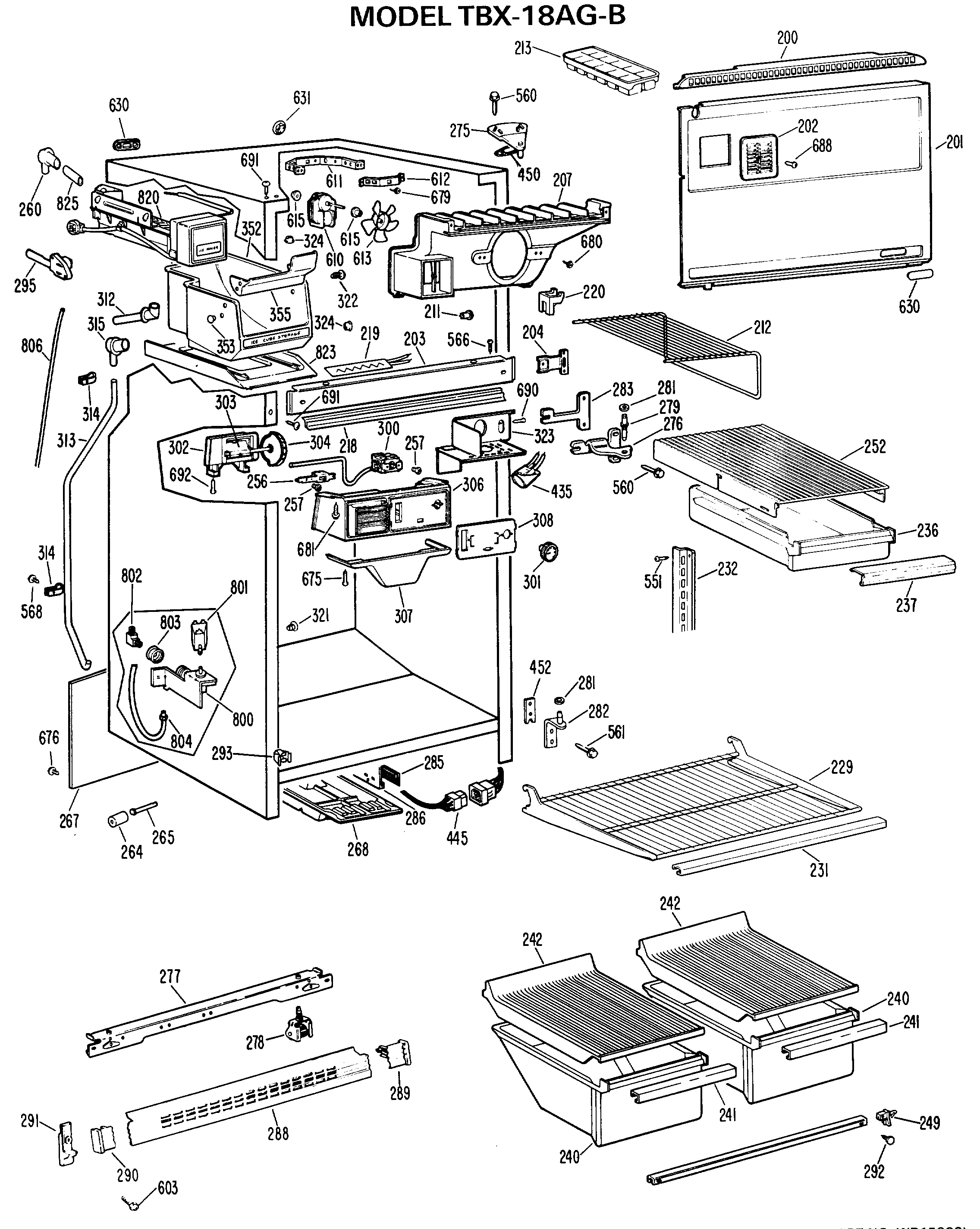

TBX18AGCR 1

TBX18AGCR 1

Written by

in

TBX18AGCR 1

Products

Position	Product
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR14X0316
203	GEN WR17X2014
204	GEN WR01X1655
204	SUPT-MULLION & NUTSTRIP
207	GEN WR14X0313
207	PLENUM
212	GEN WR71X1512
218	GEN WR14X0328
219	GEN WR51X0302
220	GEN WR02X7039
229	SHELF CANT WIRE ASM
231	GEN WR38X0965
231	GEN WR02X3440
232	GEN WR72X0076
236	GEN WR32X0855
237	GEN WR17X1616
240	GEN WR32X0854
241	GEN WR17X1564
242	WR32X5206 GE Refrigerator Vegetable Cover
249	GEN WR02X7249
252	COVER PAN
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
260	WR2X8474 GE Fill Tube
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3595
265	GEN WR02X3598
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0561
277	RAIL MACH MTG FRT
278	WHEEL ASM FRT
279	GEN WR13X0562
281	GEN WR01X1114
281	GEN WR01X1355
282	GEN WR13X0553
283	NUTSTRIP HINGE
283	SHIM HINGE-.031 THK.
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GRILLE O.CASE(BRN)
289	GEN WR02X7154
290	GEN WR02X7155
291	GEN WR74X0177
292	PLUG BUTTON
292	GEN WR01X1326
293	GEN WR02X7080
295	GEN WR23X0162
300	CONTROL TEMP
300	GEN WR02X7061
301	SLEEVE VINYL
301	GEN WR02X7146
302	HOUSING NOZZLE
302	GEN WR14X0312
303	GEN WR02X7008
304	GEN WR02X7139
306	GEN WR17X1534
306	INSUL CONTROL HSG
307	GEN WR17X1538
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
321	GEN WR02X4532
322	GEN WR02X6345
323	GEN WR17X1553
324	GEN WR02X7051
324	PLUG BUTTON LG WH
353	FASTENER
355	WR30X10154 GE Refrigerator Ice Bucket Assembly
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
450	GEN WR02X7151
452	SHIM HINGE BTM.
452	GEN WR02X7011
551	GEN WZ04X0244
560	GEN WR01X1249
566	GEN WR01X1487
568	SCREW
603	WR1X1591 GE Refrigerator Screw
603	LINER BTM FZ
610	MOTOR EVAP FAN
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
613	WR60X123 GE Fan Blade Black
615	GEN WR02X2945
630	WR2X4097 GE Button Plug
631	GEN WR02X4829
631	PLUG BTN (.875 DIA.HOLE)
676	WD2X5166 GE Dishwasher Screw
679	SCREW BRKT. EVAP. FAN
679	SCR 8-18 AB HX 3/8 S
680	SCR 8-18 AB HX 1/2S W
681	GEN WZ04
