TBX18LFBR 1

Products

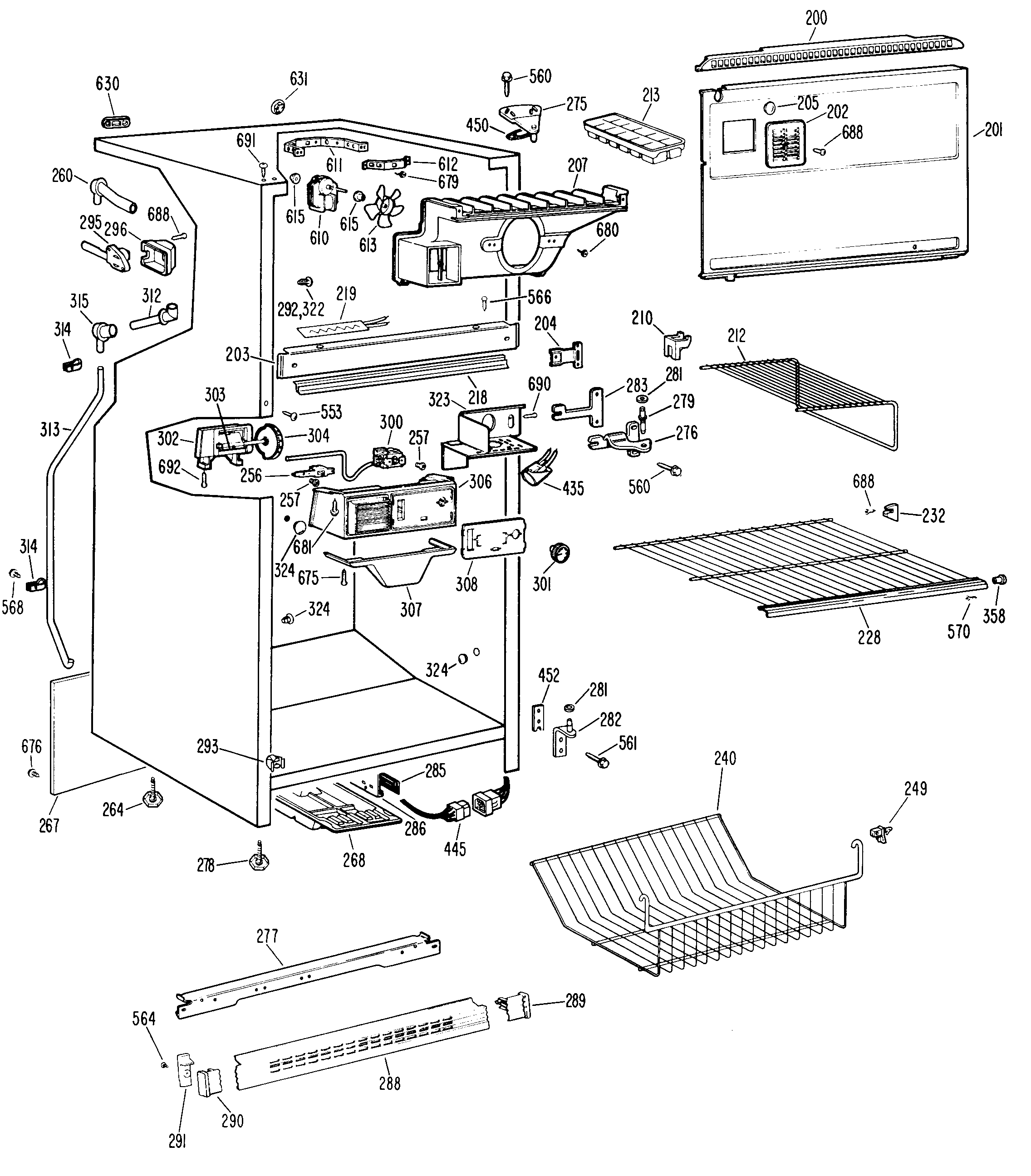

Position	Product
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR17X2014
203	GEN WR14X0316
204	GEN WR01X1655
204	SUPT-MULLION & NUTSTRIP
205	GEN WR02X7060
207	PLENUM
207	GEN WR14X0313
212	GEN WR71X1512
213	WR30X311 GE Refrigerator Ice Tray
218	GEN WR14X0328
219	GEN WR51X0302
228	GEN WR71X1513
232	SUPPORT SHELF
240	SHELF BASKET
249	GEN WR02X7249
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
260	WR2X8474 GE Fill Tube
264	GLIDER ADJ.-5/16-18 THD.
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
275	HINGE TOP & PIN ASM
276	GEN WR13X0561
277	GEN WR17X1563
278	LEVELING LEG
279	GEN WR13X0562
281	GEN WR01X1355
281	GEN WR01X1114
282	GEN WR13X0553
282	NUTSTRIP HINGE
283	SHIM HINGE-.031 THK.
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GEN WR02X7079
288	GRILLE O.CASE(BRN)
289	GEN WR02X7154
290	GEN WR02X7155
291	GEN WR74X0177
292	PLUG BUTTON
293	GEN WR02X7080
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	CONTROL TEMP
300	GEN WR02X7061
301	SLEEVE VINYL
301	GEN WR02X7146
302	HOUSING NOZZLE
302	GEN WR14X0312
303	GEN WR02X7008
304	GEN WR02X7139
306	GEN WR17X1534
306	INSUL CONTROL HSG
307	GEN WR17X1538
308	GEN WR02X7147
312	FUNNEL DRAIN
313	TUBE DRAIN
314	GEN WR02X4516
315	GROMMET DRAIN
322	GEN WR02X6345
323	GEN WR17X1553
324	PLUG BUTTON LG WH
324	GEN WR02X7051
358	SUPPORT SHELF SIDE
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
450	GEN WR02X7151
452	SHIM HINGE BTM.
452	GEN WR02X7011
553	SCR 6-20 B TR 1/4 SS
560	GEN WR01X1249
561	SCR 12-24 TT HXW 1 3/64 SPP
564	GEN WR01X1194
566	GEN WR01X1487
568	SCREW
570	GEN WZ04X0331
610	GEN WR60X0130
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP FAN
613	WR60X123 GE Fan Blade Black
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
630	WR2X4097 GE Button Plug
631	GEN WR02X4829
631	PLUG BTN (.875 DIA.HOLE)
676	WD2X5166 GE Dishwasher Screw
679	SCR 8-18 AB HX 3/8 S
679	SCREW BRKT. EVAP. FAN
680	SCR 8-18 AB HX 1/2S W
681	SCREW 6-18 X 1/2" ROUND
688	SCR 8-15 A PA 3/4 SS
690	WZ5X158D GE Screw Package of 12
691	GEN WR01X1644
691	GEN WR01X1594
692	SCREW
692	SCR 8-18 AB HX 1/2 S PL
