TBX18SGRL 1

Products

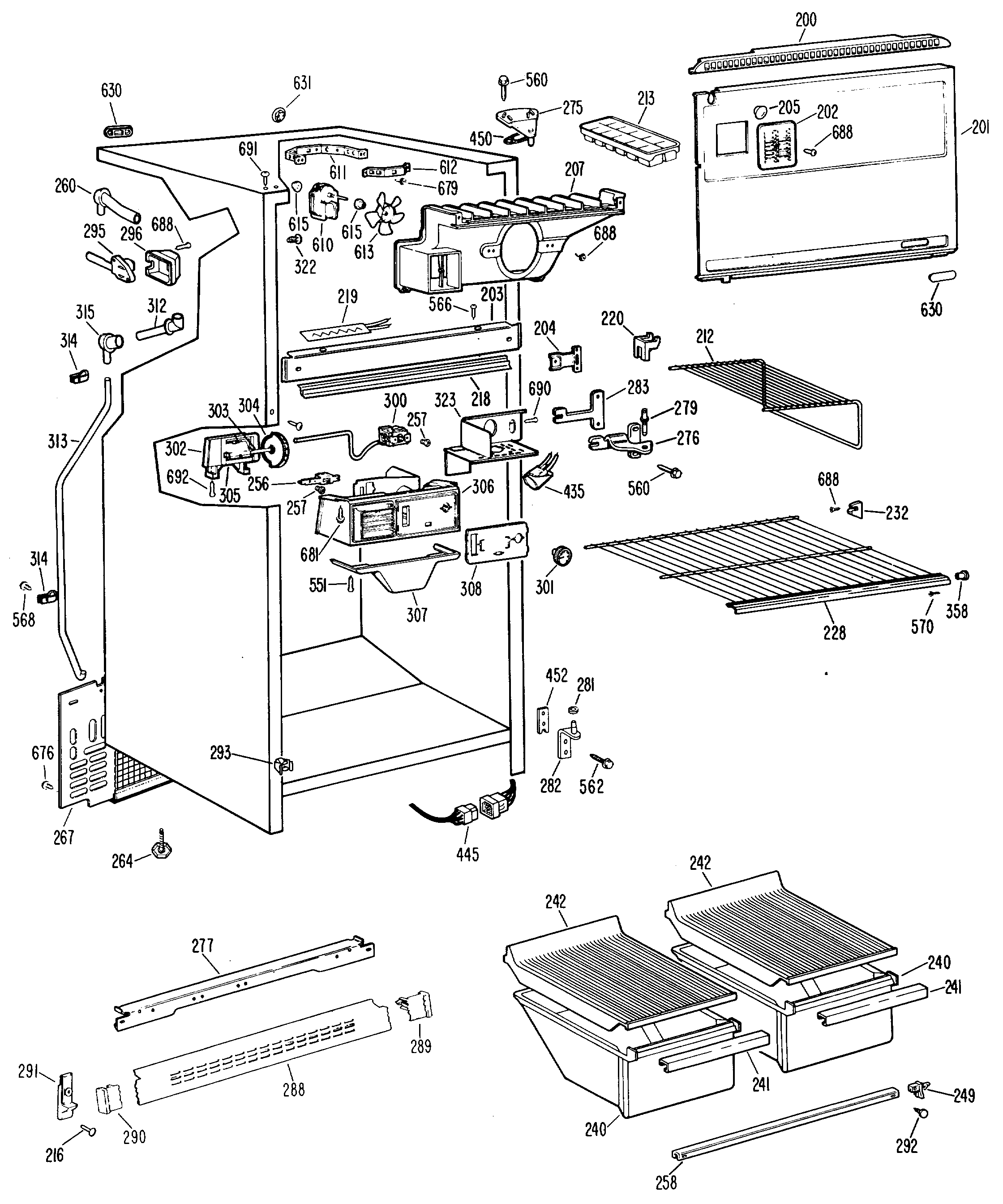

Position	Product
200	GRILLE EVAP COVER
201	COVER EVAP ASM
202	GEN WR02X7019
203	GEN WR14X0316
203	GEN WR17X2014
204	SUPT-MULLION & NUTSTRIP
204	GEN WR01X1655
205	GEN WR02X7060
207	GEN WR14X0313
207	PLENUM
212	GEN WR71X1512
213	WR30X311 GE Refrigerator Ice Tray
216	GEN WR01X1332
218	GEN WR14X0328
219	GEN WR51X0302
220	GEN WR02X7039
228	GEN WR71X1513
232	SUPPORT SHELF
240	GEN WR32X0854
241	GEN WR17X1564
242	WR32X5206 GE Refrigerator Vegetable Cover
249	GEN WR02X7249
256	GEN WR23X0203
257	SCR 6-32 D TR 3/8 SS
258	GEN WR17X2028
260	WR2X8474 GE Fill Tube
264	GLIDER ADJ.-5/16-18 THD.
267	GEN WR82X0264
275	HINGE TOP & PIN ASM
276	GEN WR13X0561
277	GEN WR17X1563
279	GEN WR13X0562
281	GEN WR01X1355
281	GEN WR01X1114
282	GEN WR13X0553
283	NUTSTRIP HINGE
283	SHIM HINGE-.031 THK.
288	GRILLE O.CASE(BRN)
289	GEN WR02X7154
290	GEN WR02X7155
291	GEN WR74X0181
292	GEN WR01X1326
292	PLUG BUTTON
293	GEN WR02X7080
295	GEN WR23X0162
296	COVER IM RECEPTACLE
300	GEN WR09X0401
300	GEN WR02X7061
300	SLEEVE VINYL
301	GEN WR02X7146
302	HOUSING NOZZLE
302	GEN WR14X0312
303	GEN WR02X7008
304	GEN WR02X7392
305	GEN WR02X7009
306	INSUL CONTROL HSG
306	GEN WR17X1534
307	GEN WR17X1538
308	GEN WR02X7147
312	FUNNEL DRAIN
313	GEN WR17X2089
314	GEN WR02X4516
315	GROMMET DRAIN
322	GEN WR02X6345
323	GEN WR17X1553
358	SUPPORT SHELF SIDE
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
450	GEN WR02X7151
452	SHIM HINGE BTM.
452	GEN WR02X7011
551	GEN WZ04X0244
560	GEN WR01X1249
562	SCR 12-24 TT HXW 1 3/64S
566	GEN WR01X1487
568	SCREW
570	GEN WZ04X0331
610	MOTOR EVAP FAN
611	BRACKET EVAP FAN LARGE
612	BRACKET EVAP. FAN
613	WR60X123 GE Fan Blade Black
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X7391
630	WR2X4097 GE Button Plug
631	PLUG BTN (.875 DIA.HOLE)
631	GEN WR02X4829
676	WD2X5166 GE Dishwasher Screw
679	SCREW BRKT. EVAP. FAN
681	SCREW 6-18 X 1/2" ROUND
688	SCR 8-15 A PA 3/4 SS
690	WZ5X158D GE Screw Package of 12
691	GEN WR01X1594
691	GEN WR01X1644
692	SCR 8-18 AB HX 1/2 S PL
692	SCREW
