TBX22RFCR 3

TBX22RFCR 3

Written by

in

TBX22RFCR 3

Products

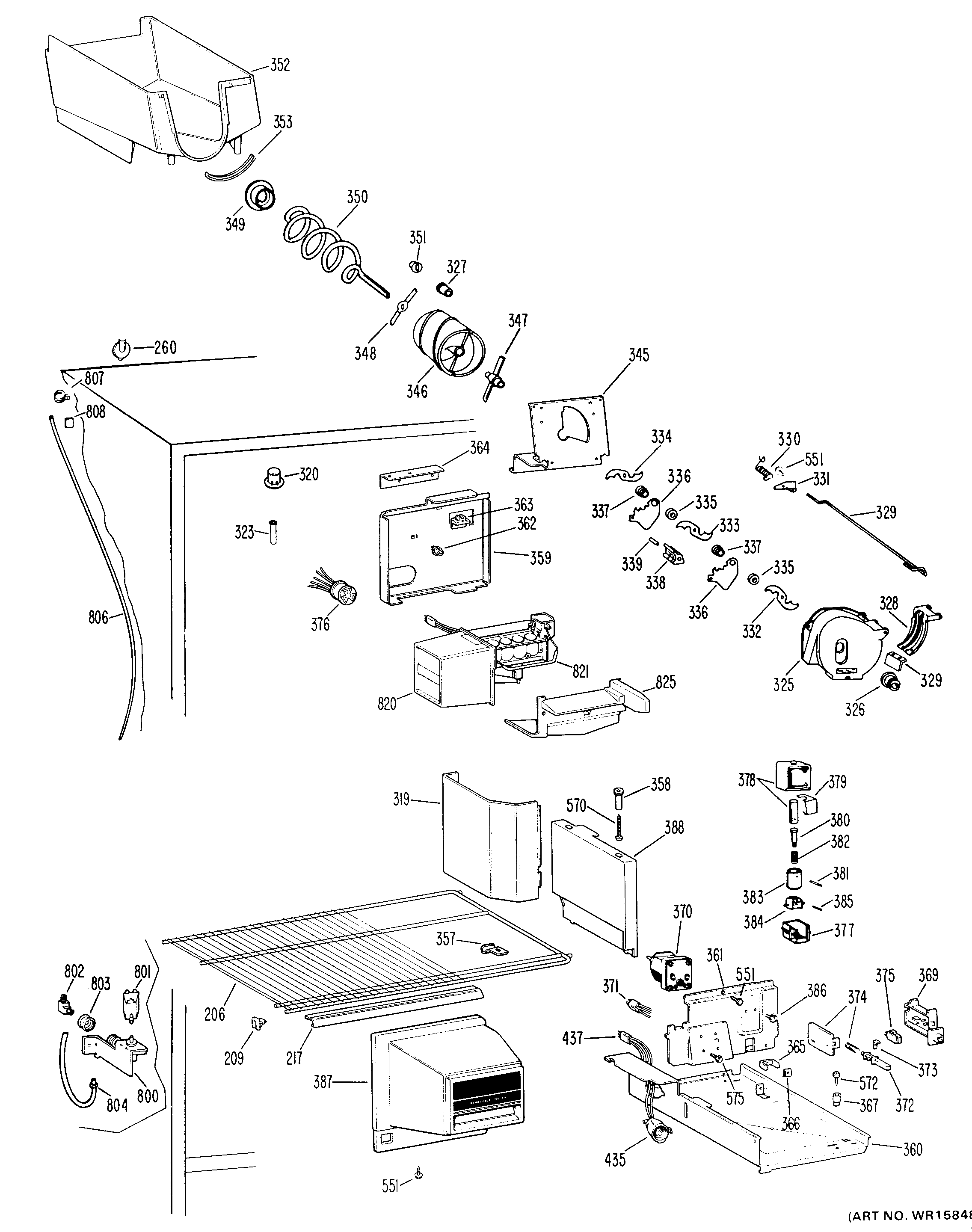

PositionProduct
206GEN WR71X1620
209GEN WR02X7166
217GEN WR38X1011
260GEN WR49X0299
319GEN WR17X1942
320GROMMET WATER FILL
323GEN WR17X1594
323GEN WR02X4772
325WR17X2061 GE Refrigerator Crush Dispenser
326GEN WR01X1366
326WR1X1367D GE Refrigerator Return Package 12
326GEN WR02X7163
326GEN WR01X1585
327BUSHING HELIX DISP
328DEFLECTOR ICE DISP
328WR2X4143 GE Refrigerator Pivot
328GEN WR02X4561
329GEN WR17X1374
329EXTENSION – DEFLECTOR
330GEN WR02X4759
331GEN WR02X4758
332WR17X1361 GE Refrigerator Blades Moving Display
333WR17X1362 GE Refrigerator Middle Blade
334WR17X1363 GE Refrigerator Blades Moving Display
335GEN WR02X4139
336WR17X2058 GE Refrigerator Dispenser Blade
337WR2X4138 GE Refrigerator Spacer
338WR2X4140 GE Refrigerator Blade Rest
339GEN WR02X4141
345GEN WR14X0320
345GEN WR17X2021
346HELIX FRONT DISP
347BLADE HELIX DISP
348GEN WR02X4137
349WR2X4550 GE Refrigerator Drive Cup
350WR17X4207 GE Refrigerator Front Helix
351CONE AUGER DISP
352GEN WR30X0247
353WR2X7905 GE Refrigerator Bucket Seal
357GEN WR02X7168
358GEN WR02X7235
359GEN WR17X1944
360GEN WR17X2019
361COVER MOTOR & SOLENOID
362GEN WR01X1649
363GEN WR02X7173
364GEN WR02X7167
365GEN WR02X4854
366GEN WR01X1547
367GEN WR01X1542
369GEN WR02X7169
370MOTOR AUGER DISP
371GEN WR23X0292
372GEN WR02X7170
373GEN WR23X0290
374GEN WR02X7171
374GEN WR02X7172
375GEN WR23X0288
376GEN WR23X0293
377GEN WR02X4784
381WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
382WR62X26536 GE Refrigerator Armature Kit
386GEN WZ06X0077
387GEN WR17X2020
388GEN WR17X1941
435SOCKET LAMP
437GEN WR23X0291
551GEN WZ04X0244
570GEN WZ04X0331
572WZ4X230D GE Screw Package 12
575GEN WZ06X0100
800GEN WR57X0077
801GEN WR62X0025
802GEN WR01X1360
802ELBOW
803WASHER-NUT
803NUT-VALVE INLET
804WR57X57 GE Refrigerator Nut
806WR17X1948 GE Refrigerator Water Line
807WR2X4754 GE Refrigerator Fill Clamp
808GEN WR02X4841
820ICEMAKER ASM
821GEN WR29X0100
821ARM FEELER ARM
825SHROUD IM DISP
