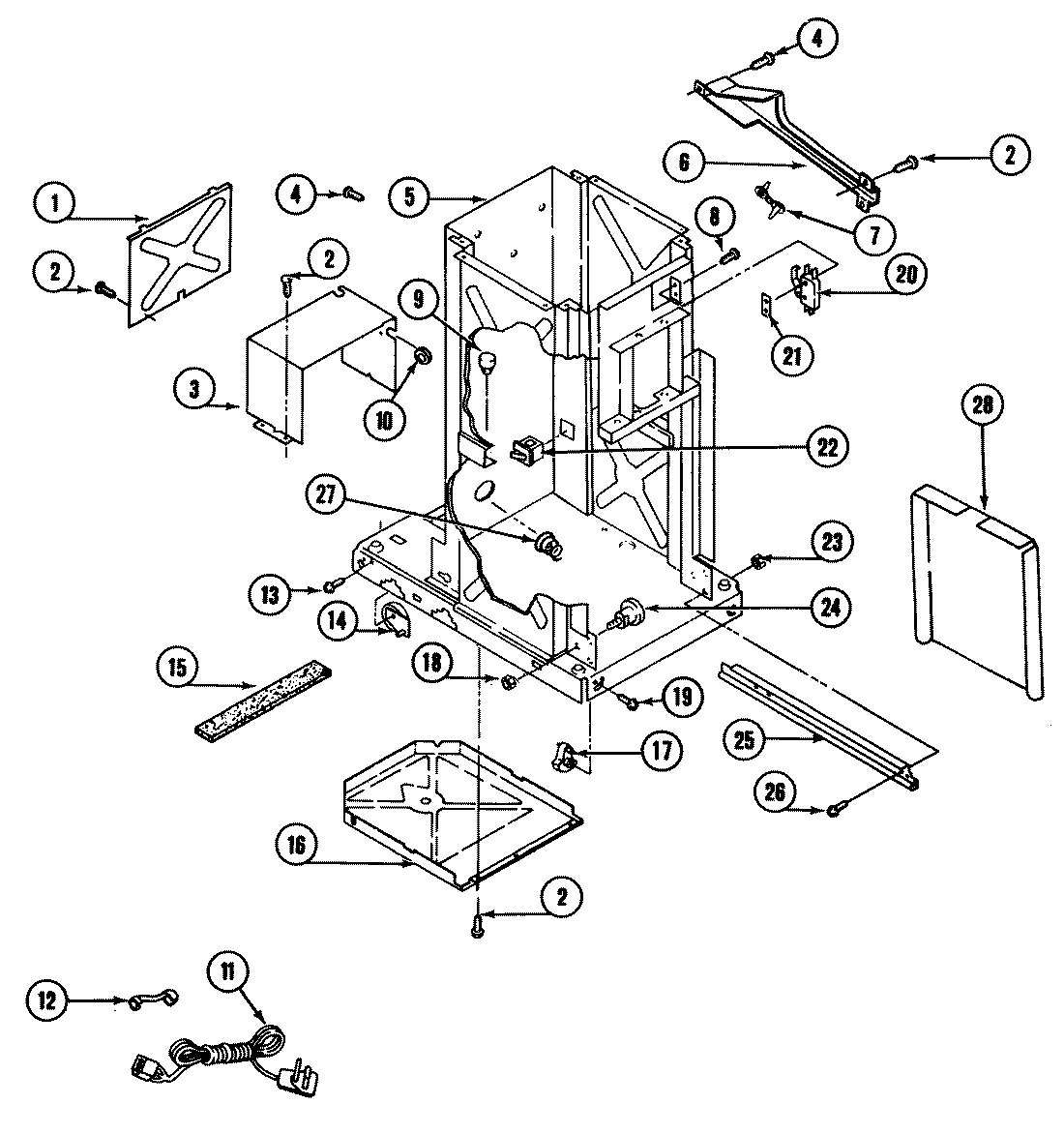

TC406 03 – FRAME (TC406)

Products

Position	Product
1	MAY 749089
2	MAY 749032
3	MAY 749090
4	MAY 749050
5	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
6	MAY 749120
7	MAY 749049
8	MAY 749065
9	MAY 749024
10	MAY 749107
12	MAY 749033
13	MAY 749091
14	MAY 749093
14	MAY 749092
15	MAY 749045
16	MAY 749009
17	MAY 749023
18	WP776356 Whirlpool Compactor Nut
19	MAY 749094
20	WP777811 Whirlpool Compactor Directional Switch
21	MAY 749066
22	WP4387911 Whirlpool Refrigerator Switch
23	MAY 749034
24	MAY 749037
25	MAY 749011
25	WP9870975 Whirlpool Compactor Slide
26	MAY 749058
27	MAY 749000
28	MAY 749001
