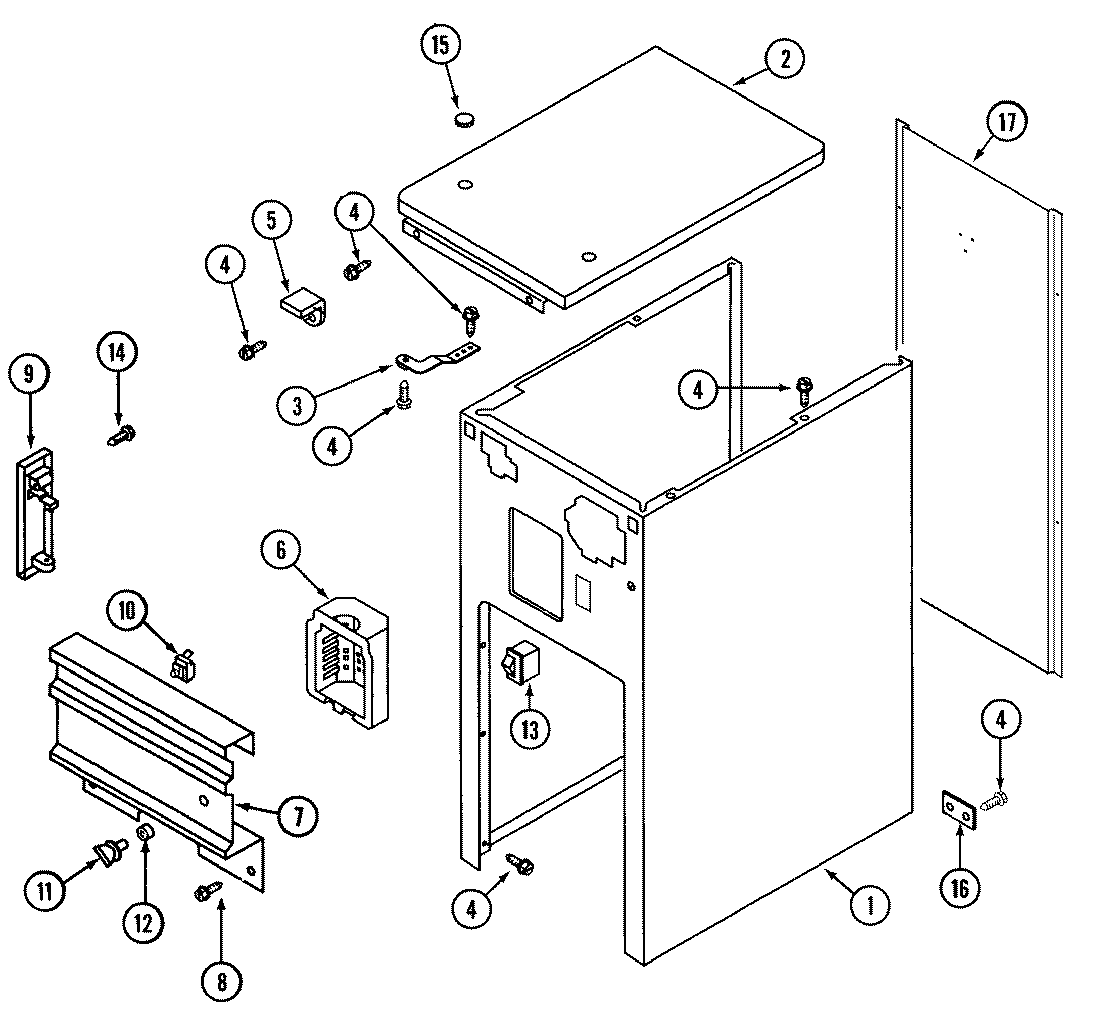

TC407W 02 – CABINET & CONTROL PANEL (SERIES 3-4)

TC407W 02 – CABINET & CONTROL PANEL (SERIES 3-4)

Written by

in

TC407W 02 – CABINET & CONTROL PANEL (SERIES 3-4)

Products

PositionProduct
NIMAY 41001016
NIMAY 41001017
NIMAY 11100024
1MAY 41001008
2MAY 41001009
3W11729437 Whirlpool Retaining Bracket
4SCREW
5MAY 749104
6MAY 41001012
7MAY 749125
8MAY 749042
9MAY 749106
9MAY 749105
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11MAY 749126
12MAY 749056
13MAY Y4152058
14MAY 749076
15MAY 41001014
16PLATE
17MAY 41001015
