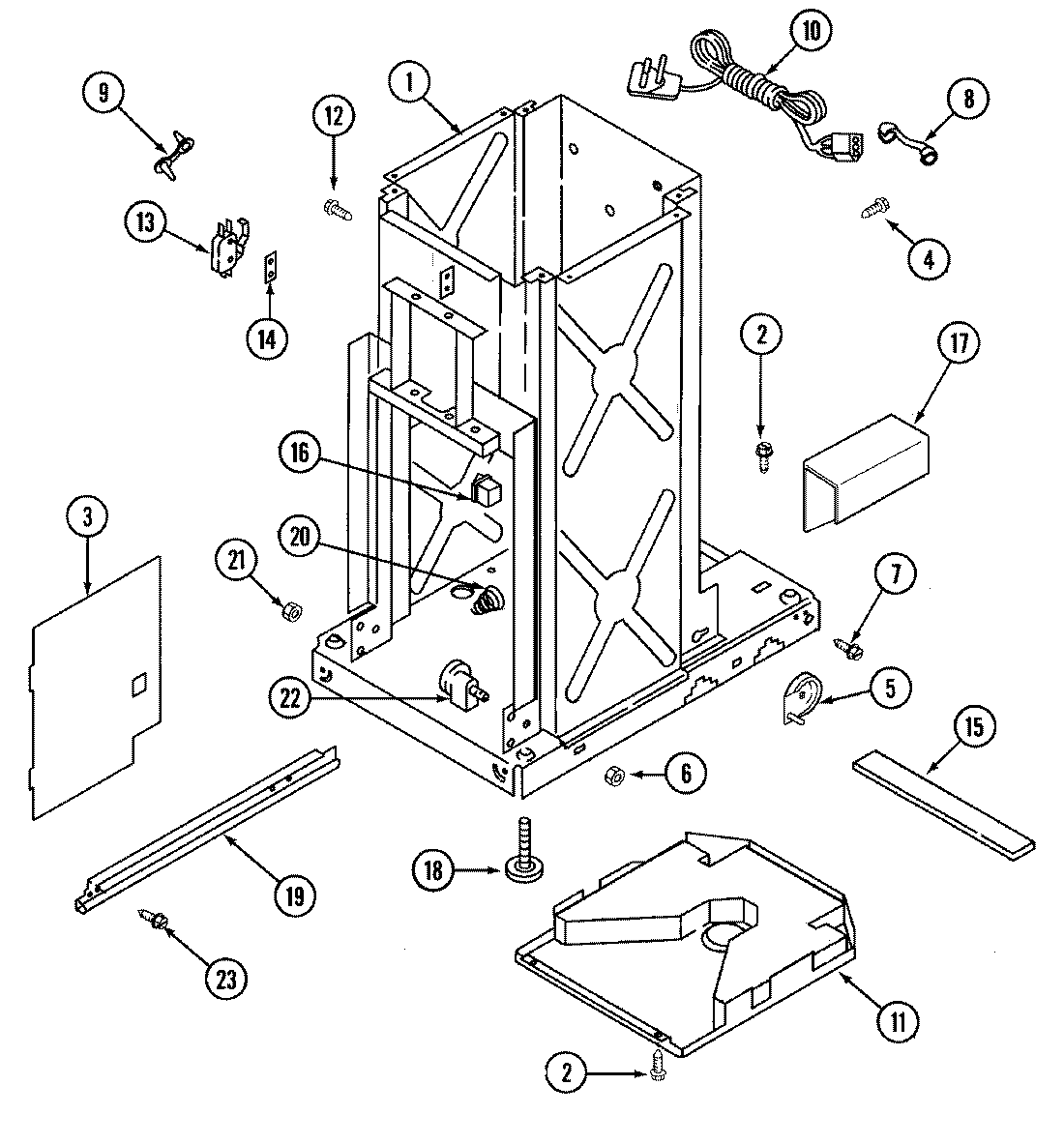

TC407W 06 – FRAME

Products

Position	Product
1	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	MAY 749032
3	MAY 11100014
4	MAY 749050
5	W11023674 Whirlpool Compactor Leveling Wheel
5	MAY 11100005
6	WP776356 Whirlpool Compactor Nut
7	MAY 749091
8	MAY 749033
9	MAY 749049
10	MAY 749119
11	MAY 749009
12	MAY 749065
13	WP777811 Whirlpool Compactor Directional Switch
14	MAY 749066
15	MAY 749045
16	WP4387911 Whirlpool Refrigerator Switch
17	MAY 11100016
18	MAY Y775526
19	MAY 749011
19	WP9870975 Whirlpool Compactor Slide
20	MAY 749000
21	MAY 749034
22	882688 Whirlpool Compactor Bearing
23	MAY 749058
