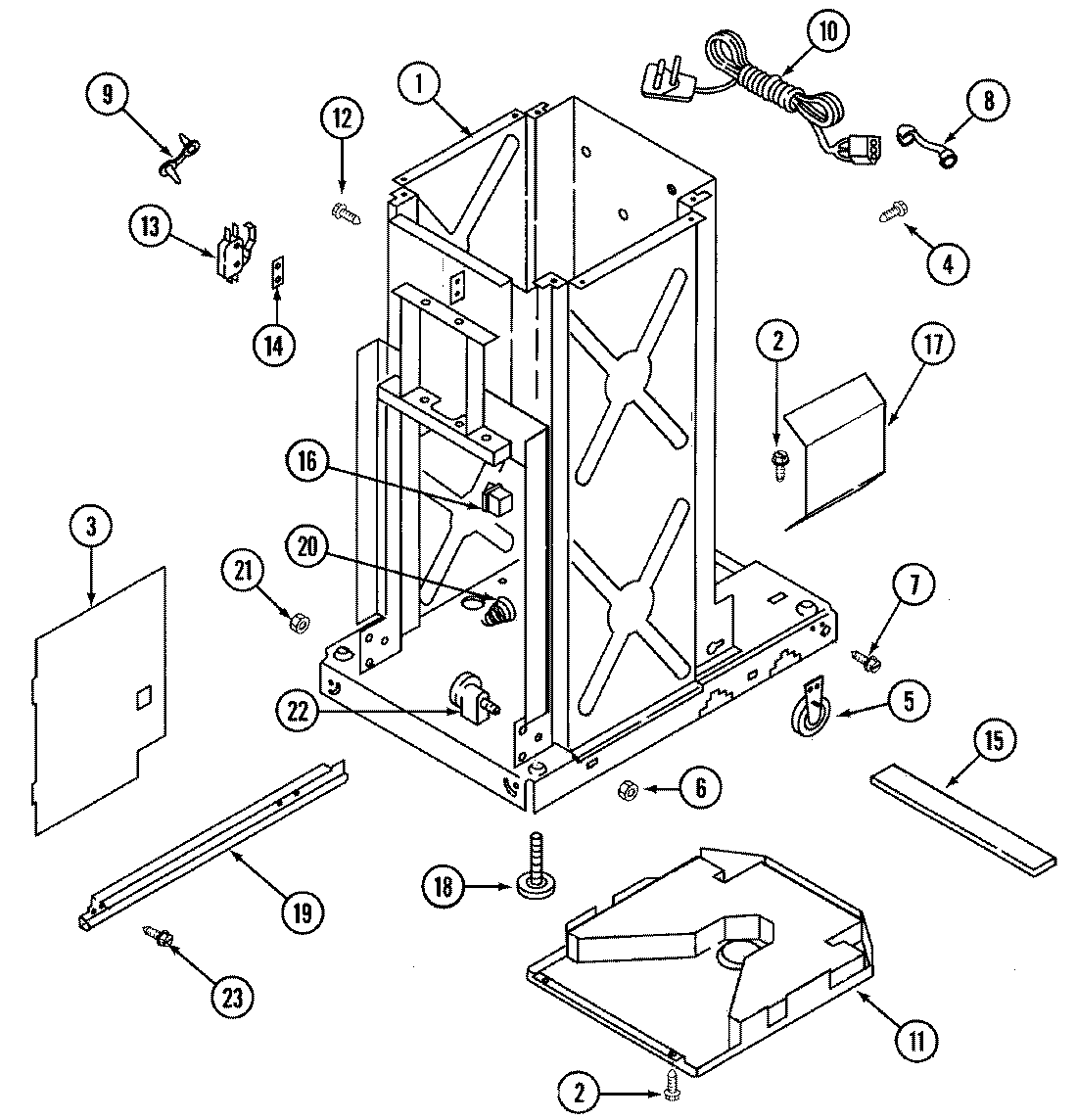

TC407W 07 – FRAME (SERIES 2-5)

Products

Position	Product
1	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1	MAY 41001048
2	MAY 749032
3	MAY 11100014
4	MAY 749050
5	W11023674 Whirlpool Compactor Leveling Wheel
6	WP776356 Whirlpool Compactor Nut
7	MAY Y780034
8	MAY 749033
9	MAY 749049
10	MAY 41001049
10	MAY 41001024
11	MAY 749009
12	MAY Y777849
13	WP777811 Whirlpool Compactor Directional Switch
14	MAY 749066
15	MAY 749045
16	WP4387911 Whirlpool Refrigerator Switch
17	MAY 41001025
18	MAY Y775526
19	WP9870975 Whirlpool Compactor Slide
19	SLIDE
20	MAY 749000
21	MAY 41001028
22	882688 Whirlpool Compactor Bearing
23	MAY 749058
