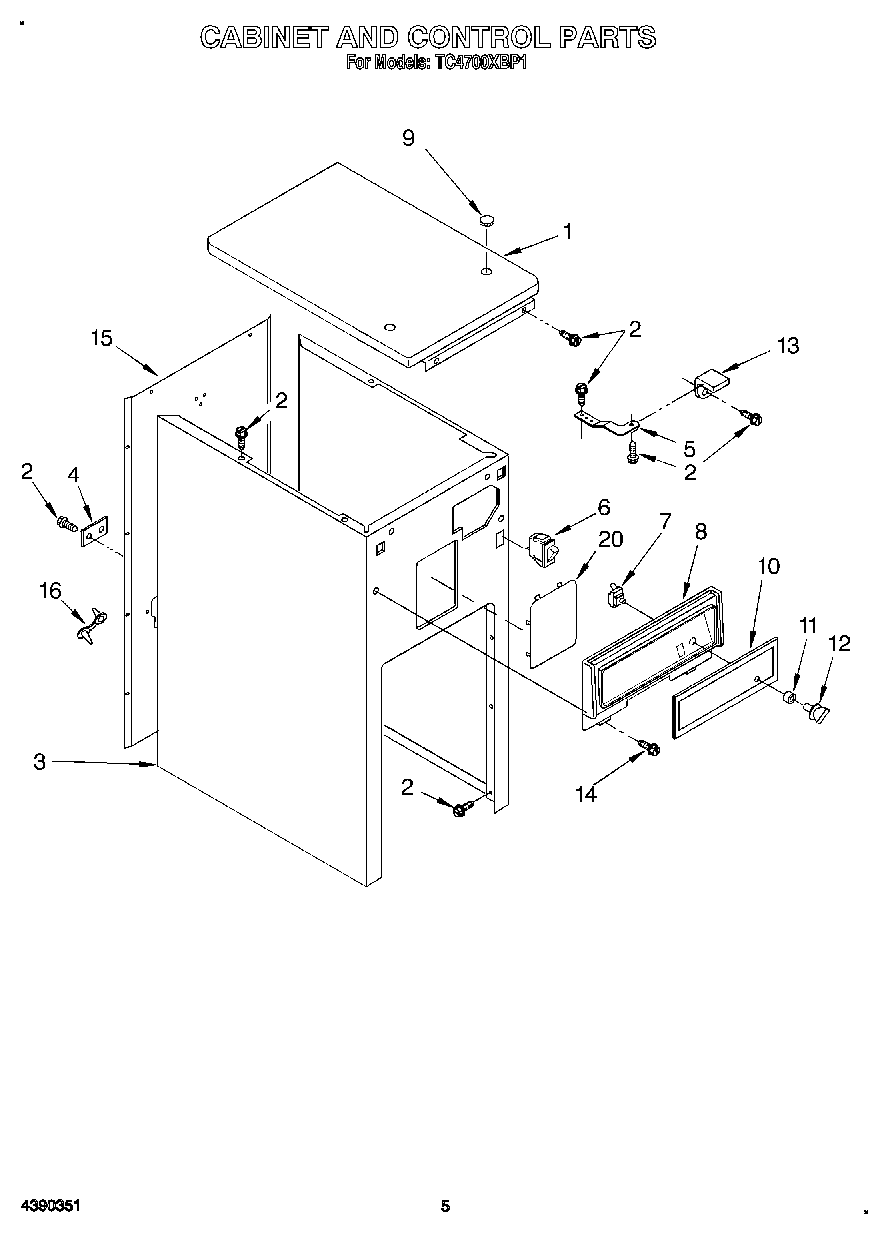

TC4700XBP1 05 – CABINET AND CONTROL

Products

Position	Product
1	Top, Cabinet
2	WP489069 Whirlpool Compactor Screw
3	Cabinet
4	Plate, Power Cord
5	W11729437 Whirlpool Retaining Bracket
6	WP4387911 Whirlpool Refrigerator Switch
7	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
8	Escutcheon, Control
9	Plug, Hole
10	Insert, Decorative
11	WP777383 Whirlpool Compactor Nut
12	Knob, Rotary Switch
13	WP780239 Whirlpool Compactor Bracket Retainer
14	Screw, 6-20 x 3/8 (2)
15	Panel, Back
16	Clamp, Wire
20	9871160 Whirlpool Switch Plate
