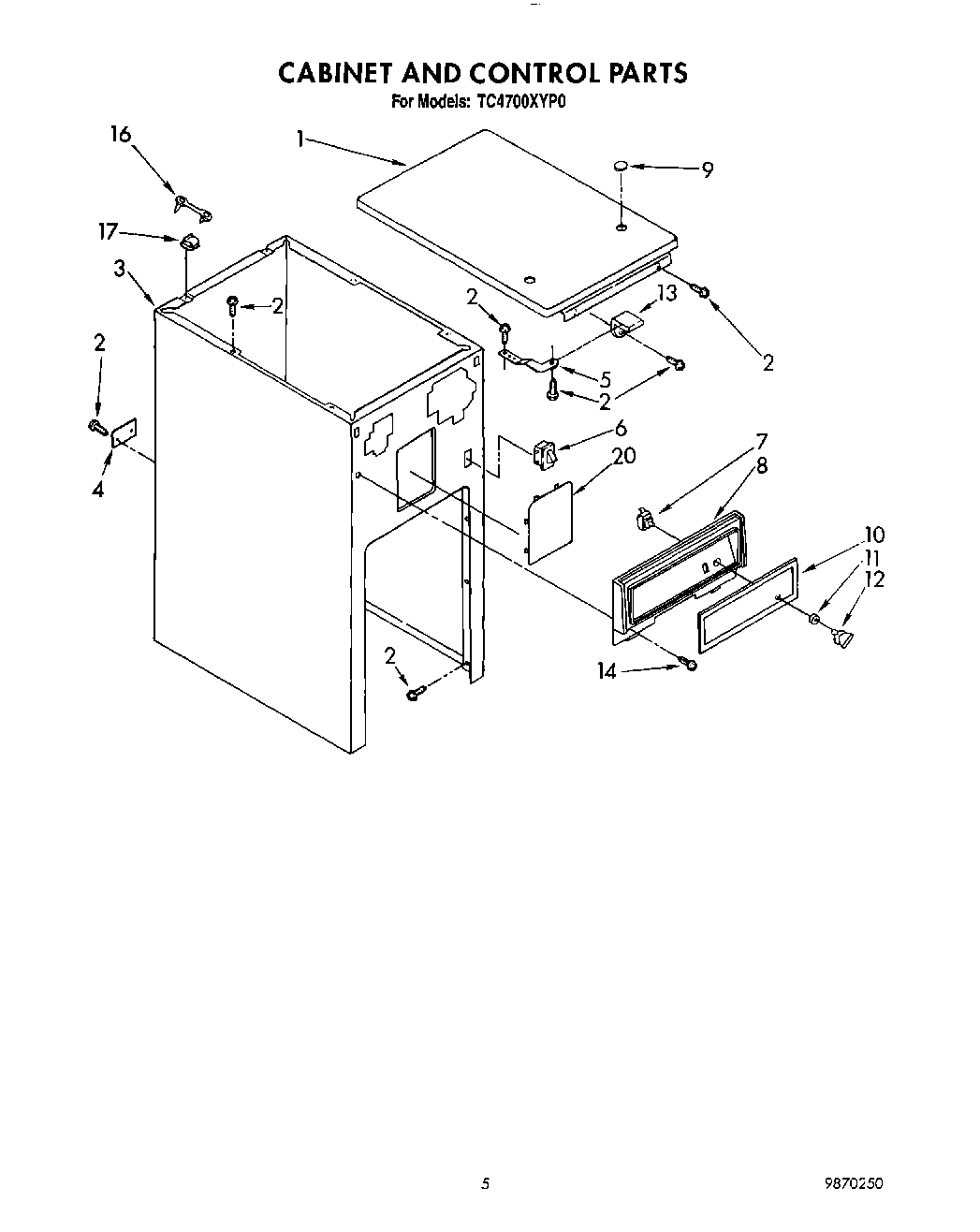

TC4700XYP0 05 – CABINET AND CONTROLadmin2025-04-26T11:20:14+00:00TC4700XYP0 05 – CABINET AND CONTROL
Products
| Position | Product |
|---|
| 1 | Cover, Top |
| 2 | WP489069 Whirlpool Compactor Screw |
| 3 | Cabinet |
| 4 | Plate, Power Cord |
| 5 | W11729437 Whirlpool Retaining Bracket |
| 6 | WP4387911 Whirlpool Refrigerator Switch |
| 7 | 675382 Whirlpool Trash Compactor On Off Start Top Limit Switch |
| 8 | Escutcheon, Control |
| 9 | Plug, Hole |
| 10 | Insert, Decorative |
| 11 | WP777383 Whirlpool Compactor Nut |
| 12 | Knob, Rotary Switch |
| 13 | WP780239 Whirlpool Compactor Bracket Retainer |
| 14 | Screw, 6-20 x 3/8 (2) |
| 16 | Clamp, Wire |
| 17 | Clip, Top Mount (2) |
| 20 | Plate, Cover |
