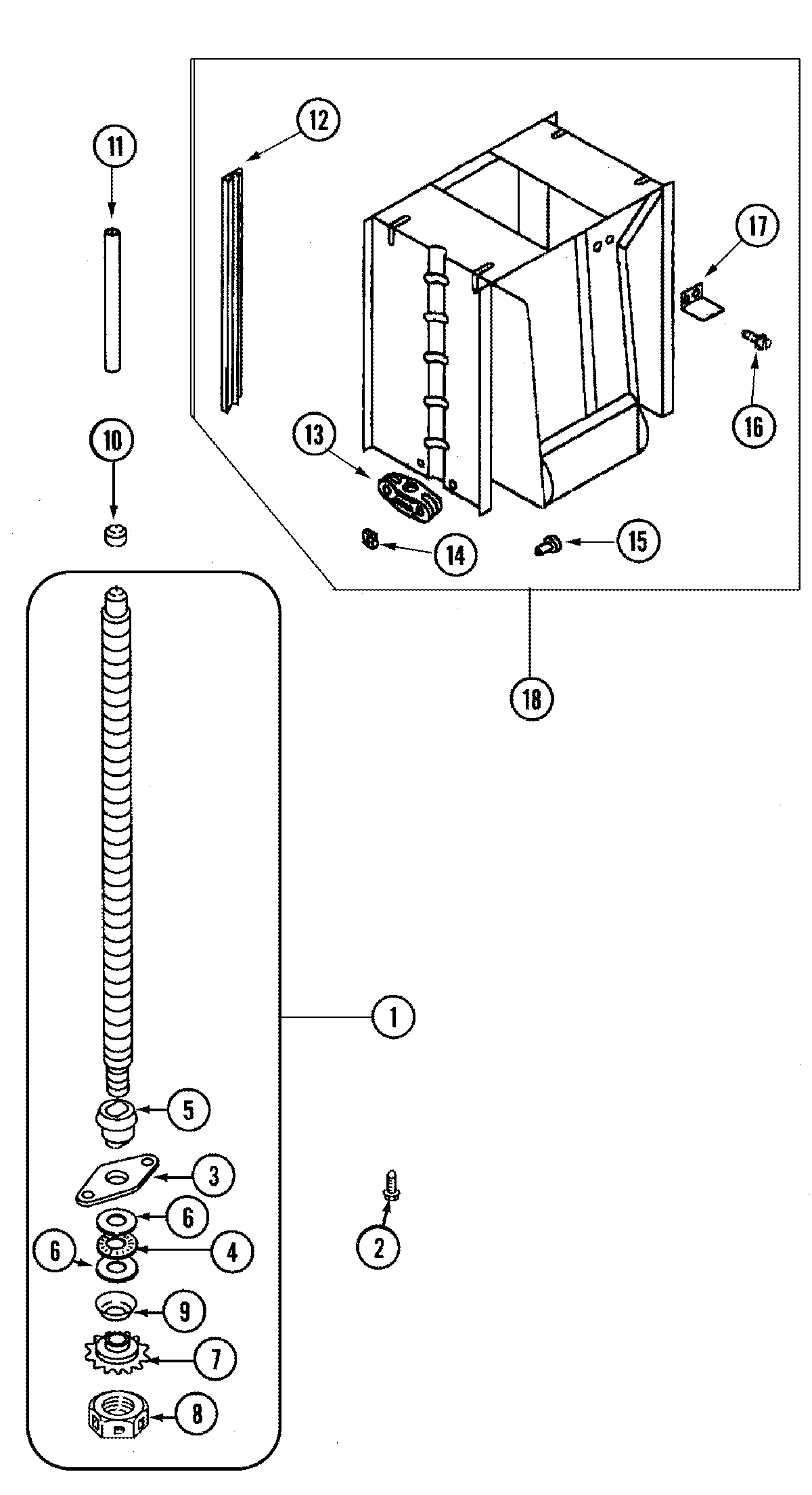

TC507B 05 – POWERSCREW & RAM ASSEMBLY

TC507B 05 – POWERSCREW & RAM ASSEMBLY

Written by

in

TC507B 05 – POWERSCREW & RAM ASSEMBLY

Products

PositionProduct
1WPW10451272 Whirlpool Trash Compactor Power Screw
2MAY 41001088
3MAY 41001095
4W10917043 Whirlpool Compactor Bearing
5776941 Whirlpool Compactor Power Crew Hub
6775481 Whirlpool Compactor Bearing
7675370 Whirlpool Compactor Sprocket
84154842 Whirlpool Compactor Nut
9WP777332 Whirlpool Compactor Washer
10MAY 41001034
11WP9870037 Whirlpool Ram Stop
12MAY 41001120
13WP9870163 Whirlpool Compactor Trunnion Nut
14MAY Y701447
15MAY 41001116
16MAY 41001119
17MAY 41001118
18MAY 41001032
