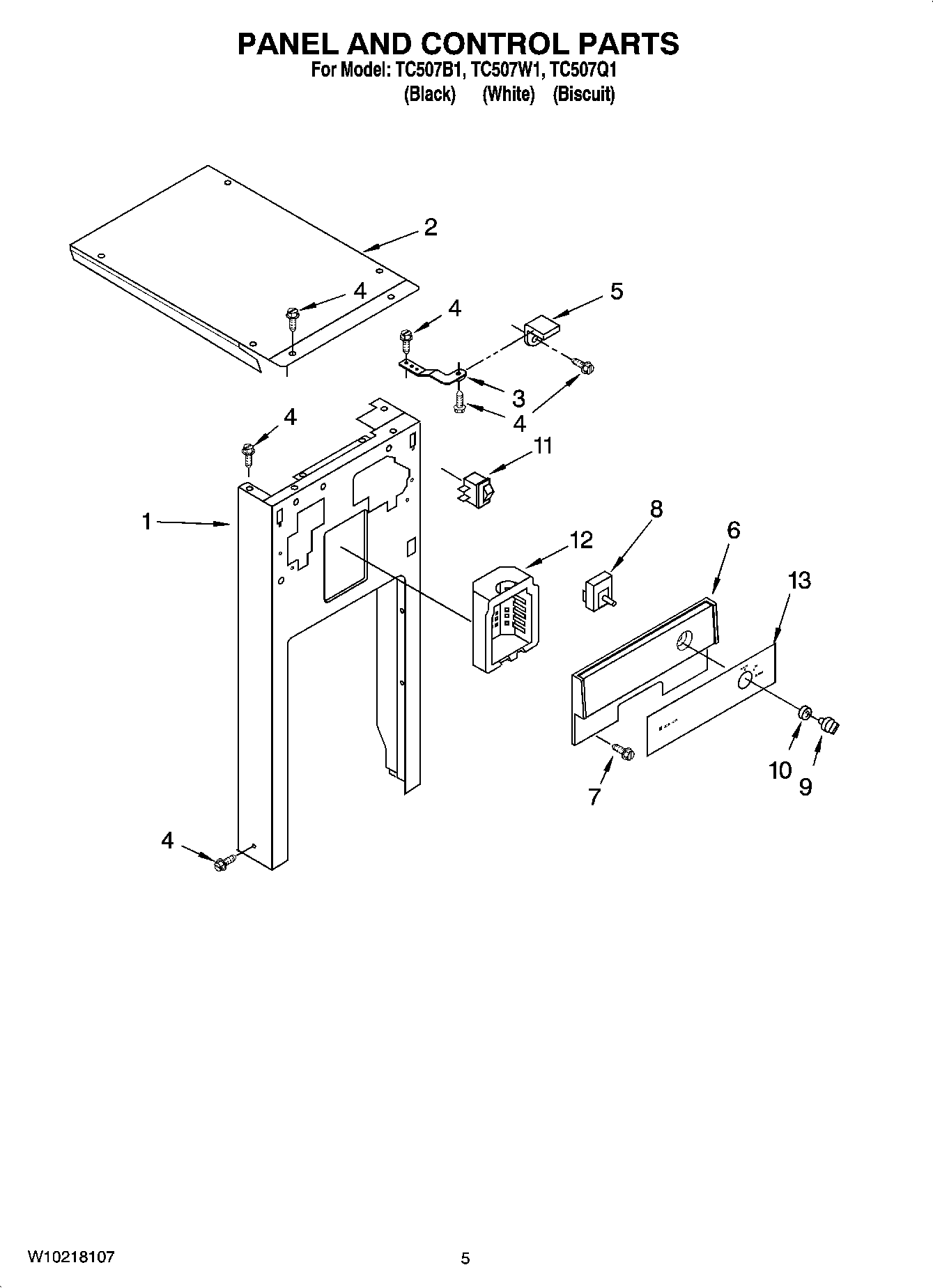

TC507B1 05 – PANEL AND CONTROL PARTS

Products

Position	Product
1	MAY 9871072
1	MAY 9871073
1	MAY 9871575
2	Top, Cabinet
3	MAY 9871993
4	MAY 489478
5	Bracket, Mounting (Alternate)
6	Console (Black)
6	MAY 9871839T
6	Console (White)
7	Screw, 6-20 x 3/8
8	MAY 608824
9	MAY 9871659
9	Knob, Rotary Switch (Black)
9	Knob, Rotary Switch (White)
10	Nut, Switch
11	WP4387911 Whirlpool Refrigerator Switch
11	Switch, Drawer Tilt (Black)
12	Compartment, Deodorant (White)
12	Compartment, Deodorant (Black)
12	MAY 9871858
13	MAY 9871844
13	MAY 9871845
13	MAY 9871850
