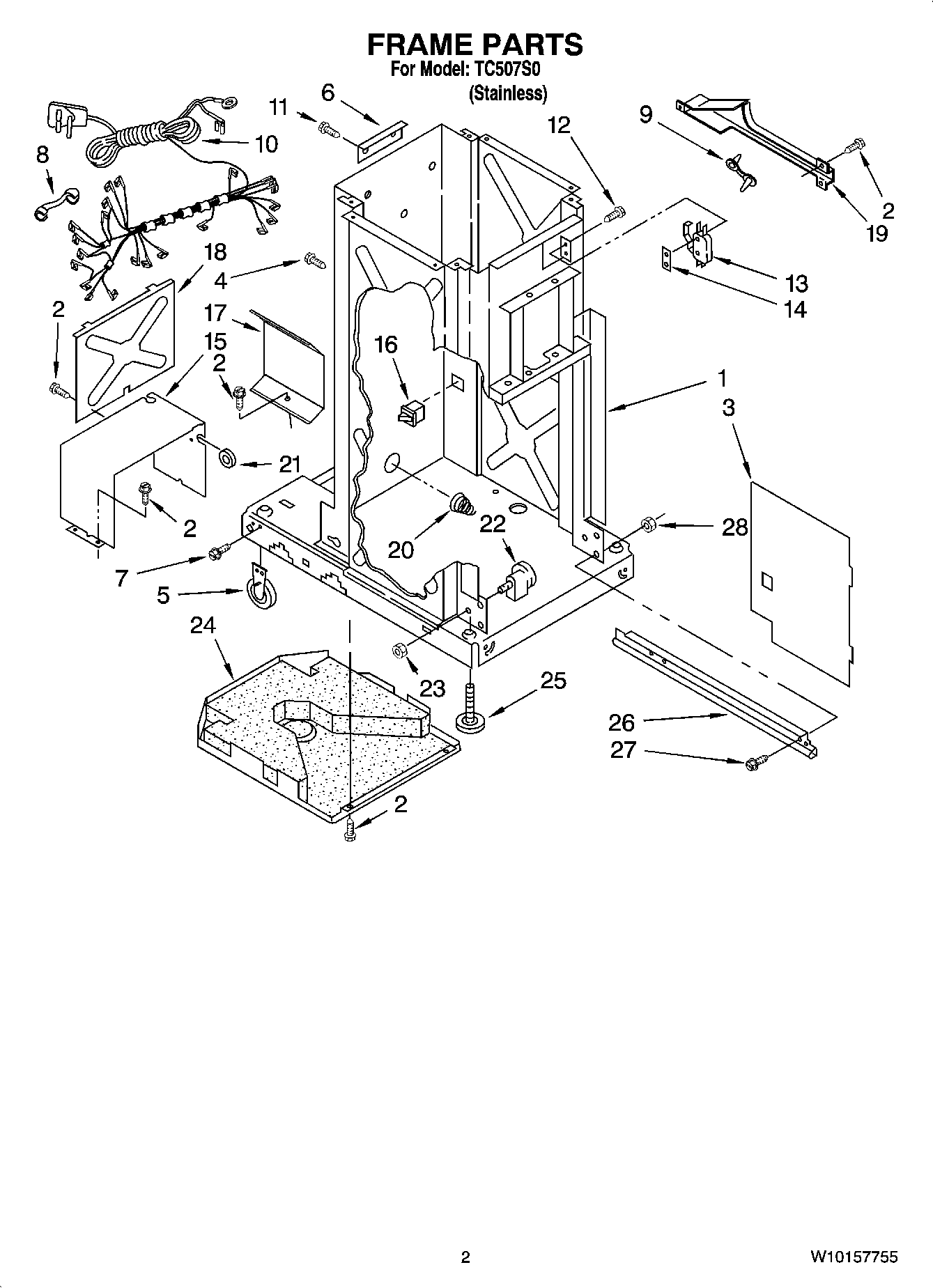

TC507S0 02 – FRAME PARTS

Products

Position	Product
3	MAY 9870444
4	MAY 777070
5	Wheel Leveler
6	MAY 775668
7	Screw, 10-24 x 3/8
8	Bushing, Power Cord
9	MAY 777035
10	Harness, Wiring (Includes Power Cord)
11	MAY 489478
12	Screw, 6-20 x 1“
13	MAY 777811
14	Nut, Plate
15	MAY 780434
16	MAY 4149377
17	Shield, Slide Track
18	MAY 608009
19	MAY 4149659
20	MAY 777180
21	MAY 776118
22	Bearing, Roller
23	Locknut, 3/8-24
24	MAY 9870167
25	Foot, Leveler
26	Slide, Frame (L.H.)
26	Slide, Frame (R.H.)
27	Screw, 6-32 x 3/8
28	Nut, 6-32
