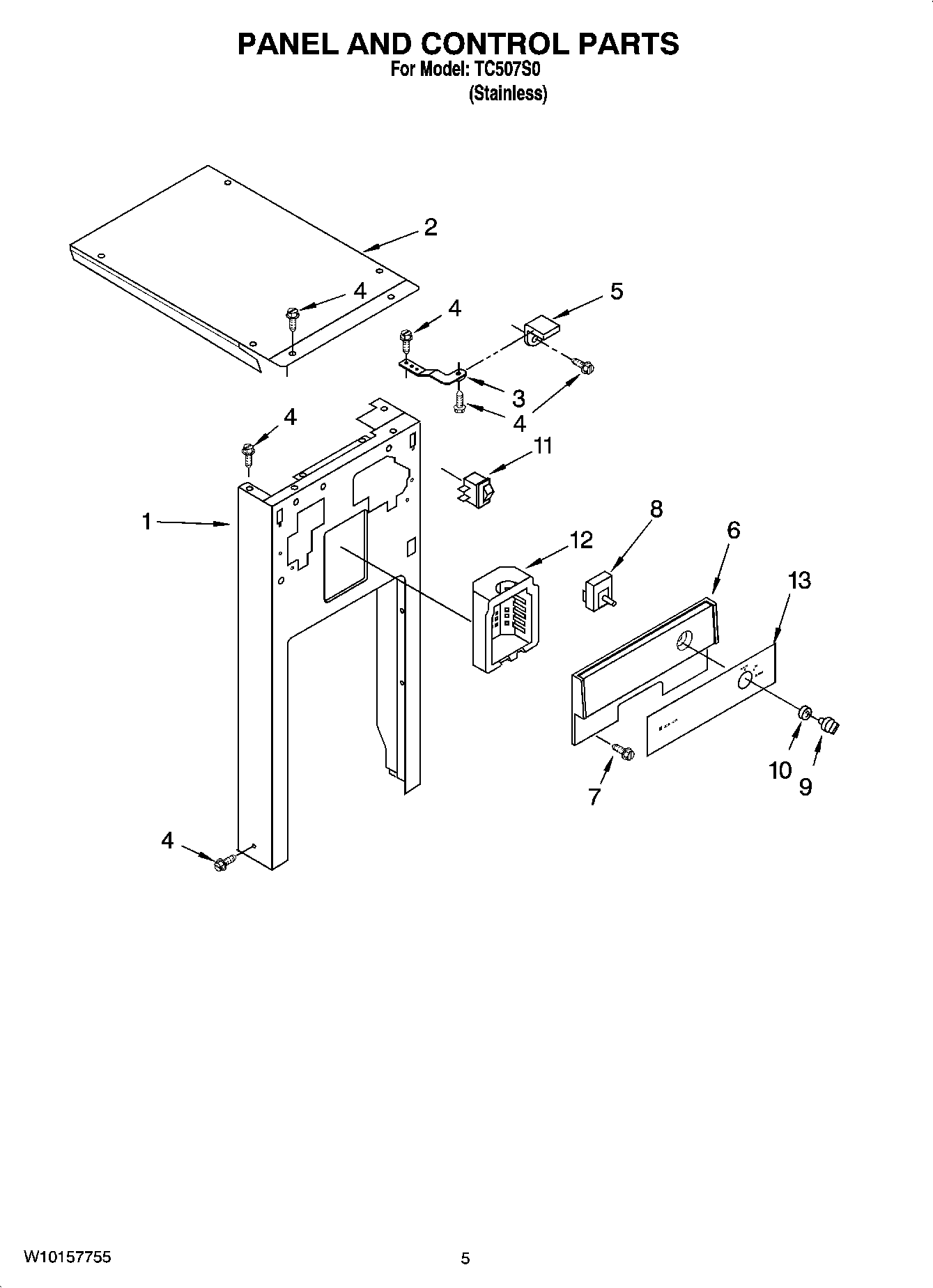

TC507S0 05 – PANEL AND CONTROL PARTS

Products

Position	Product
1	MAY 9871072
2	Top, Cabinet
3	MAY 9871993
4	MAY 489478
5	Bracket, Mounting (Alternate)
6	Console (Black)
7	Screw, 6-20 x 3/8
8	MAY 608824
9	Knob, Rotary Switch (Black)
10	Nut, Switch
11	Switch, Drawer Tilt (Black)
12	Compartment, Deodorant (Black)
13	MAY 9871845
