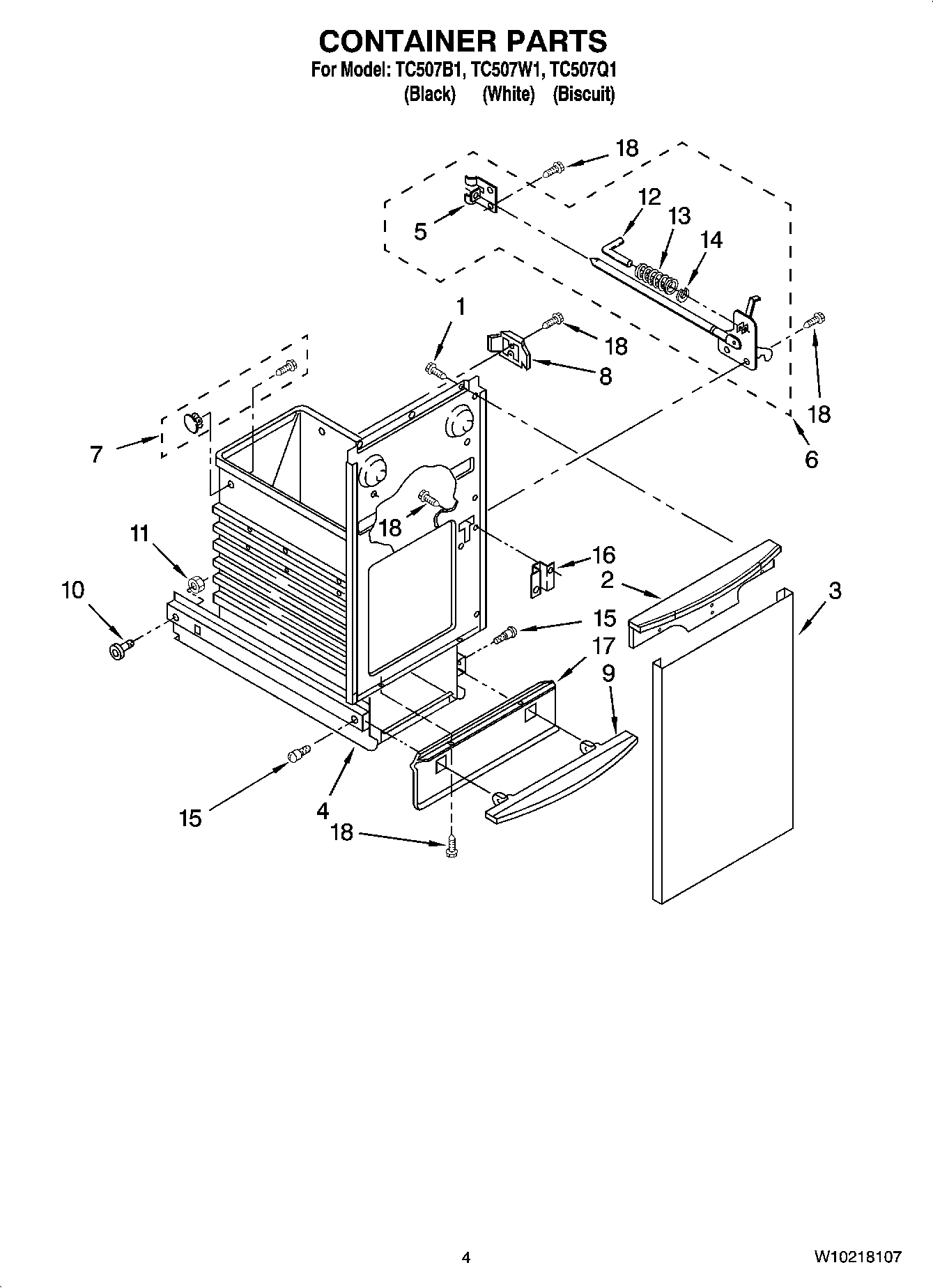

TC507W1 04 – CONTAINER PARTSadmin2025-04-26T08:52:32+00:00TC507W1 04 – CONTAINER PARTS
Products
| Position | Product |
|---|
| 1 | MAY 3400888 |
| 2 | MAY 9871573 |
| 2 | Handle, Container (Black) |
| 2 | MAY 9871235 |
| 3 | Panel, Container (Black) |
| 3 | Panel, Container (White) |
| 3 | Panel, Container (Biscuit) |
| 4 | MAY 9870934 |
| 5 | MAY 776395 |
| 6 | MAY 9870066 |
| 7 | MAY 4147703 |
| 8 | Actuator, Safety Switch |
| 9 | MAY 9871577 |
| 9 | MAY 9871031 |
| 9 | Pedal, Foot (Black) |
| 10 | Container, Bearing Roller |
| 11 | Locknut, 3/8-24 |
| 12 | Pin, Latch |
| 13 | MAY 775736 |
| 14 | RING, ‘‘E’’ |
| 15 | Screw, Shoulder 8-16 x 7/16 |
| 16 | MAY 775665 |
| 17 | Guard, Toe Plate (Biscuit) |
| 17 | Guard, Toe Plate (White) |
| 17 | GUARD, TOE PLATE (BLK) |
| 18 | Screw, 8-18 x 3/8 |
