TC607S0 02 – FRAME PARTS – Aparts

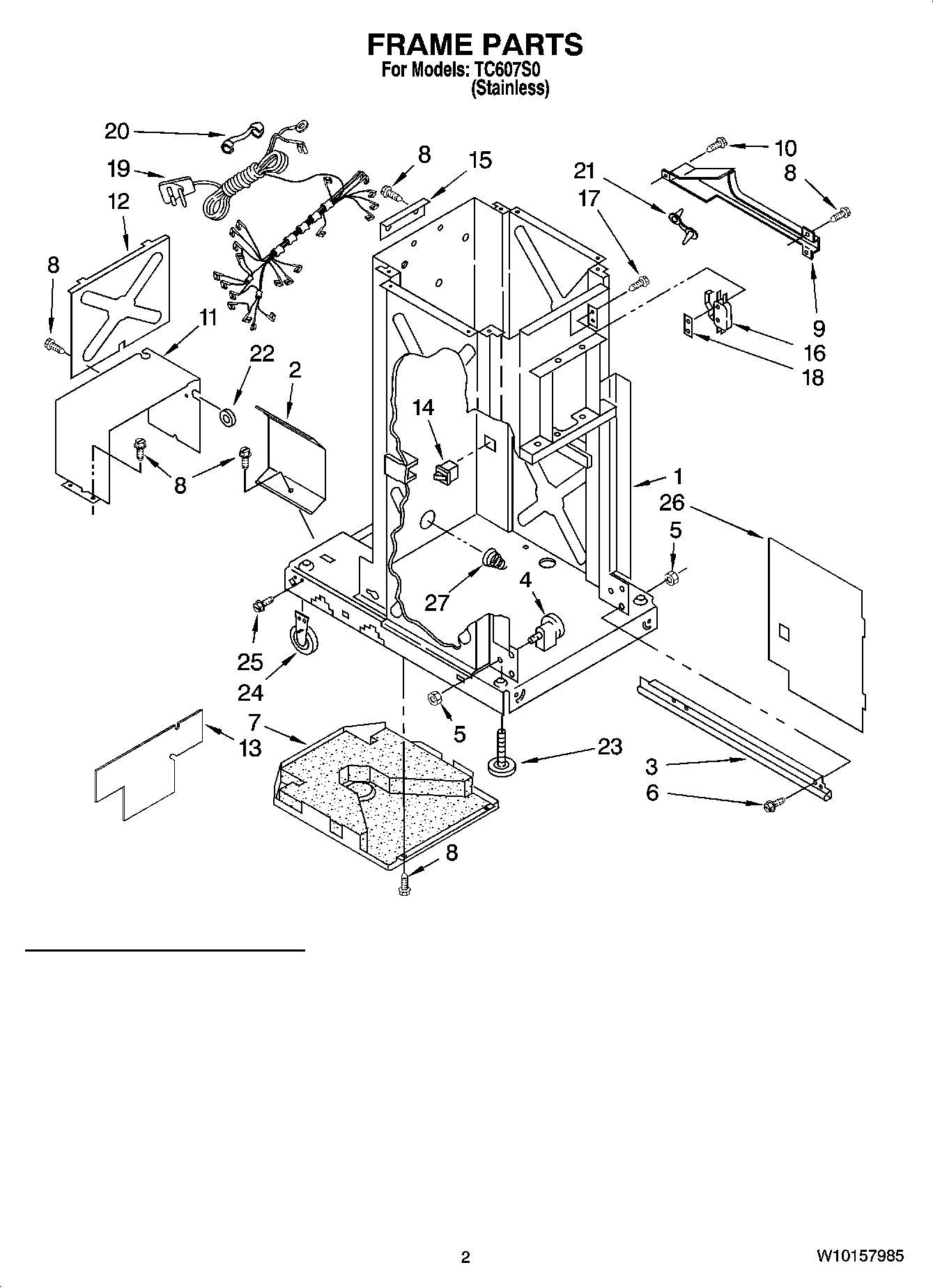

TC607S0 02 – FRAME PARTS

Products

Position	Product
2	Shield, Slide Track
3	Slide, Frame (R.H.)
3	Slide, Frame (L.H.)
4	Bearing, Roller
5	Locknut, 3/8-24
6	Screw, 6-32 x 3/8
7	MAY 9870167
8	MAY 489478
9	MAY 4149659
10	MAY 777070
11	MAY 780434
12	MAY 608009
13	MAY 9872154
14	MAY 4149377
15	MAY 775668
16	MAY 777811
17	Screw, 6-20 x 1``
18	Nut, Plate
19	Wiring Harness & Power Cord
20	Bushing, Power Cord
21	MAY 777035
22	MAY 776118
23	Foot, Leveler
24	Wheel Leveler
25	Screw, 10-24 x 3/8
26	MAY 9870444
27	MAY 777180
