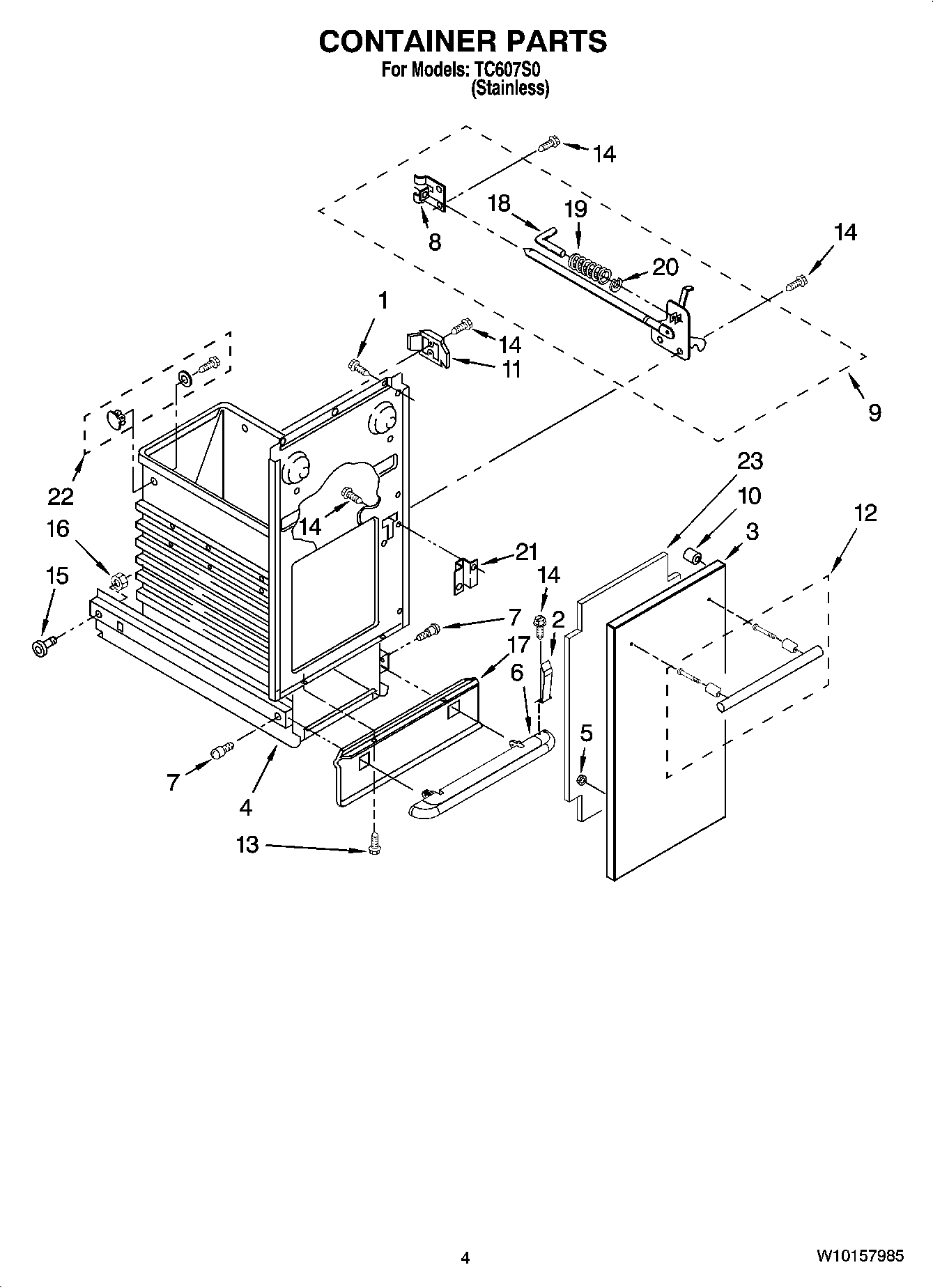

TC607S0 04 – CONTAINER PARTS

TC607S0 04 – CONTAINER PARTS

Written by

in

TC607S0 04 – CONTAINER PARTS

Products

PositionProduct
1Screw
2MAY 9871976
3MAY W10122180
4MAY 9870996
5MAY 9872369
6MAY 9871989B
7Screw, Shoulder 8-16 x 7/16
8MAY 776395
9MAY 9870066
10Spacer
11Actuator, Safety Switch
12MAY W10122161
13Screw, 8-18 x 3/8
14MAY 489478
15Container, Bearing Roller
16Locknut, 3/8-24
17GUARD, TOE PLATE (BLK)
18Pin, Latch
19MAY 775736
20RING, ‘‘E’’
21MAY 775665
22MAY 4147703
23Insulation, Sound
