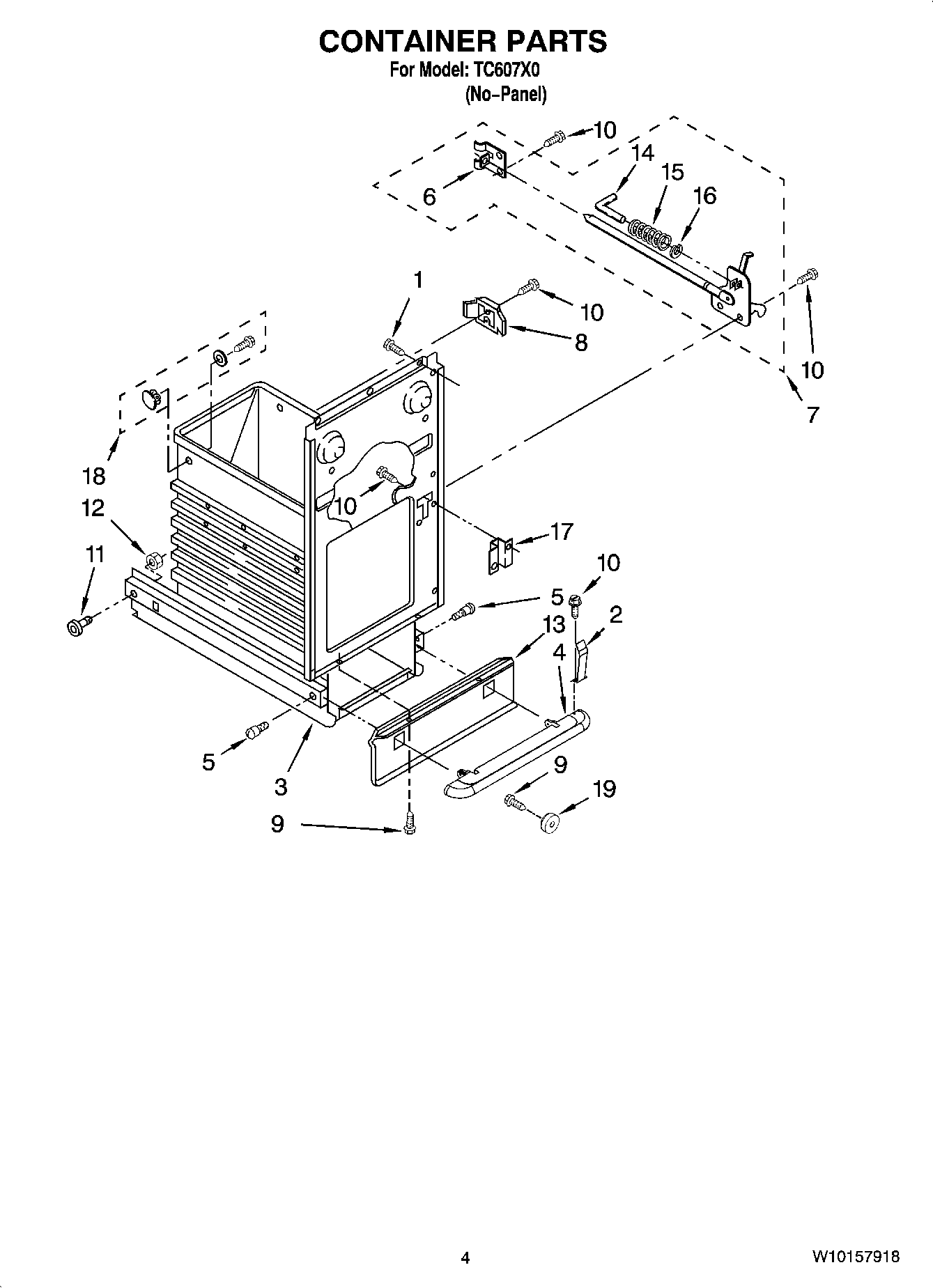

TC607X0 04 – CONTAINER PARTS

TC607X0 04 – CONTAINER PARTS

Written by

in

TC607X0 04 – CONTAINER PARTS

Products

PositionProduct
1Screw
2MAY 9871976
3MAY 9870996
4MAY 9871989B
5Screw, Shoulder 8-16 x 7/16
6MAY 776395
7MAY 9870066
8Actuator, Safety Switch
9Screw, 8-18 x 3/8
10MAY 489478
11Container, Bearing Roller
12Locknut, 3/8-24
13GUARD, TOE PLATE (BLK)
14Pin, Latch
15MAY 775736
16RING, ‘‘E’’
17MAY 775665
18MAY 4147703
19MAY 9872369
