TC607X4 03 – FRAME PARTS

TC607X4 03 – FRAME PARTS

Written by

in

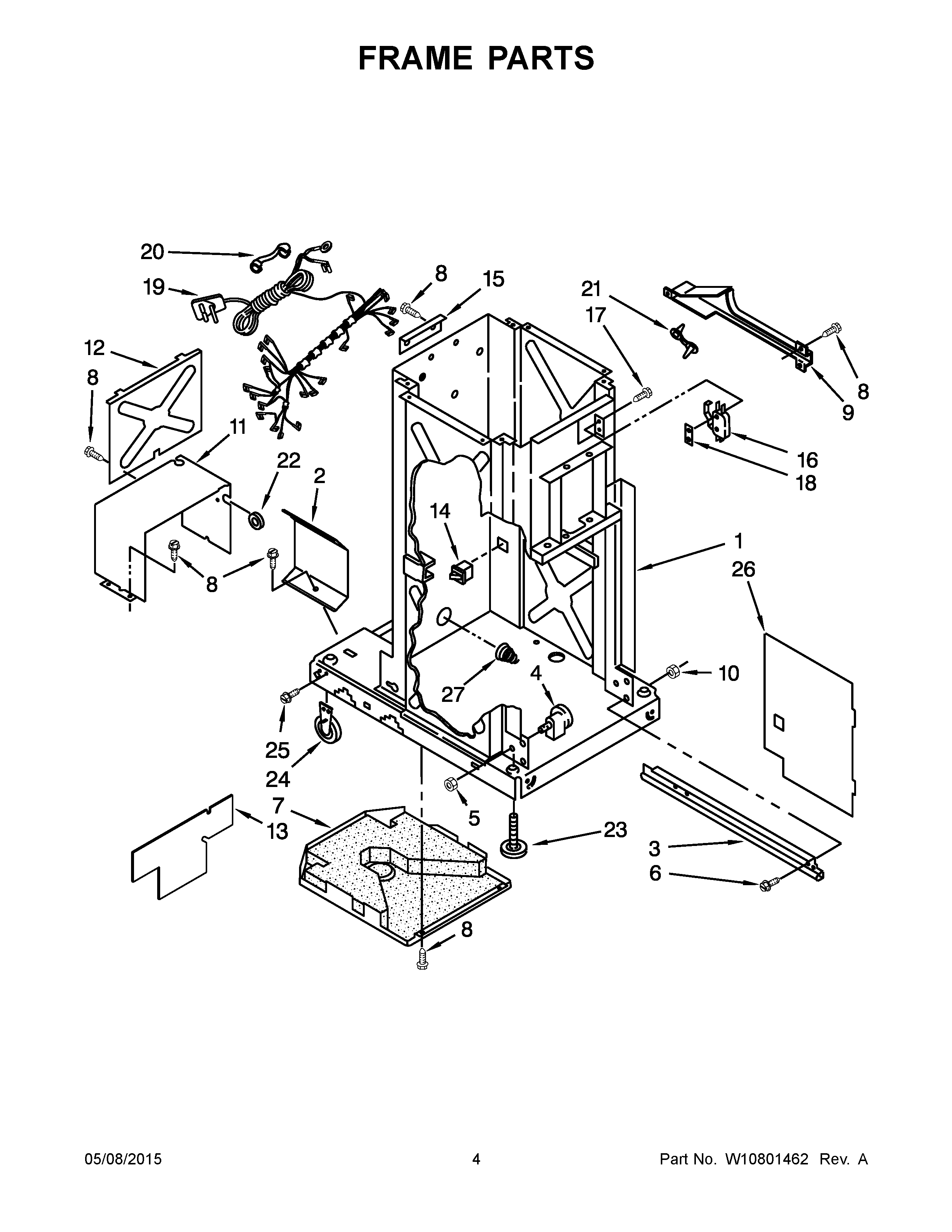

TC607X4 03 – FRAME PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Shield, Slide Track
3Slide, Frame (R.H.)
3ASlide, Frame (L.H.)
4Bearing, Roller
5Locknut, 3/8-24
6Screw, 6-32 x 3/8
7MAY 9870167
8SCREW, 8 X 1/2
9MAY 4149659
10Nut, 6-32
11MAY 780434
12MAY 608009
13MAY 9872154
14MAY 4149377
15MAY 775668
16MAY 777811
17Screw, 6-20 x 1“
18Nut, Plate
19MAY W10279448
20Bushing, Power Cord
21MAY 777035
22MAY 776118
23Foot, Leveler
24Wheel Leveler
25Screw, 10-24 x 3/8
26MAY 9870444
27MAY 777180
