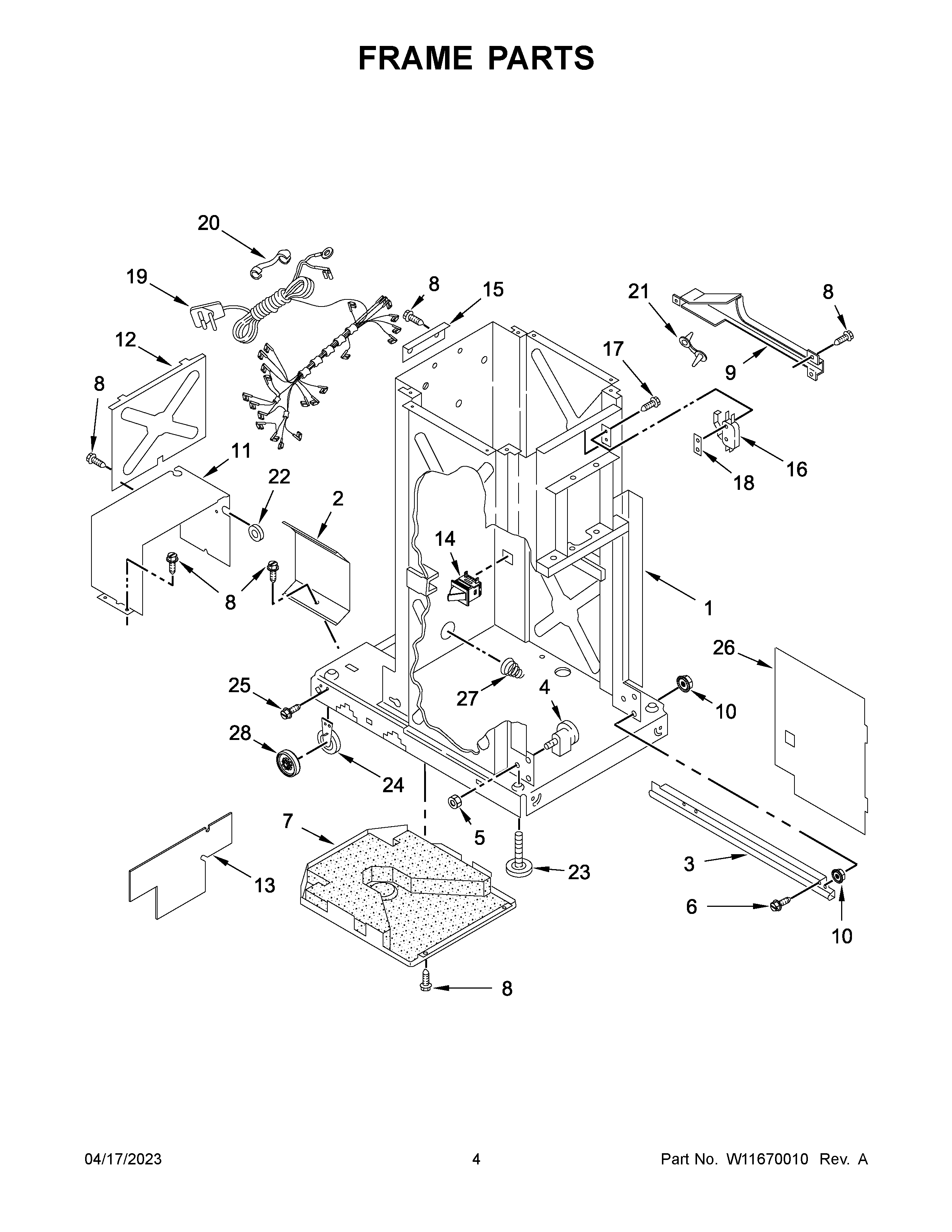

| 1 | CABINET (NOT A SERVICEABLE PART) |
| 2 | 9870867 Whirlpool Shield |
| 3A | WP9870975 Whirlpool Compactor Slide |
| 3 | SLIDE |
| 4 | 882688 Whirlpool Compactor Bearing |
| 5 | WP776356 Whirlpool Compactor Nut |
| 6 | WP486754 Whirlpool Compactor Screw |
| 7 | WP780437 Whirlpool Compactor Bottom Pan |
| 8 | WP489478 Whirlpool Refrigerator Screw |
| 9 | 4149659 Whirlpool Shield Assembly |
| 10 | NUT |
| 11 | 780434 Whirlpool Motor Cover |
| 12 | Plate, Motor Cover |
| 13 | W11688705 Whirlpool Insulation |
| 14 | W11243179 Whirlpool Compactor Safety Switch |
| 15 | Angle, Top Bracket |
| 16 | WP777811 Whirlpool Compactor Directional Switch |
| 17 | 777849 Whirlpool Compactor Screw |
| 18 | Plate, Nut |
| 19 | W10830603 Whirlpool Compactor Wire Harness |
| 20 | Bushing, Cord |
| 21 | Clamp, Wire |
| 22 | Grommet, Motor Cover |
| 23 | WPW10001130 Whirlpool Leveling Leg |
| 24 | W11023674 Whirlpool Compactor Leveling Wheel |
| 25 | WP3351614 Whirlpool Screw |
| 26 | WP9870444 Whirlpool Compactor Inner Panel |
| 27 | WP777180 Whirlpool Compactor Spring |
| 28 | W11672206 Whirlpool Leveling Wheel |
