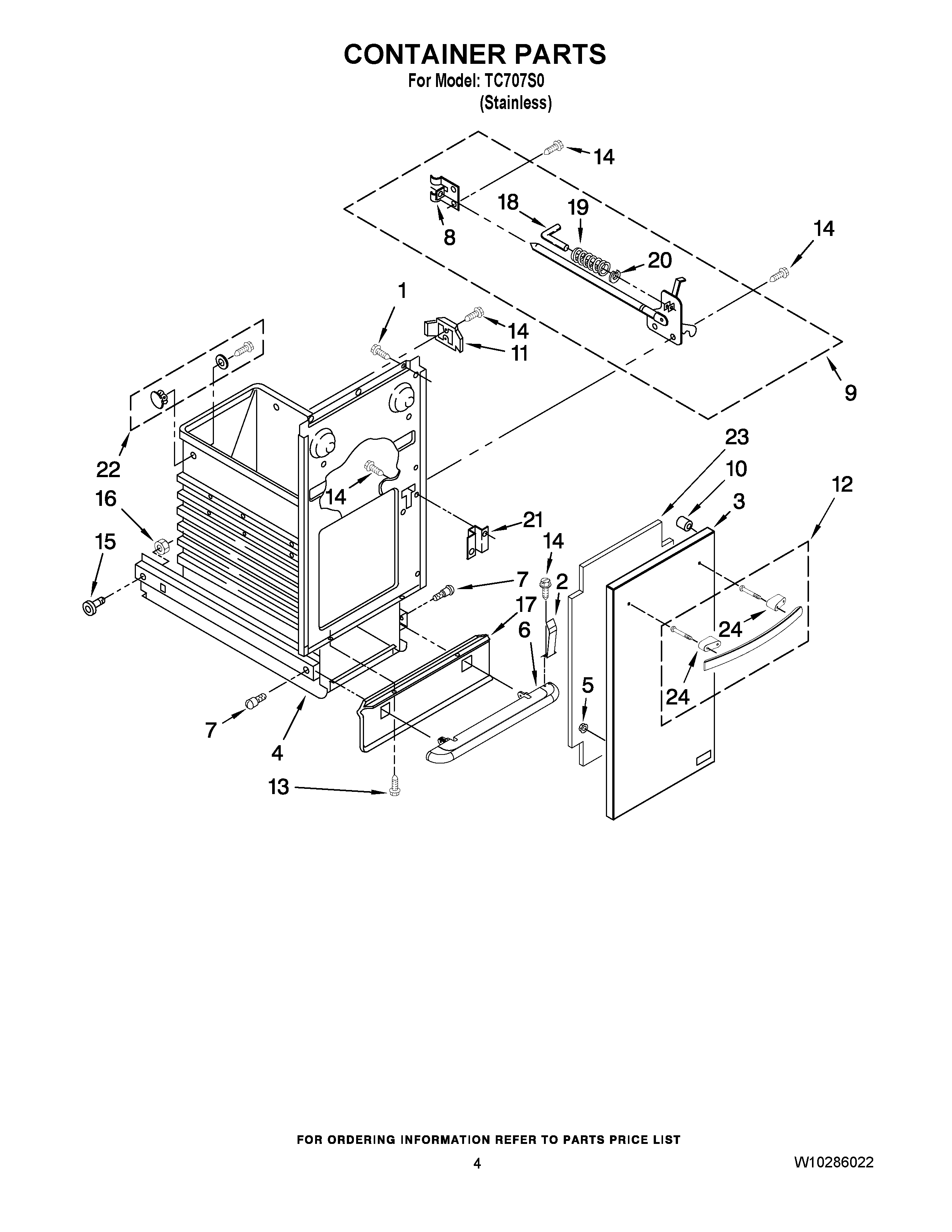

TC707S0 04 – CONTAINER PARTS

TC707S0 04 – CONTAINER PARTS

Written by

in

TC707S0 04 – CONTAINER PARTS

Products

PositionProduct
1Screw
2MAY 9871976
3MAY W10190374
4MAY 9870934
5MAY 9872369
6MAY 9871989B
7Screw, Shoulder 8-16 x 7/16
8MAY 776395
9MAY 9870066
10Spacer
11Actuator, Safety Switch
12MAY W10222164
13Screw, 8-18 x 3/8
14SCREW, 8 X 1/2
15Container, Bearing Roller
16Locknut, 3/8-24
17GUARD, TOE PLATE (BLK)
18Pin, Latch
19MAY 775736
20RING, ‘‘E’’
21MAY 775665
22MAY 4147703
23Insulation, Sound
24STANDOFF, HANDLE
