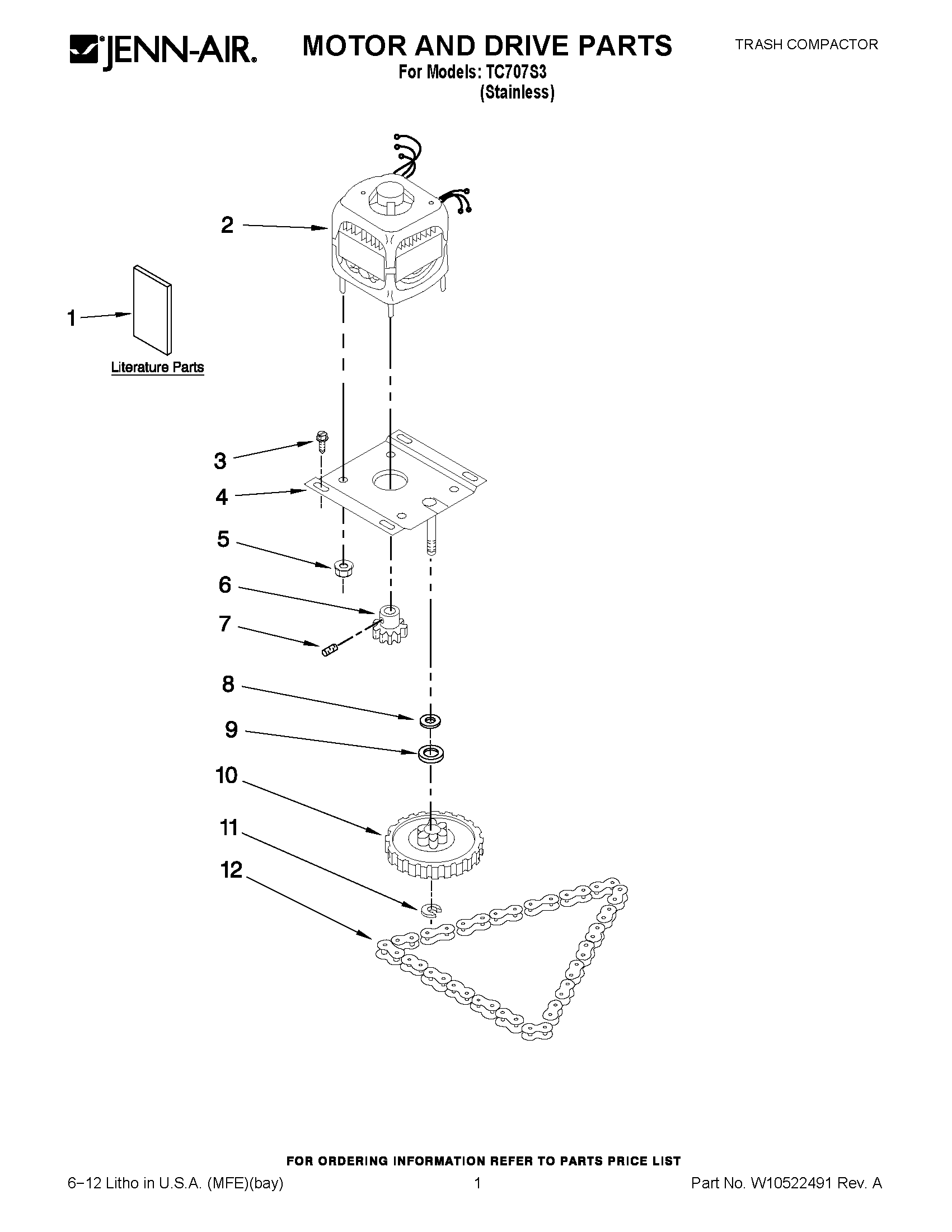

TC707S3 01 – MOTOR AND DRIVE PARTS

Products

Position	Product
NI	MAY 9870118
1	MAY W10318872
1	MAY W10242571
1	MAY W10415490
2	MAY W10318887
3	Screw, 1/4-20 x 1/2
4	Plate, Motor
5	LOCKNUT
6	MAY 4149667
7	Pin, Drive Gear
8	MAY 776035
9	MAY 297462
10	MAY 777124
11	MAY 776036
12	MAY 780477
